97C02T - Grayhill
Switch DIP ON OFF SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
Technical Details
| Actuator Length | 0m |
| Actuator Material | Nylon, Thermoplastic |
| Body Material | Nylon, Polyamide |
| Capacitance | 5pF |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Current Rating | 25mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2007-04-30 |
| Lead/Base Style | Gull Wing |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Material | Nylon, Thermoplastic |
| Max Current Rating | 25mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Washable | No |
| Width | 4.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

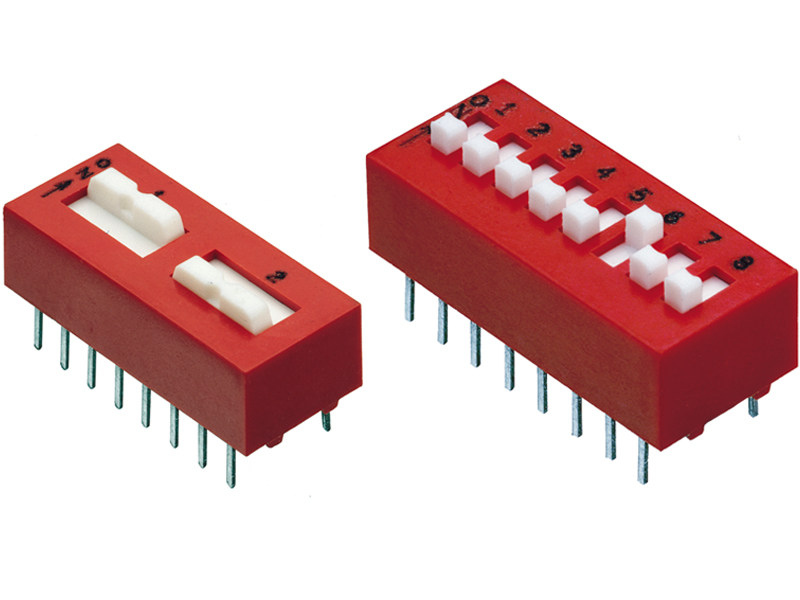

Images
