97R02SRT - Grayhill
Switch DIP ON OFF SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycle 1.27mm SMD T/R
Technical Details
| Body Material | Nylon, Polyamide |
| Contact Plating | Gold |
| Country of Origin | Mainland China |
| Current Rating | 25mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.44mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.65 |
| Introduction Date | 2007-04-30 |
| Length | 4.5mm |
| Lifecycle Status | Production |
| Max Current Rating | 25mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | TOP TAPE SEALED |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Washable | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

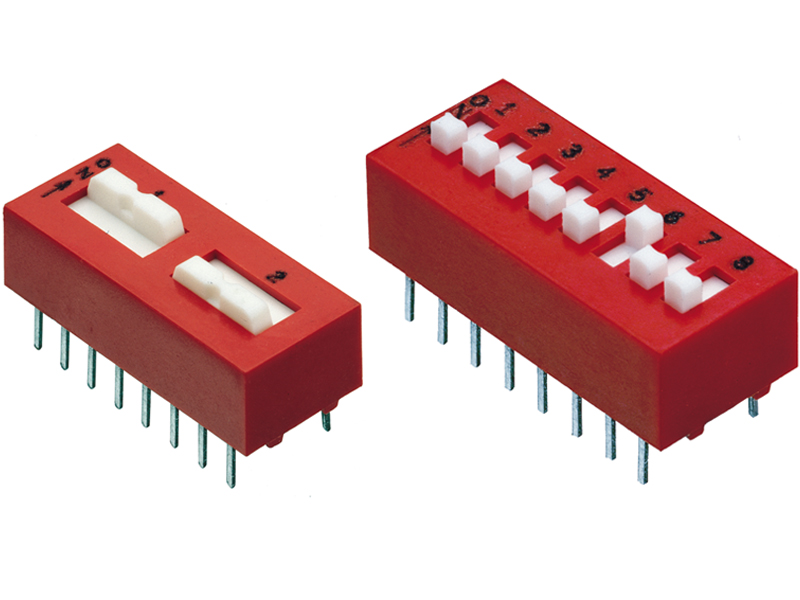

Images
