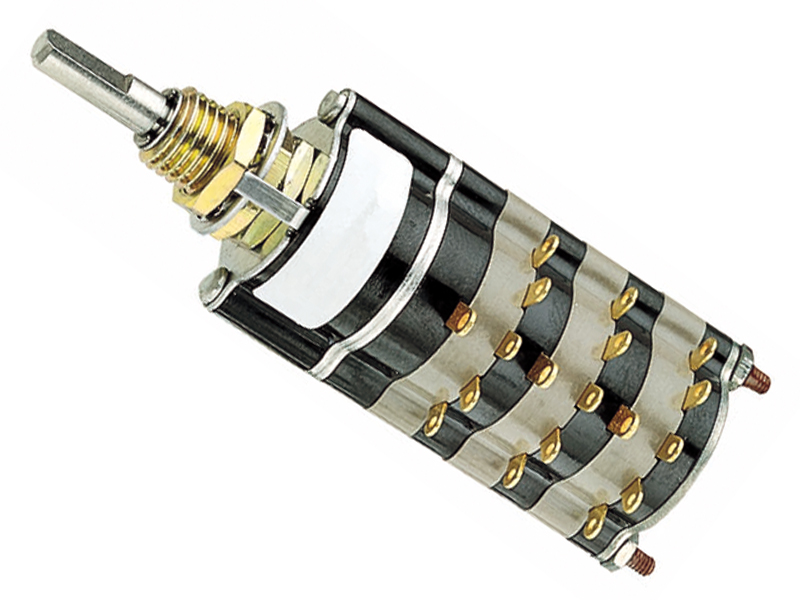

M3786/13-0026 - Grayhill
Switch Rotary SP4T 4 Flatted Shaft Solder Lug 0.25A 115VAC 28VDC
Technical Details
| Actuator Length | 9.525mm |
| Contact Current Rating | 500mA |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 115V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 39.27mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.20 |
| Index Angle | 30° |
| Insulation Resistance | 10MΩ |
| Length | 19.43mm |
| Lifecycle Status | Production |
| Max Current Rating | 500mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 50kcycles |
| Mount | Panel |
| Number of Circuits | 2 |
| Number of Positions | 4 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Sealable | EXPLOSION PROOF |
| Termination | Solder |
| Throw Configuration | SP4T |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images
Sager Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Sager Electronics |
US: 0
|
$ | ||||||||
| Mouser |
US: 0
|
$ | 100.19 | 82.97 | 78.67 | 69.54 | 69.54 | 69.54 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 48
|
$ | 764.44 | 764.44 | 764.44 | 764.44 | 764.44 | 764.44 | ||
