Technical Details
| Approvals | CSA, UL |
| Country of Origin | Canada |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 60.198mm |
| Height - Seated (Max) | 60.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8504.31.40.35 |
| Introduction Date | 2000-08-14 |
| Isolation Voltage | 2000Vrms |
| Length | 73.152mm |
| Lifecycle Status | Production |
| Max Output Current | 1A |
| Max Power Dissipation | 12W |
| Mount | Chassis Mount, Panel |
| Output Current | 500mA |
| Output Voltage | 24V |
| Power Rating | 12W |
| Primary Winding(s) | Dual |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Secondary Winding(s) | Dual |
| Termination | Wire Leads |
| Weight | 453.59237g |
| Width | 48.26mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

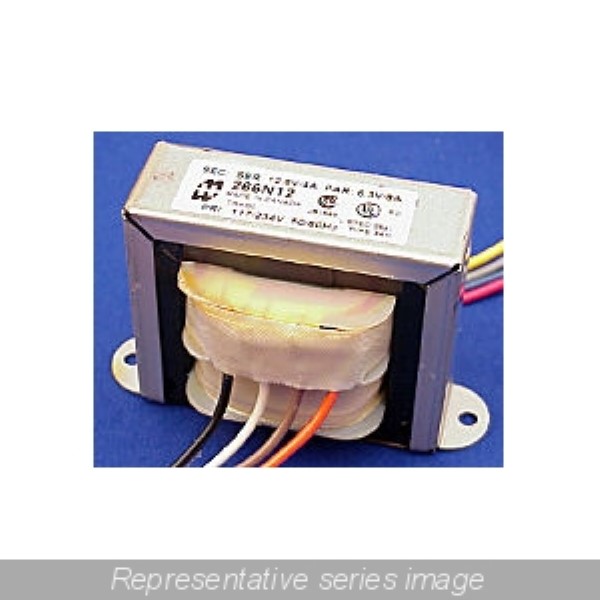

Images
