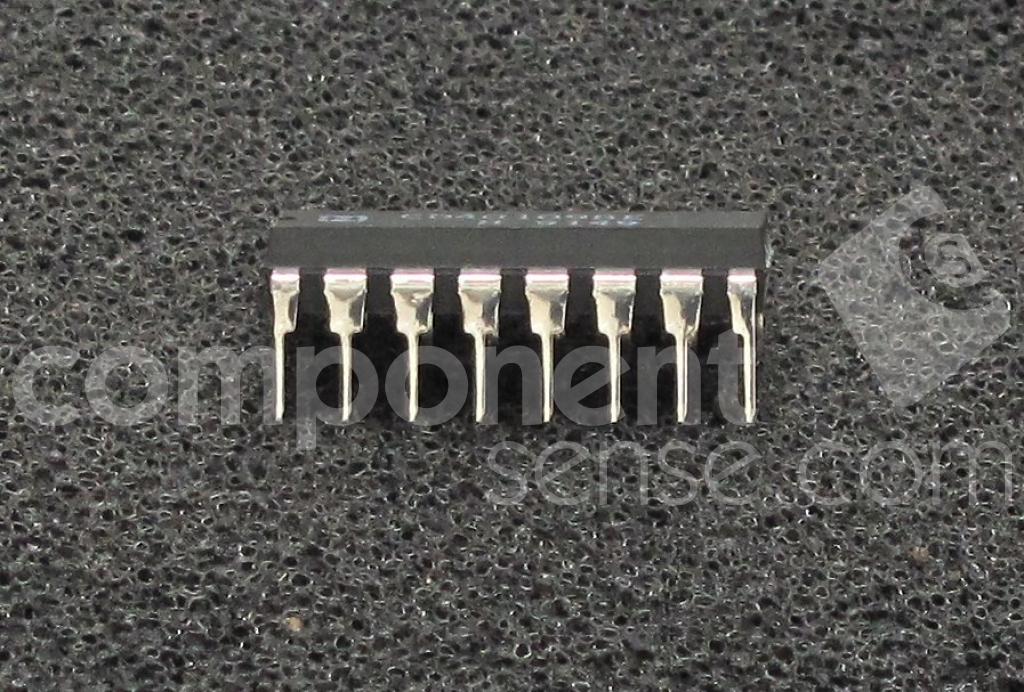

CD40109BE - Harris
Bus Driver, 4000/14000/40000 Series, 4-Func, 1-Bit, True Output, CMOS, PDIP16
Technical Details
| Case/Package | DIP |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Number of Bits | 1 |
| Number of Circuits | 4 |
| Number of Ports | 2 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 5V |
| RoHS | Non-Compliant |
| Temperature Grade | Military |
Compliance
RoHS : Unconfirmed
