09150000121 - HARTING Elektronik

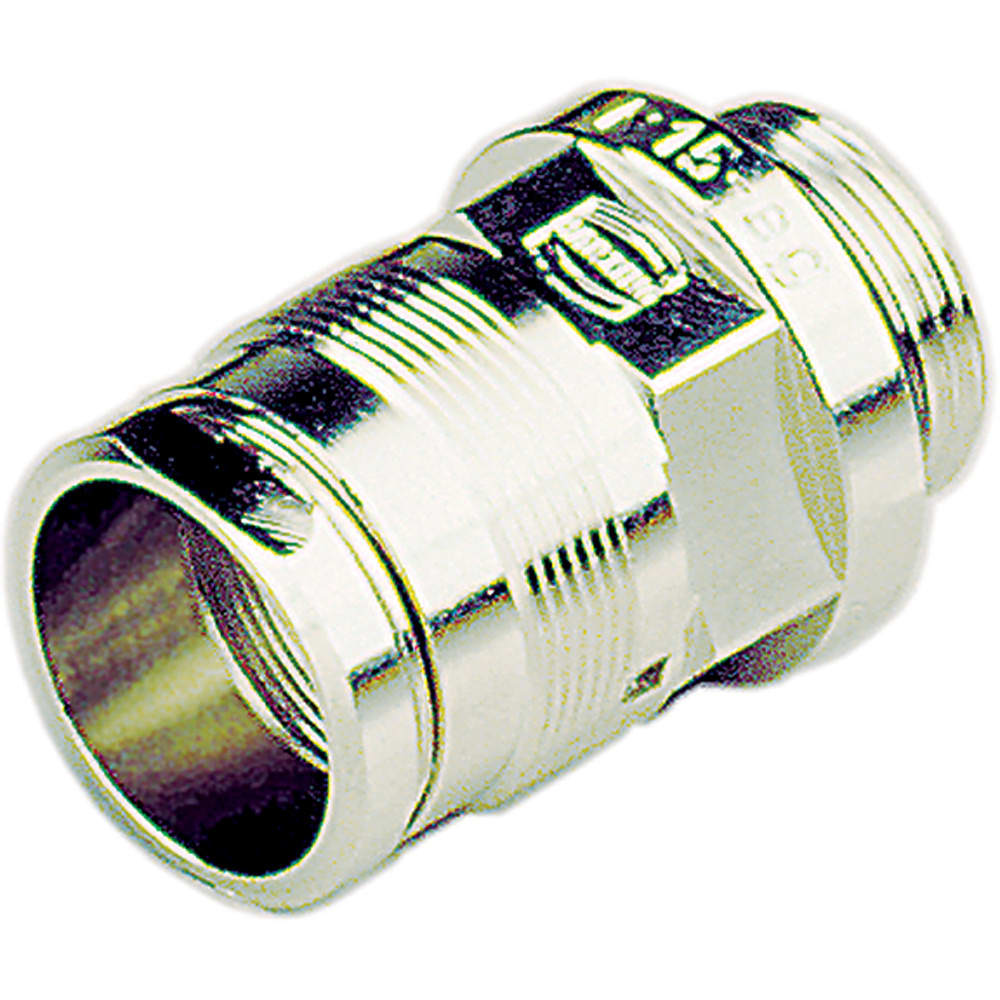

Screw-in housing, aluminum, straight, IP65 for series R 15, 09150000121
Technical Details
| Body Material | Aluminium |
| Case/Package | Metal |
| China RoHS | Compliant |
| Connector Type | Circular |
| Contact Plating | Silver |
| Contact Resistance | 3mΩ |
| Current Rating | 10A |
| Fastening Type | Threaded |
| Housing Material | Aluminium |
| Insulation Resistance | 10GΩ |
| Lifecycle Status | Production |
| Material | Aluminium |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Panel |
| Number of Poles | 7 |
| Ratings | Dust Tight, IP65, Water Resistant |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Shell Finish | Aluminium |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 300V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
