Connectors > Headers and Wire Housings

M20-8770346 - Harwin

2.54MM M20 SMT Connectors 03 Sil Vertical SMT Header Tin

Case/Package	SIL
Color	Black
Connector Type	Male Pin
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	5.7912mm
Contact Plating	Tin
Contact Resistance	20mΩ
Country of Origin	Taiwan
Current Rating	3A
Dielectric Material	Polyamide
Export Control Classification Number (ECCN) Code	EAR99
Gender	Male
Height	8.69mm
Harmonized Tariff Schedule (HTS) Code	8536.69.40.40
Insulation Resistance	1GΩ
Introduction Date	2005-06-27
Lead Pitch	2.54mm
Lifecycle Status	Production
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	3
Number of Pins	3
Number of Positions	3
Number of Rows	2
Orientation	Straight
Pitch	2.54mm
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	3.302mm
Terminal Pitch	2.54mm
Termination	Solder
Voltage Rating	250V

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Production

Symbol

‹ ›

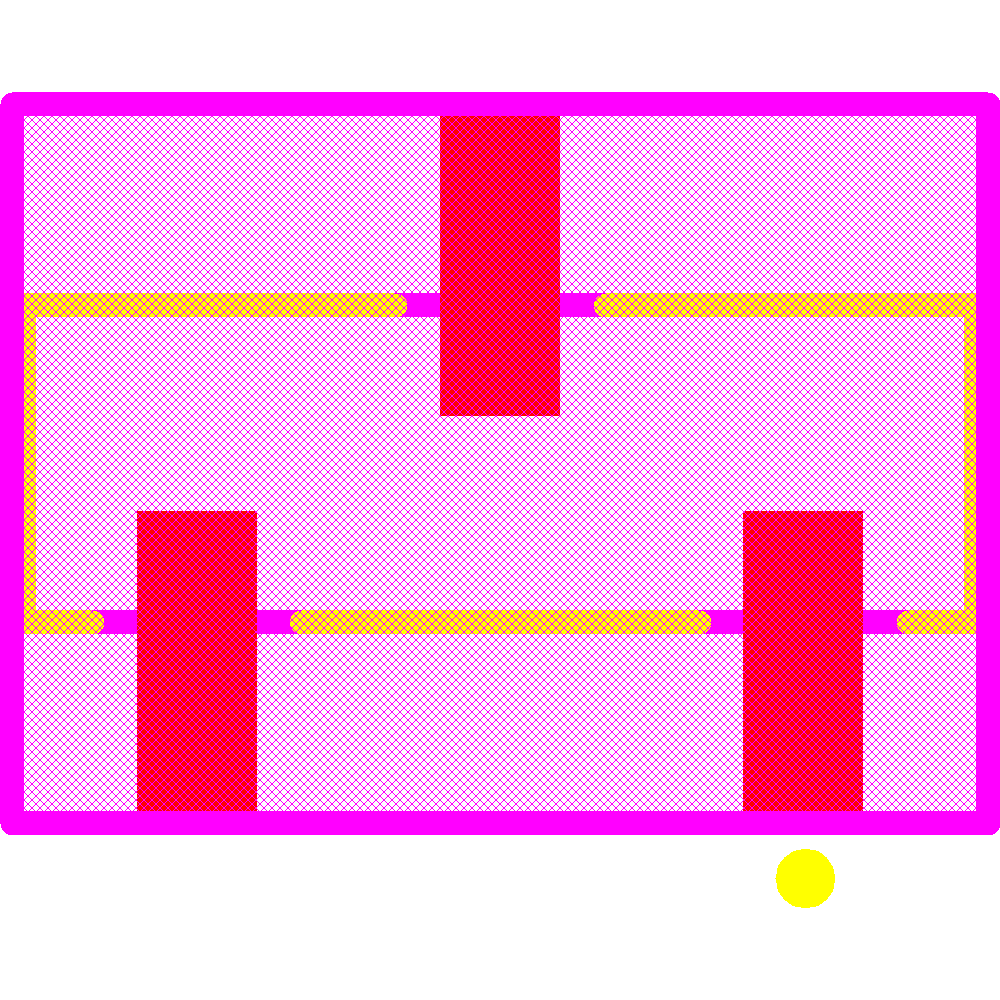

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Samtec	TSM-103-01-L-SV	Production
Samtec	TSM-103-01-T-SV	Production
Harwin	M20-8770346R	Obsolete
Samtec	TSM-103-01-SM-SV	Production
Samtec	TSM-103-01-G-SV-TR	Production
Samtec	TSM-103-01-G-SV-P-TR	Production
Samtec	TSM-103-01-T-SV-TR	Production
Samtec	TSM-103-01-L-SV-TR	Production
Harwin	M20-8770342P	Obsolete
Samtec	TSM-103-01-L-SV-P-TR	Production
