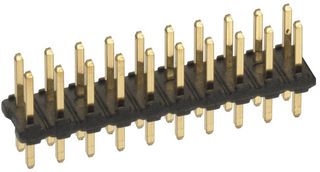

M22-2520405 - Harwin
M22 ROHS3Compliant COMMERCIAL UL Connector Header, Cuttable 300Cycles 20mOhm -40C~105C 1A
Technical Details
| Color | Black |
| Connector Type | Male Pin |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Mating Length | 3.5052mm |
| Contact Plating | Gold |
| Contact Resistance | 20mΩ |
| Country of Origin | Taiwan |
| Current Rating | 1A |
| Depth | 4mm |
| Dielectric Material | Polyamide |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Gender | Male |
| Housing Color | Black |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1998-10-20 |
| Length | 8mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 2.0066mm |
| Terminal Pitch | 2mm |
| Termination | Solder |
| Voltage Rating | 650V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
