M50-2000005 - Harwin

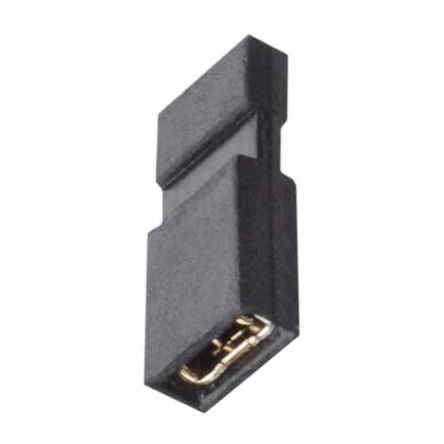

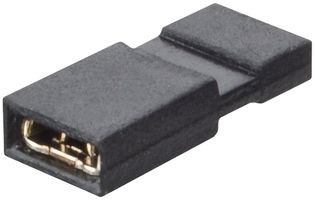

1.27mm (0.05) Pitch Closed Top Jumper Socket with Handle, black, gold"
Technical Details
| Color | Black |
| Contact Material | Gold, Nickel |
| Contact Plating | Gold |
| Contact Resistance | 20mΩ |
| Current Rating | 1A |
| Depth | 5.5mm |
| Flammability Rating | UL94 V-0 |
| Height | 5.62mm |
| Housing Color | Blue |
| Housing Material | Nylon |
| Insulation Resistance | 1Ω |
| Length | 2.5mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 2 |
| Number of Pins | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Pitch | 1.27mm |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating | 500V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
RS
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| UnikeyIC |
SG: 3925
|
$ | 0.2909 | 0.2909 | 0.2785 | 0.2785 | ||||
| LCSC |
CN: 27
|
$ | 0.451 | 0.4417 | 0.4355 | 0.4293 | 0.4293 | 0.4293 | ||
