Technical Details
| Color | Black |
| Connector Type | Male Pin, Plug |
| Contact Gender | Male |
| Contact Material | Brass, Bronze, Copper |
| Contact Plating | Gold |
| Contact Resistance | 25mΩ |
| Country of Origin | UK |
| Current Rating | 3A |
| Depth | 5.8mm |
| Dielectric Material | Polyamide |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2005-08-02 |
| Lead Pitch | 2mm |
| Length | 11.6mm |
| Lifecycle Status | Production |
| Material | Glass, Thermoplastic |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 120V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2mm |
| Plating Thickness | 762nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 2.0066mm |
| Terminal Pitch | 2mm |
| Termination | Solder |
| Voltage Rating | 120V |
| Voltage Rating (DC) | 120V |
| Wire/Cable Gauge | 22AWG |
| Working Voltage | 120V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

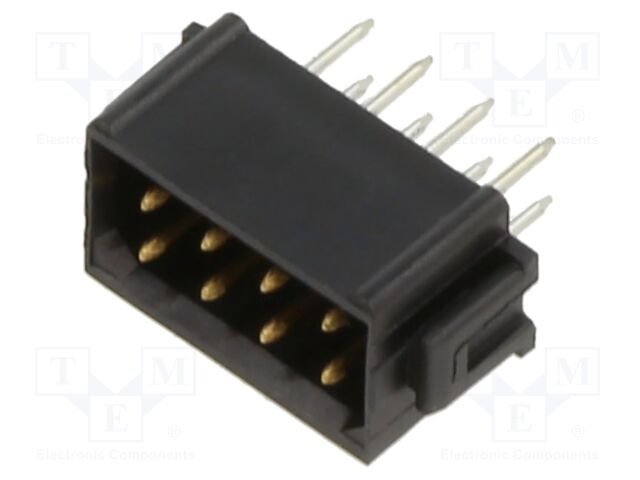

Images
