DF11-8DP-2DSA(08) - HIROSE ELECTRIC
Conn Shrouded Header (4 Sides) HDR 8 POS 2mm Solder ST Top Entry Thru-Hole Bag
Technical Details
| Color | Black |
| Connector Type | Header |
| Contact Gender | Male |
| Contact Material | Tin |
| Contact Mating Length | 2.9972mm |
| Contact Pitch | 2mm |
| Contact Plating | Tin |
| Contact Resistance | 30mΩ |
| Contact Voltage Rating (AC) | 250V |
| Contact Voltage Rating (DC) | 250V |
| Country of Origin | Japan |
| Current Rating | 2A |
| Depth | 5mm |
| Dielectric Material | Polyamide |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fastening Type | Detent |
| Gender | Male |
| Height | 6.6mm |
| Housing Color | Black |
| Housing Material | Polyamide |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2003-05-06 |
| Lead Free | Lead Free |
| Length | 10mm |
| Lifecycle Status | Production |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Force | 4.3924N |
| Orientation | Straight |
| Pitch | 2mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 2mm |
| Terminal Pitch | 2mm |
| Termination | Solder |
| Voltage Rating | 250V |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

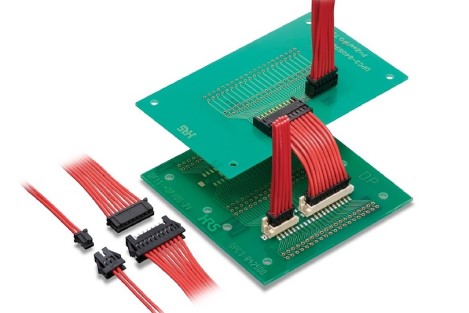

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| HIROSE ELECTRIC | Obsolete | ||
| HIROSE ELECTRIC | Obsolete | ||
| HIROSE ELECTRIC | Obsolete | ||
| HIROSE ELECTRIC | Production | ||
| HIROSE ELECTRIC | Production | ||
| Samtec | Unknown | ||
| Samtec | Unknown | ||
| Samtec | Unknown | ||
| Samtec | Unknown | ||
| 3M | Obsolete |
