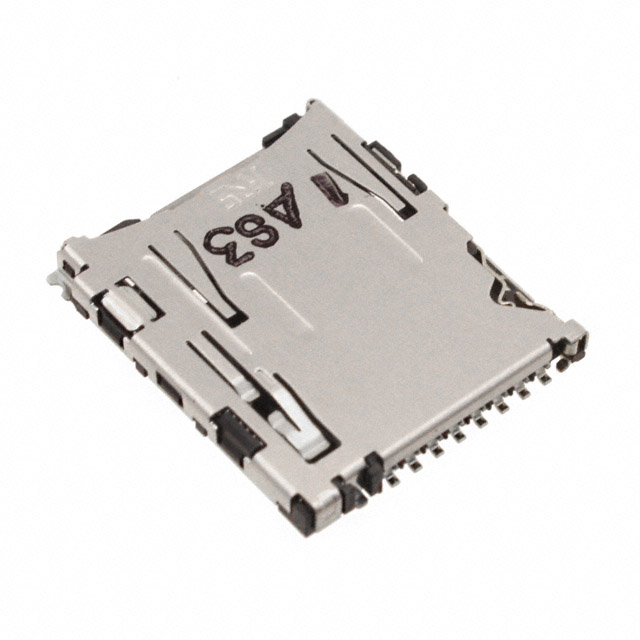

DM3AT-SF-PEJM5 - HIROSE ELECTRIC
Memory Card Connector, MicroSD, Push-Push, 8 Contacts, Copper Alloy, Gold Plated Contacts, DM3
Technical Details
| China RoHS | Compliant |
| Connector Type | Connector |
| Contact Gender | Female |
| Contact Material | Gold |
| Contact Pitch | 1.1mm |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 500mA |
| Depth | 15.95mm |
| Dielectric Material | Liquid Crystal Polymer |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 1.68mm |
| Housing Color | Black |
| Housing Material | Polymer |
| Insulation Resistance | 1GΩ |
| Lead Free | Lead Free |
| Length | 13.85mm |
| Lifecycle Status | Production |
| Max Current Rating | 500mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Memory Type | FLASH |
| Manufacturer Package Identifier | DM3AT-SF-PEJM5 |
| Min Operating Temperature | -25°C |
| Mount | Standard, Surface Mount |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Force | 15N |
| Orientation | Right Angle |
| Pitch | 1.1mm |
| Plating Thickness | 29.972nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536695050 |
| Terminal Pitch | 1.1mm |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| Width | 15.95mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
