DM3C-SF - HIROSE ELECTRIC
Connector Micro SD Card Header 10 Position Solder Right Angle Surface Mount T/R
Technical Details
| Connector Type | Connector |
| Contact Gender | Male |
| Contact Material | Copper |
| Contact Plating | Tin |
| Contact Resistance | 100mΩ |
| Current Rating | 500mA |
| Depth | 14.1mm |
| Dielectric Material | Liquid Crystal Polymer |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Gender | Female |
| Housing Material | Polymer |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2008-03-06 |
| Lead Free | Lead Free |
| Length | 13.8mm |
| Lifecycle Status | Production |
| Max Current Rating | 500mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape & Reel (TR) |
| Pitch | 1.1mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 1.0922mm |
| Termination | Solder |
| Width | 13.8mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

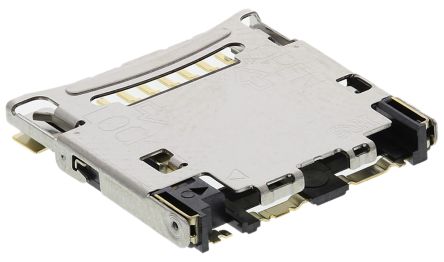

Images
