SE5455-003 - Honeywell
Diode, Infrared Emitter; TO-46; 935 nm; 1.7 V; 100 mA; -55 degC; 125 degC; 150
Technical Details
| Case/Package | TO-46 |
| Depth | 5.56mm |
| Export Control Classification Number (ECCN) Code | 3A001.a.2.c |
| Fall Time | 700ns |
| Forward Current | 100mA |
| Forward Voltage | 1.7V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 1993-09-13 |
| Lead Free | Contains Lead |
| Length | 5.56mm |
| Lens Style | Dome, Round |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Peak Wavelength | 935nm |
| Power Dissipation | 150mW |
| Power Rating | 150mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage | 3V |
| Rise Time | 700ns |
| RoHS | Compliant |
| Viewing Angle | 20° |
| Wavelength | 935nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

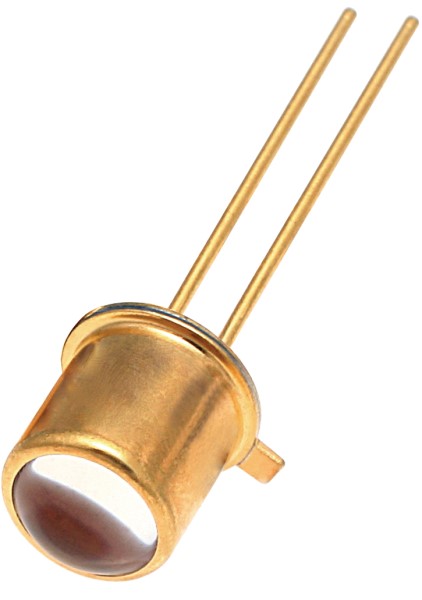

Images
