AL6Q-M23P-QG - Idec
Pushbutton Switch, DPDT, Momentary, 1A, 24VDC, Solder/quick Connect Terminal, Panel Mount
Technical Details
| Actuator Length | 16.1036mm |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 120V |
| Electrical Life | 100kcycles |
| Height | 22mm |
| Illumination Color | Green |
| Illumination Type | LED |
| Insulation Resistance | 100MΩ |
| Length | 16mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP65, MOISTURE PROOF |
| Termination | Solder |
| Throw Configuration | DPDT |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

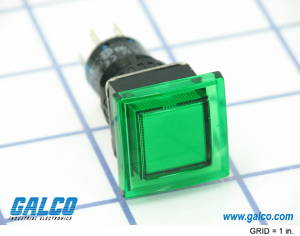

Images
