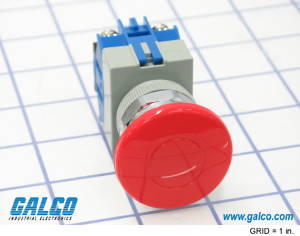

AOW420-R - Idec
Pushbutton Switch, DPST, Latched, 10A, 24VDC, Screw Terminal, Panel Mount-threaded
Technical Details
| Actuator Length | 23.1902mm |
| Color | Red |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 110V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 69.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Introduction Date | 2019-04-03 |
| Length | 41.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 50°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -25°C |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP20, IP65 |
| Throw Configuration | DPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Galco
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 158
|
$ | 737.93 | 737.93 | 737.93 | 737.93 | 737.93 | 737.93 | ||
