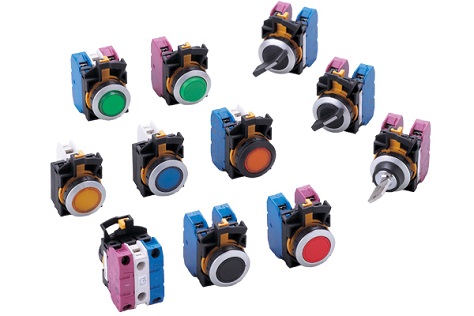

CW4B-A1E01Y - Idec
Pushbutton Switch, SPST, Latched, 8A, 24VDC, Screw Terminal, Panel Mount
Technical Details
| Actuator Length | 2.4892mm |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 120V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 250kcycles |
| Height | 44.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2021-03-19 |
| Length | 41.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 8A |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -25°C |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP65, IP66, IP67 |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
