HW1L-A2F11QD-W-6V - Idec
Pushbutton Switch, DPST, Latched, 10A, 24VDC, Screw Terminal, Panel Mount
Technical Details
| Actuator Length | 13.0048mm |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 24V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10Mcycles |
| Height | 85.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Illumination Color | White |
| Introduction Date | 2019-04-03 |
| Length | 41.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 50°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500kcycles |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Orientation | Straight |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP20, IP65 |
| Termination | Contact Block |
| Throw Configuration | DPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

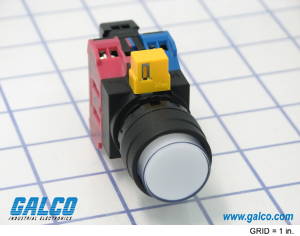

Images
