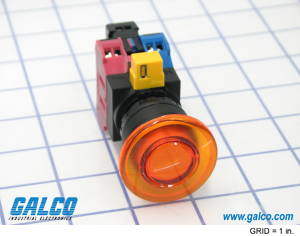

HW1L-A4F11QD-A-12V - Idec
Pushbutton Switch, DPST, Maintained, 10A, 24VDC, Screw Terminal, Panel Mount
Technical Details
| Actuator Length | 10.2mm |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 110V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 500kcycles |
| Height | 46.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Illumination Color | Orange |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2021-10-13 |
| Length | 42.9mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 50°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500kcycles |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Operating Force | 10.3N |
| Orientation | Straight |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP20, IP65 |
| Termination | Contact Block |
| Throw Configuration | DPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
