BCR169E6327HTSA1 - Infineon
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
Technical Details
| Case/Package | SOT |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 5V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 50V |
| Contact Plating | Tin |
| Current Rating | -100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Halogen Free | Not Halogen Free |
| hFE Min | 120 |
| Input Resistance | 4.7kΩ |
| Introduction Date | 1997-02-01 |
| Lead Free | Lead Free |
| Lifecycle Status | EOL |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Package Quantity | 3000 |
| Packaging | Tape & Reel |
| Polarity | PNP |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 200MHz |
| Voltage Rating (DC) | -50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

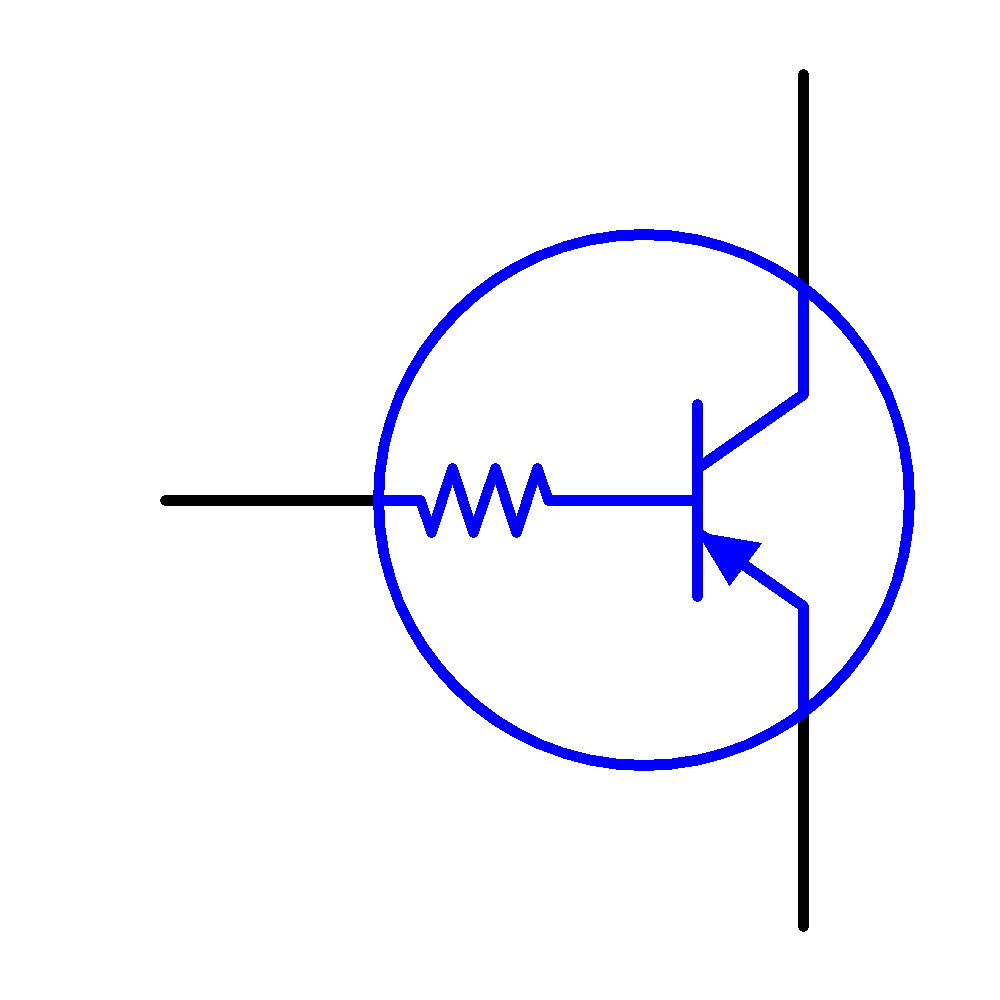

Images
