Technical Details
| Case/Package | SOT |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 5V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 50V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Halogen Free | Halogen Free |
| hFE Min | 120 |
| Input Resistance | 4.7kΩ |
| Introduction Date | 1996-11-27 |
| Lead Free | Lead Free |
| Lifecycle Status | EOL |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Package Quantity | 3000 |
| Packaging | Tape & Reel |
| Polarity | PNP |
| Power Dissipation | 250mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 200MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

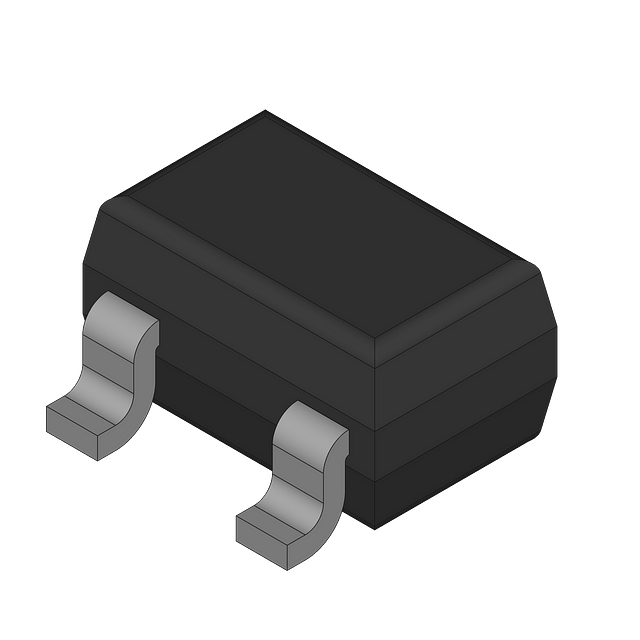

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 114000
|
$ | 0.0535 | 0.0444 | 0.0396 | |||||
