BTS3134NHUMA1 - Infineon

BTS3134N Series 42 V 3 A 35 mOhm Smart Low Side Power Switch - PG-SOT-223-4

Technical Details

Case/Package	SOP
China RoHS	Compliant
Drain to Source Voltage (Vdss)	42V
Export Control Classification Number (ECCN) Code	EAR99
Halogen Free	Not Halogen Free
Height - Seated (Max)	1.8mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	2002-09-04
Length	6.5mm
Lifecycle Status	Production
Max Dual Supply Voltage	42V
Max Operating Temperature	150°C
Max Output Current	24A
Max Power Dissipation	3.8W
Min Operating Temperature	-40°C
Mount	Surface Mount
Nominal Input Voltage	42V
Number of Channels	1
Number of Circuits	1
Number of Outputs	1
Number of Pins	4
Number of Terminals	4
Number of Transmitters	1
On-State Resistance	50mΩ
Operating Supply Voltage	12V
Output Current	3A
Output Voltage	42V
Package Quantity	4000
Packaging	Tape & Reel
Power Dissipation	43W
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Terminal Pitch	2.3mm
Width	3.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Infineon BTS3134NHUMA1 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

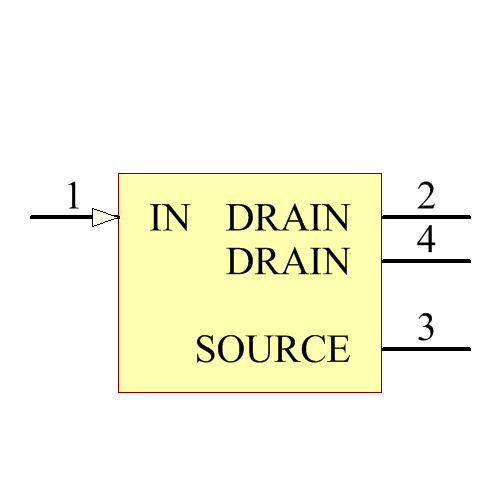

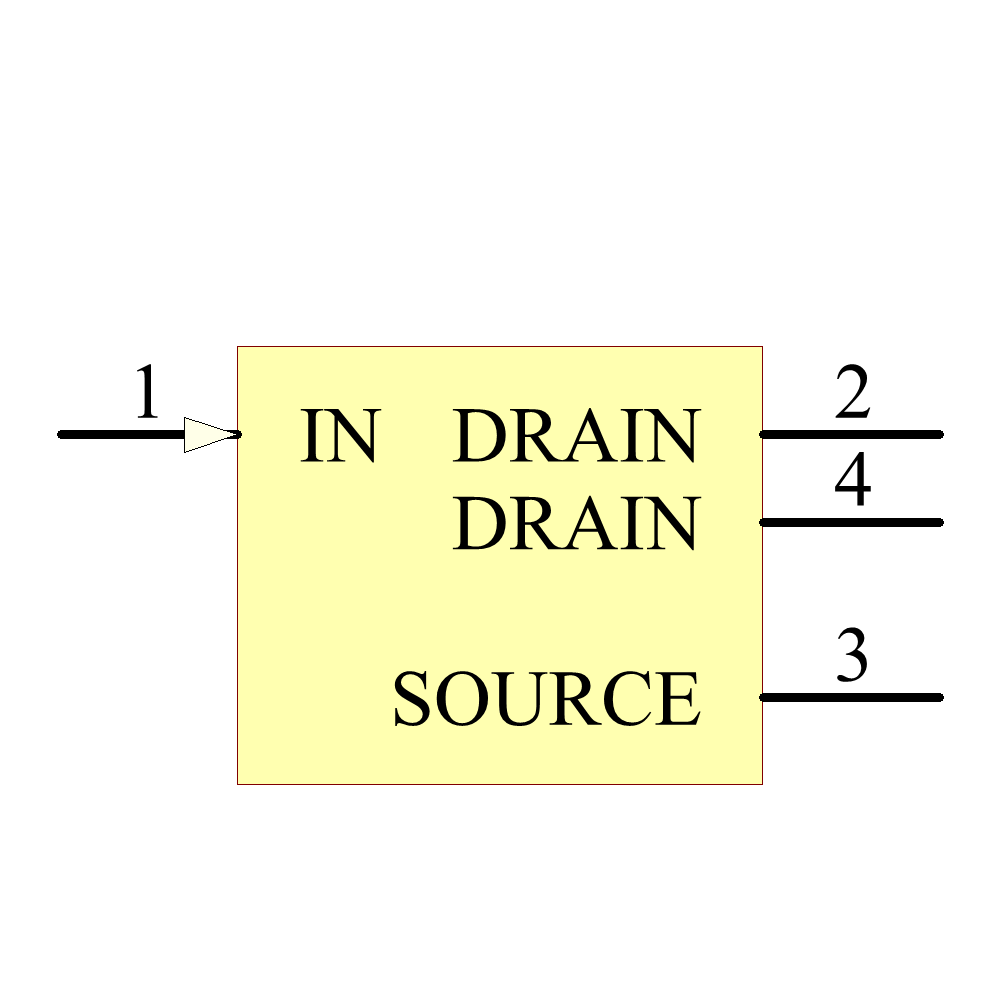

BTS3134NHUMA1 Symbol - Infineon

BTS3134NHUMA1 Symbol - Infineon

BTS3134NHUMA1 Symbol - Infineon

BTS3134NHUMA1 Symbol - Infineon

‹ ›

Footprint

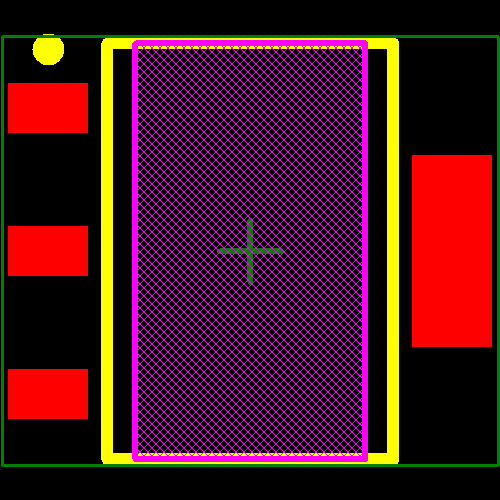

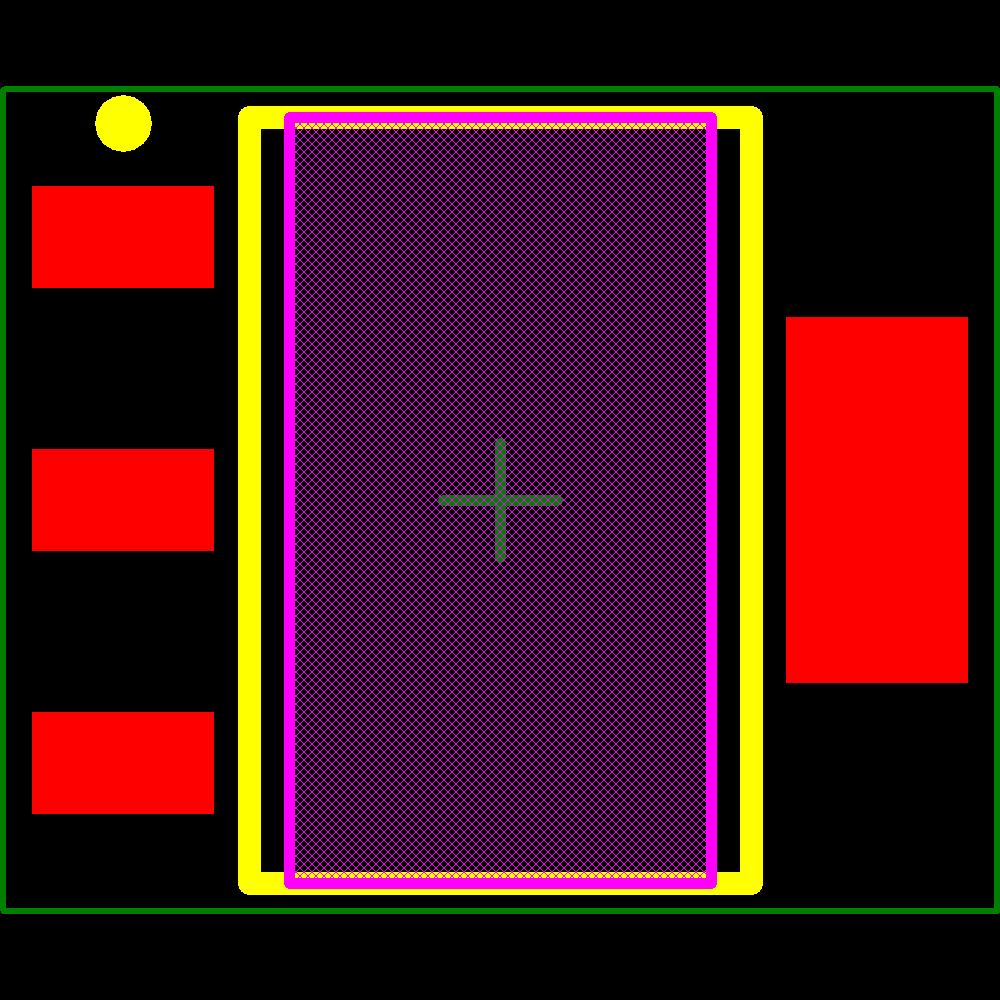

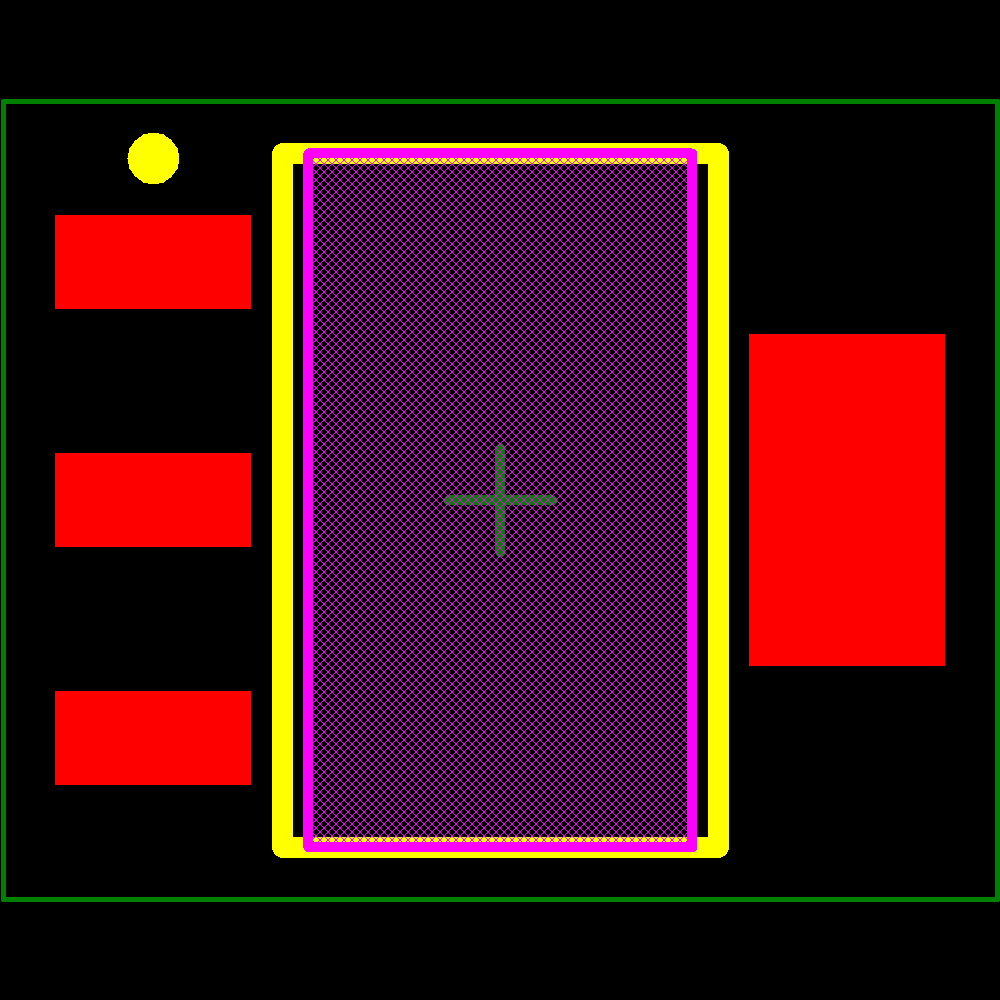

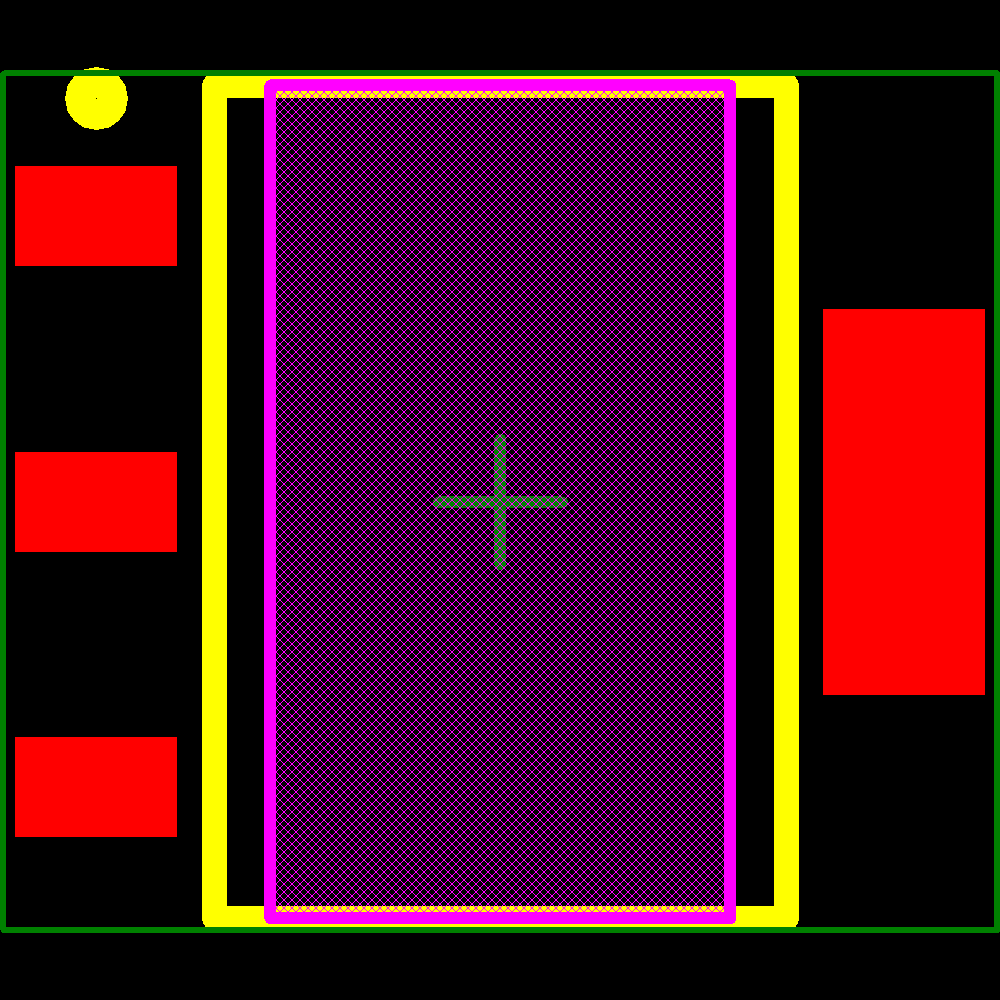

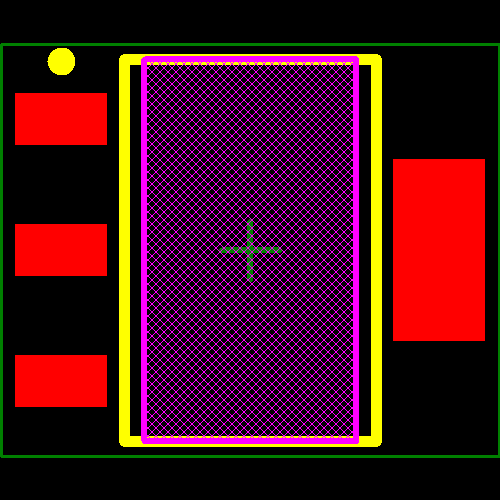

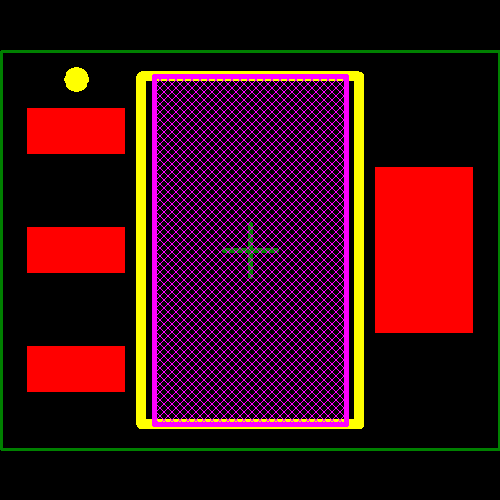

BTS3134NHUMA1 Footprint - Infineon
