BTS500801TMBAKSA1 - Infineon

IC PWR SWITCH N-CHAN 1: 1 TO220-7 Power Switch/Driver 1: 1 N-Channel 9.5A PG-TO220-7-12

Technical Details

Case/Package	TO-220
China RoHS	Non-Compliant
Halogen Free	Halogen Free
Height - Seated (Max)	17.3mm
Lead Free	Contains Lead
Length	10mm
Lifecycle Status	Production
Max Operating Temperature	150°C
Max Supply Current	2.2mA
Max Supply Voltage	38V
Min Operating Temperature	-40°C
Min Supply Voltage	5.5V
Mount	Through Hole
Nominal Input Voltage	38V
Nominal Supply Current	1.4mA
Number of Channels	1
Number of Circuits	1
Number of Outputs	1
Number of Pins	7
Number of Terminals	7
Operating Supply Voltage	12V
Output Current	9.5A
Package Quantity	500
Power Dissipation	81W
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Terminal Pitch	1.27mm
Width	9.25mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

Infineon BTS500801TMBAKSA1 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

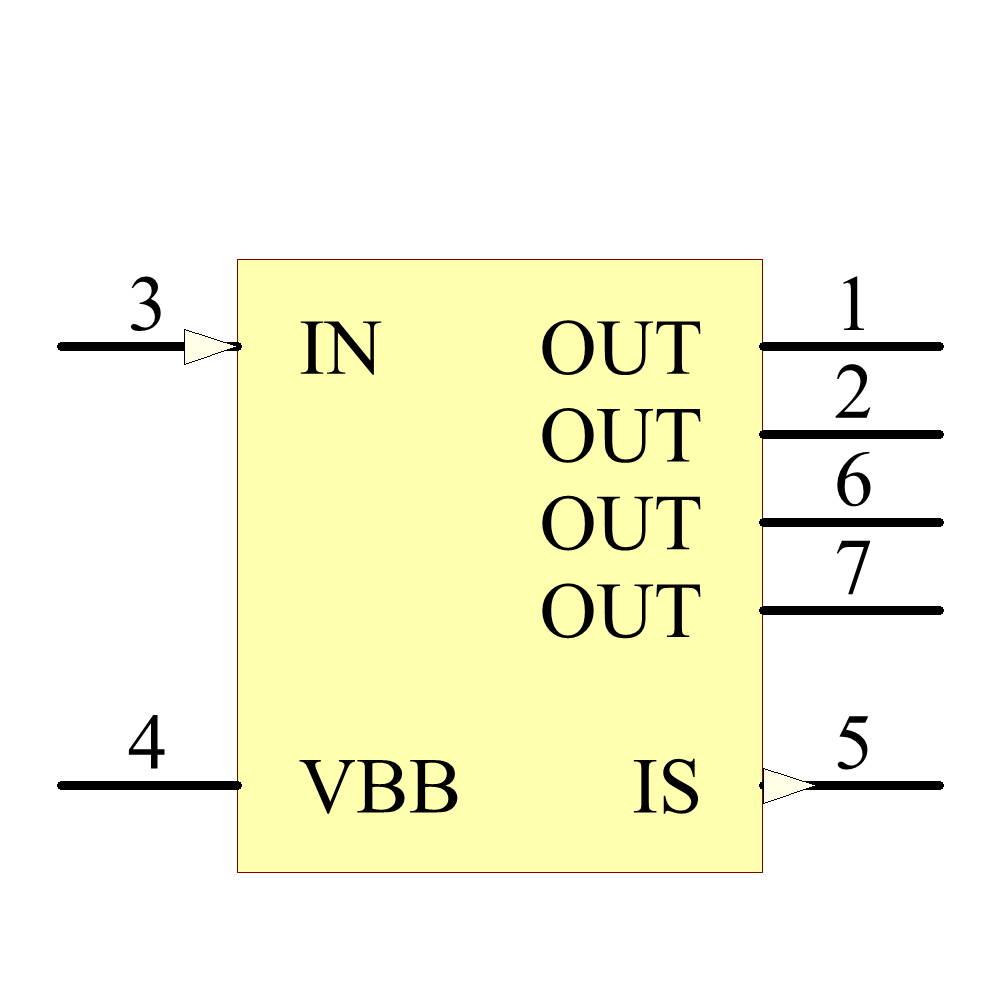

Symbol

BTS500801TMBAKSA1 Symbol - Infineon

BTS500801TMBAKSA1 Symbol - Infineon

BTS500801TMBAKSA1 Symbol - Infineon

BTS500801TMBAKSA1 Symbol - Infineon

‹ ›

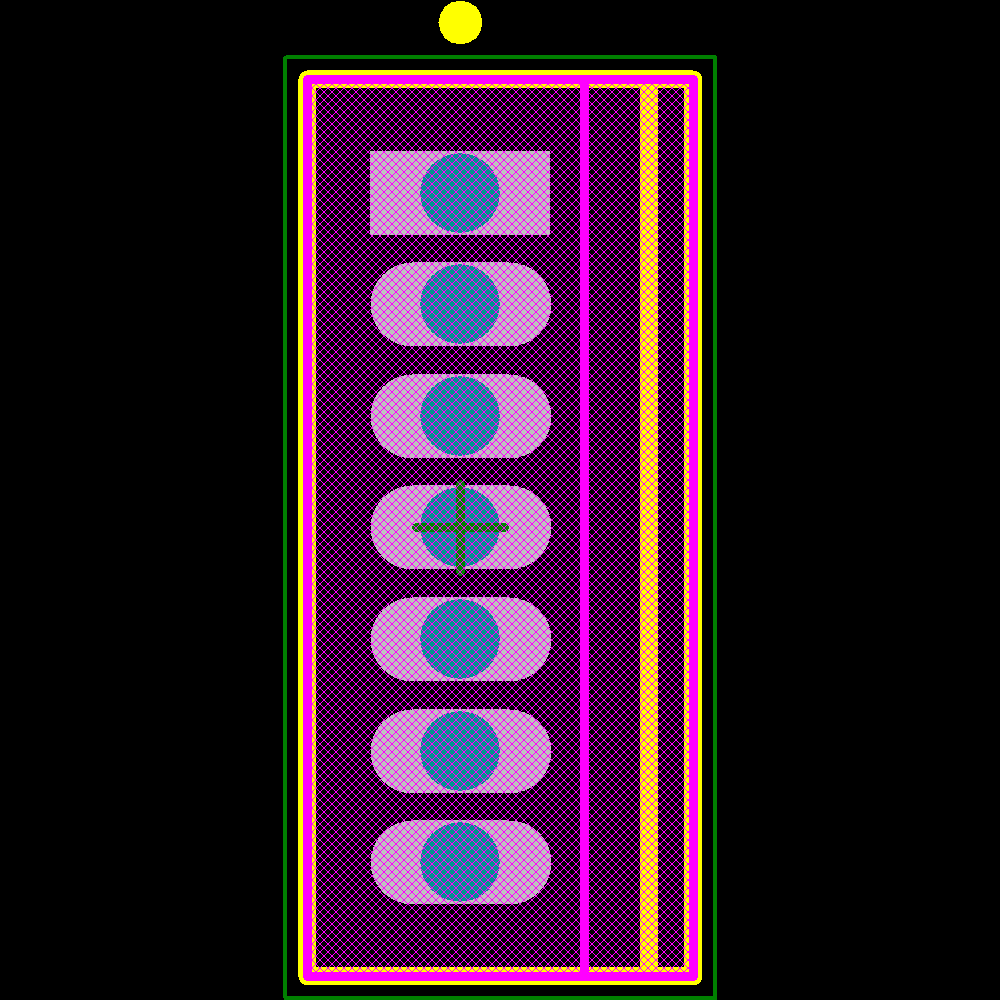

Footprint
