BTS72002EPAXUMA1 - Infineon
Power Load Distribution Switch, High Side, 1 Output, 13.5 Vin, 1.2 A, 0.0665 ohm, TSSOP-EP-14
Technical Details
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.15mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2018-06-05 |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 6V |
| Nominal Supply Current | 2mA |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Output Current | 1.2A |
| Package Quantity | 3000 |
| Packaging | Tape & Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

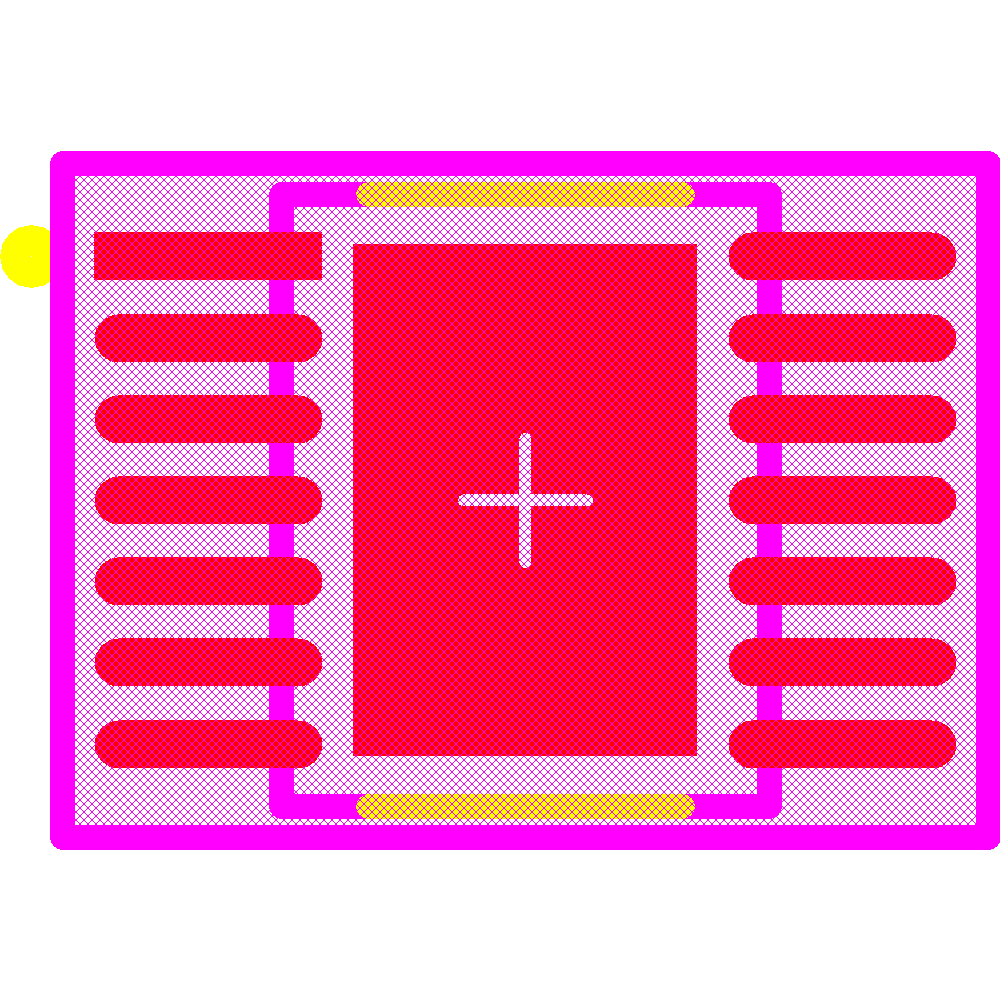

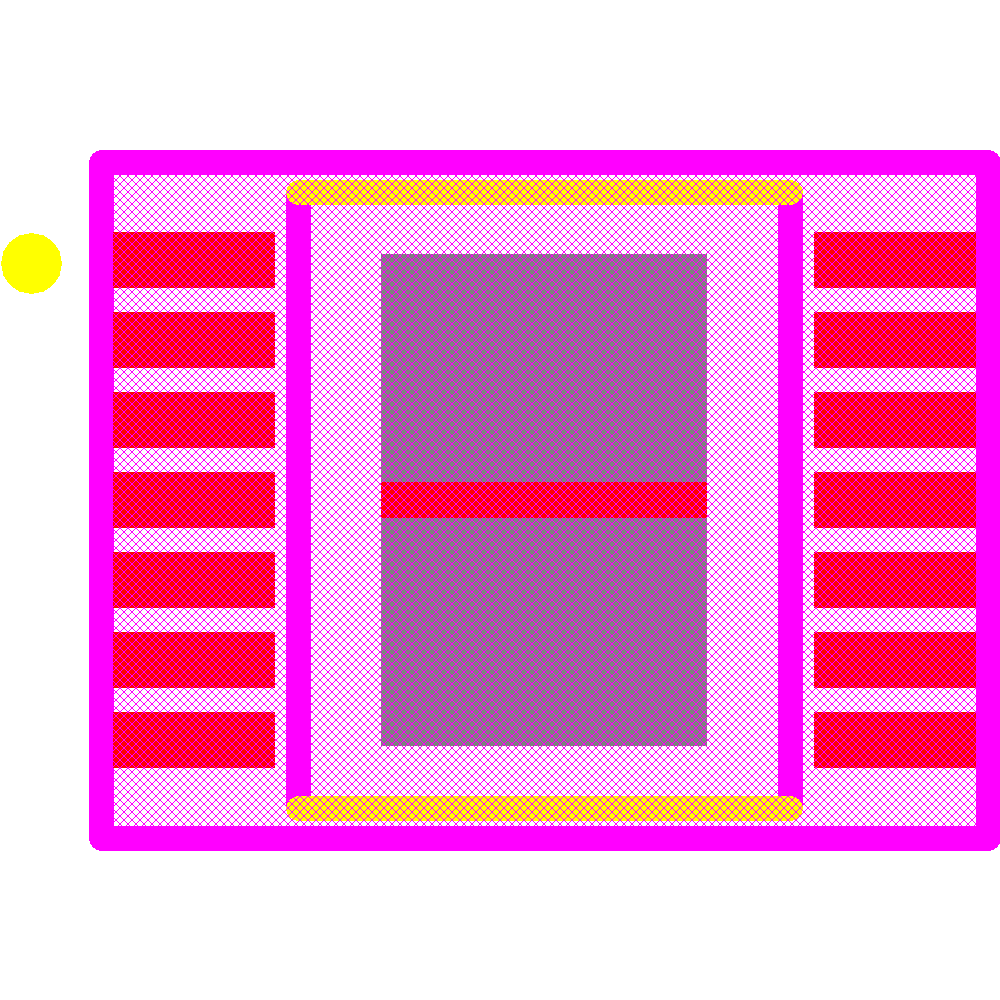

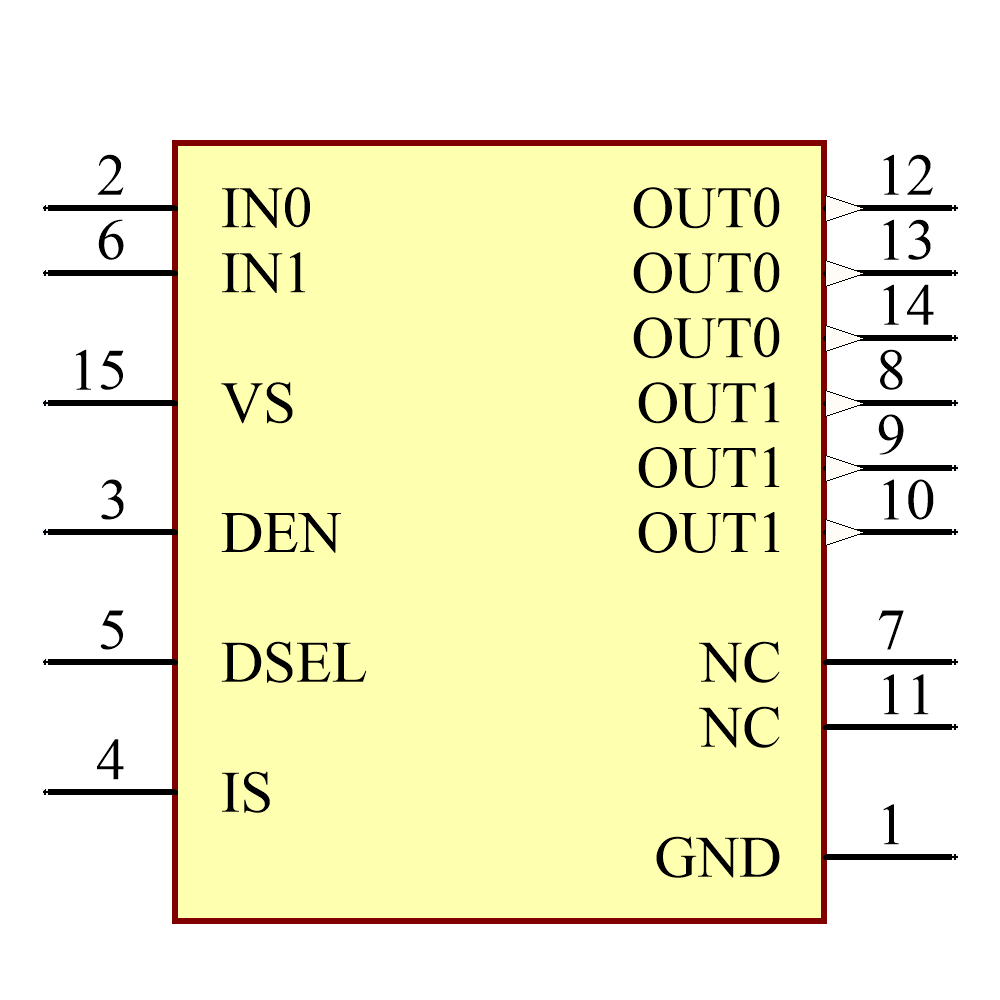

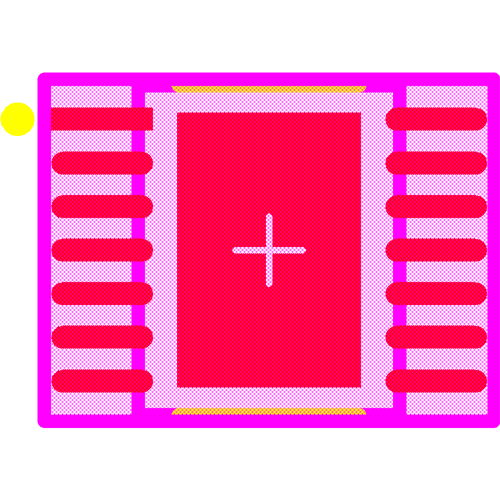

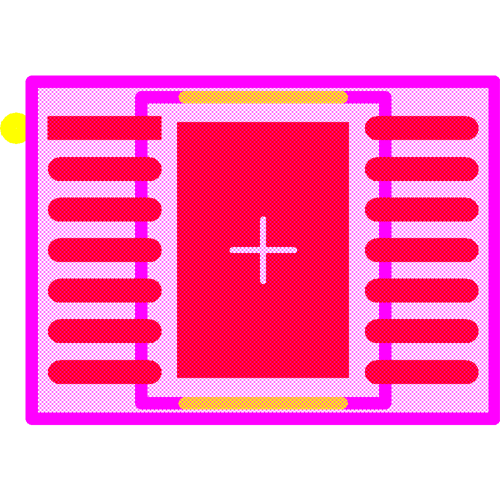

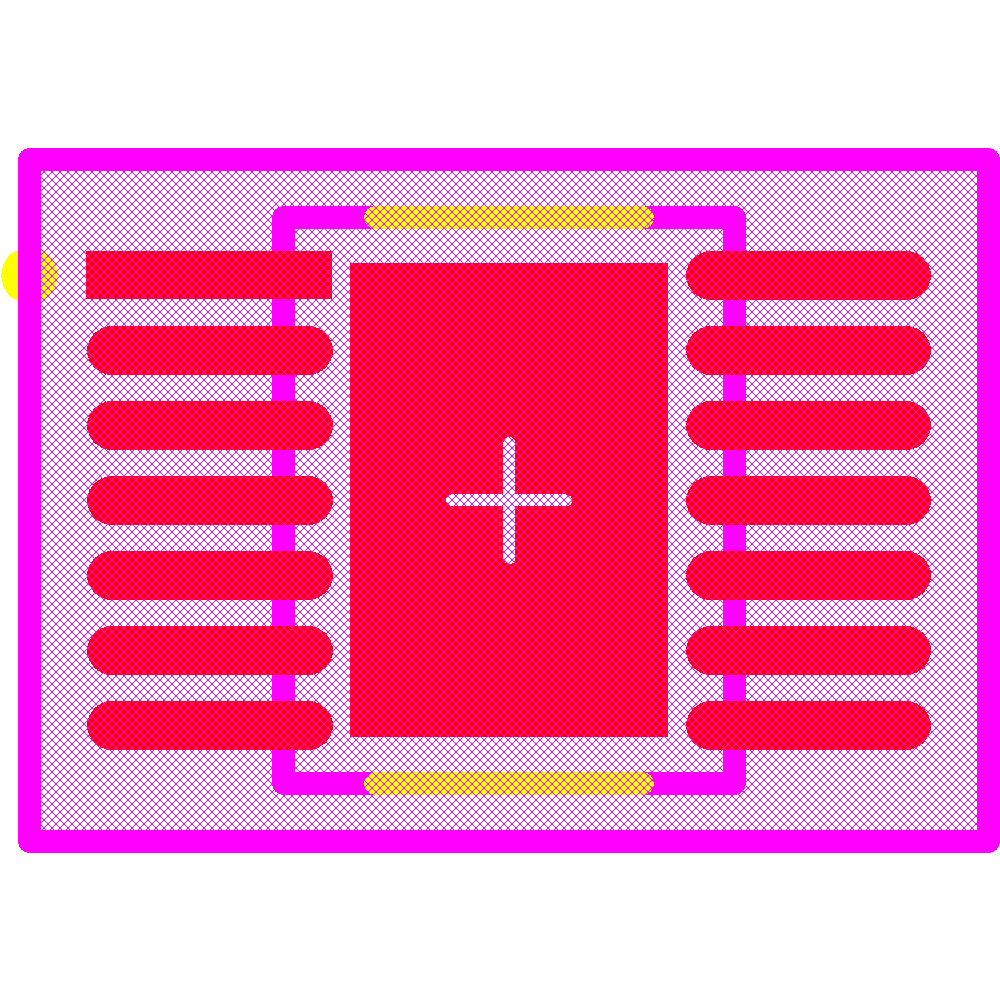

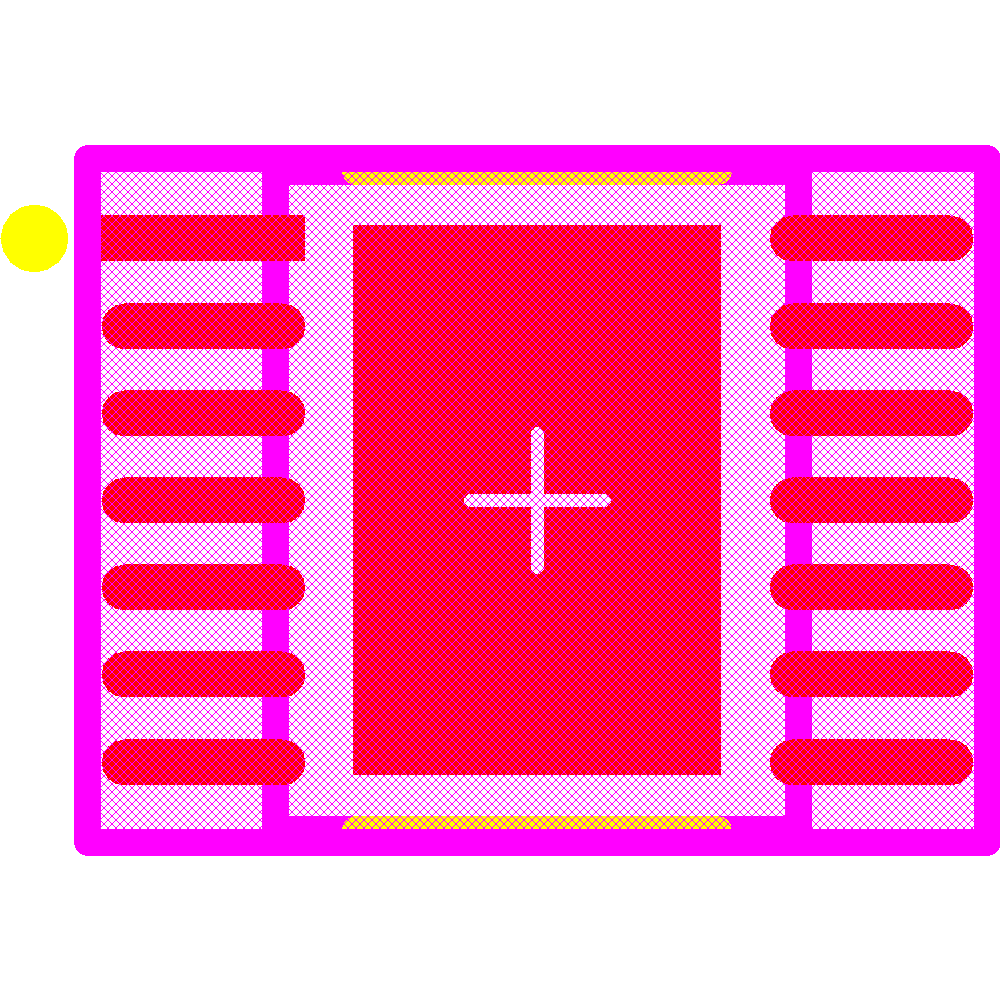

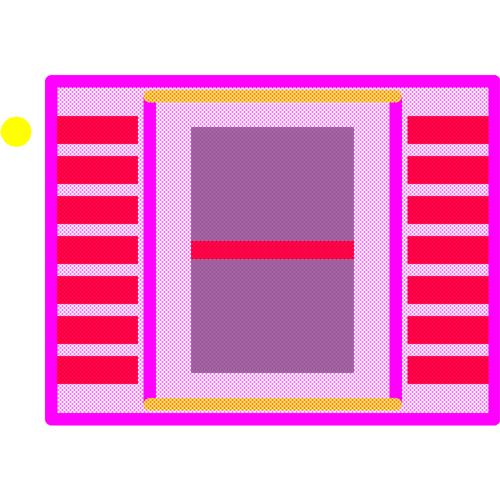

Images
