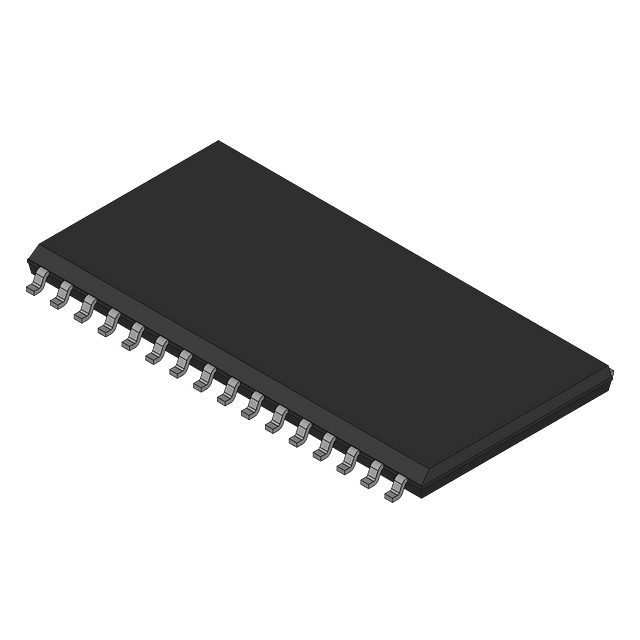

CY62128BNLL-70SXA - Infineon
IC SRAM 1MBIT PARALLEL 32SOIC SRAM - Asynchronous Memory IC 1Mbit Parallel 70 ns 32-SOIC
Technical Details
| Access Time | 70ns |
| Address Bus Width | 17b |
| Case/Package | SOP |
| China RoHS | Compliant |
| Density | 1Mb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 2.997mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.41 |
| Interface | Parallel |
| Introduction Date | 2006-08-31 |
| Length | 20.4465mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Supply Current | 15mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 128kB |
| Memory Type | RAM, SDR, SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 15mA |
| Number of Circuits | 1 |
| Number of Pins | 32 |
| Number of Ports | 1 |
| Number of Terminals | 32 |
| Number of Words | 128000 |
| Operating Supply Voltage | 5V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Sync/Async | Asynchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 11.303mm |
| Word Size | 8b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
