ESD3V3U1U02LSE6327XTSA1 - Infineon
DIODE, TVS, 3.3V, TSSLP-2-1; Diode Type: ESD Protection; Power Dissipation Pd: 0mW
Technical Details
| Breakdown Voltage | 5V |
| Capacitance | 400fF |
| China RoHS | Compliant |
| Clamping Voltage | 12V |
| Composition | Zener |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 320µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2008-07-14 |
| Length | 620µm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 0W |
| Max Reverse Leakage Current | 50nA |
| Max Surge Current | 3A |
| Min Breakdown Voltage | 5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Cut Tape (CT) |
| Peak Pulse Current | 3A |
| Peak Reverse Current | 50nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 320µm |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

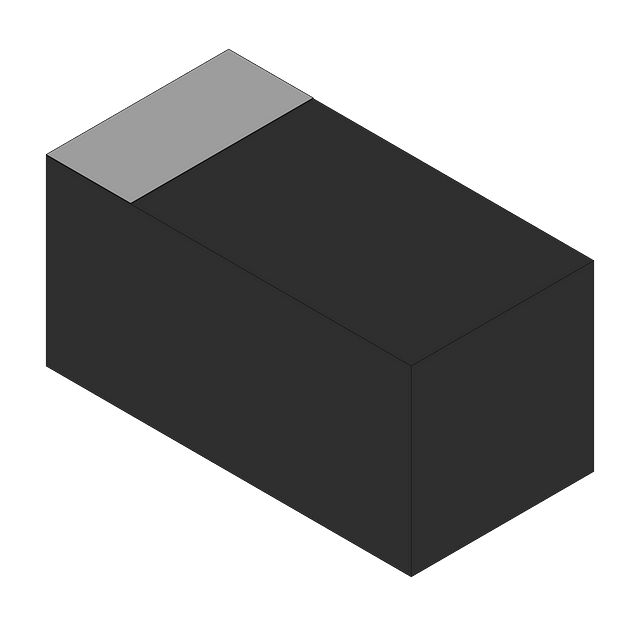

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Nexperia | Production | ||
| onsemi | Production | ||
| Infineon | NRND | ||
| Texas Instruments | Production |
