ESD5V3L1B02LRHE6327XTSA1 - Infineon
Trans Voltage Suppressor Diode, 30W, 5.3V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 8V |
| Capacitance | 7pF |
| China RoHS | Compliant |
| Clamping Voltage | 10.4V |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 400µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2012-10-25 |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 10V |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Peak Pulse Current | 3A |
| Peak Pulse Power | 30W |
| Peak Reverse Current | 100nA |
| Polarity | Bidirectional |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.3V |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

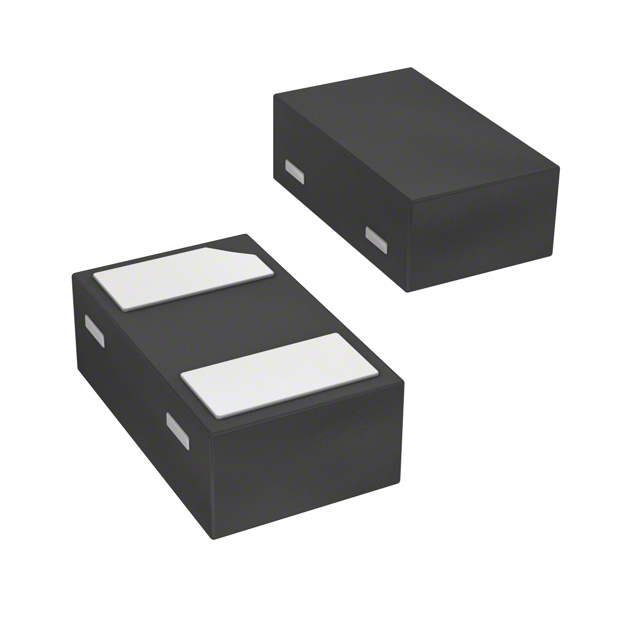

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Littelfuse | Obsolete | ||
| onsemi | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Infineon | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production |
