Technical Details
| China RoHS | Compliant |
| Collector Emitter Saturation Voltage | 2.1V |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Continuous Collector Current | 450A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 17.5mm |
| Introduction Date | 2017-04-03 |
| Lifecycle Status | Production |
| Max Collector Current | 675A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Number of Elements | 2 |
| Number of Terminals | 11 |
| Package Quantity | 6 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Turn-Off Delay Time | 490ns |
| Turn-On Delay Time | 190ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

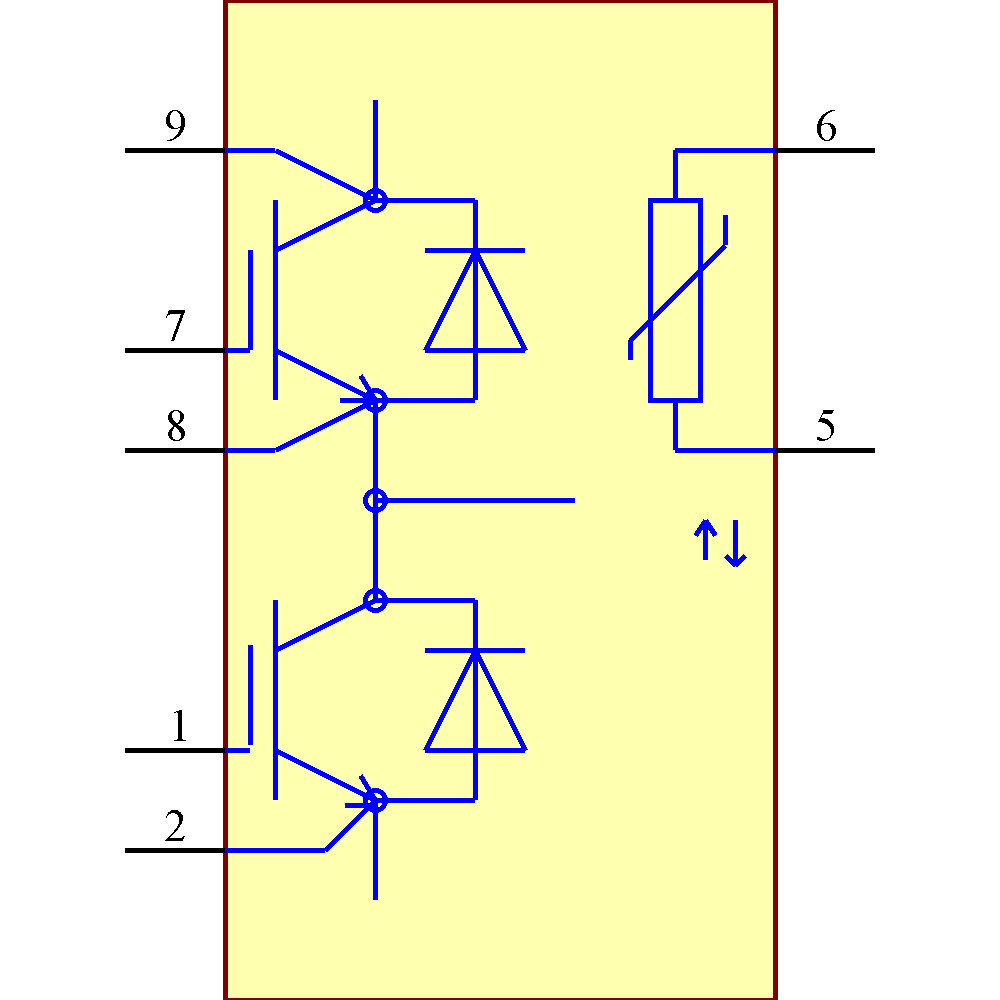

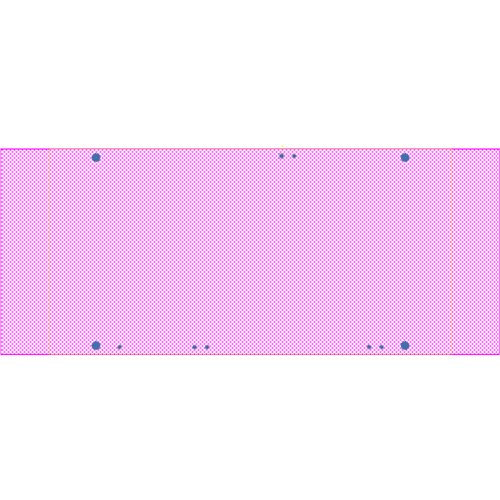

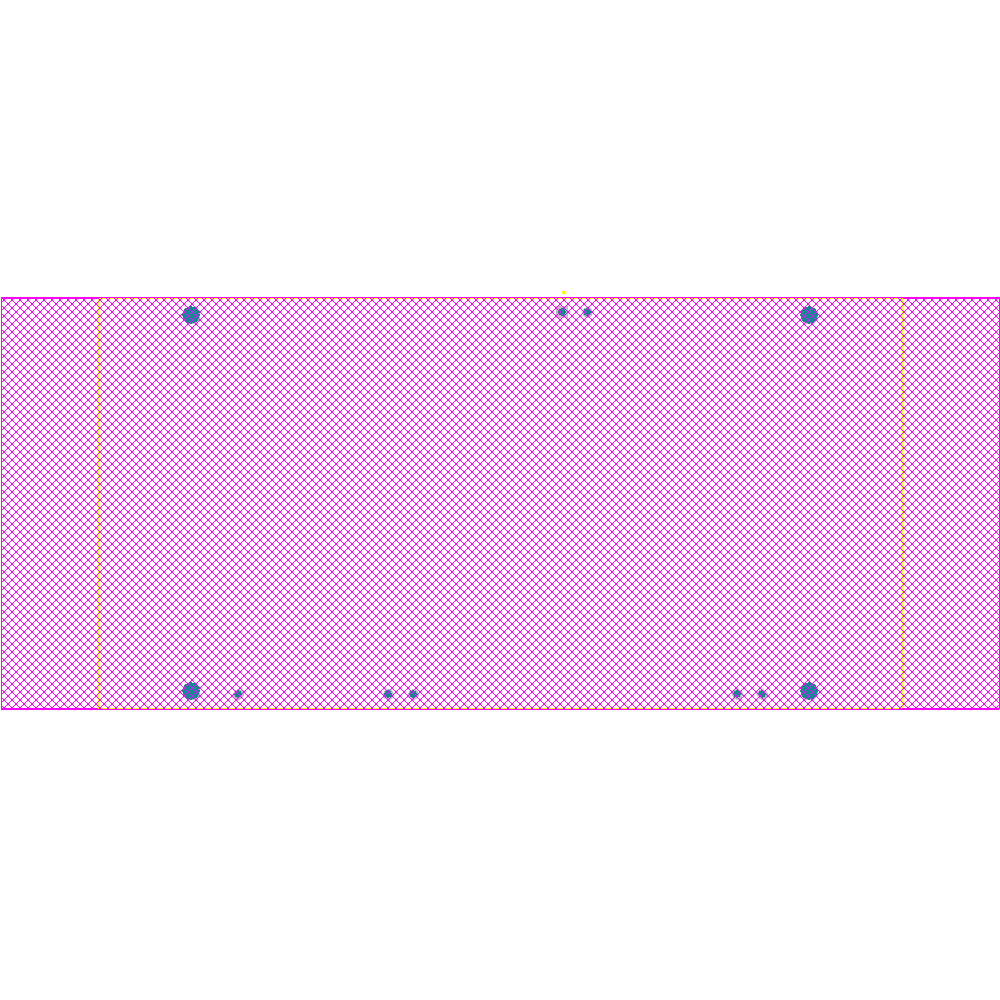

Images
