Integrated Circuits (ICs) > Power Management ICs > LED Drivers

ILD4035E6327HTSA1 - Infineon

Tape & Reel (TR) ILD4035 Step-Down (Buck) Analog PWM led driver 2.9mm 350mA 4.5V 1W

Case/Package	TSOP
China RoHS	Compliant
Contact Plating	Tin
Country of Origin	Mainland China
Dimming	Analog, PWM
Export Control Classification Number (ECCN) Code	EAR99
Frequency	120kHz
Halogen Free	Not Halogen Free
Height - Seated (Max)	1.1mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	2011-08-17
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Obsolete
Max Operating Temperature	150°C
Max Output Current	350mA
Max Power Dissipation	1W
Max Supply Voltage	40V
Min Supply Voltage	4.5V
Mount	Surface Mount
Number of Characters	3
Number of Circuits	1
Number of Outputs	1
Number of Pins	6
Number of Terminals	6
Operating Supply Voltage	12V
Output Current per Channel	350mA
Packaging	Cut Tape
Power Dissipation	1W
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Terminal Pitch	950µm
Width	1.6mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Infineon ILD4035E6327HTSA1 | Farnell

Farnell

Obsolete

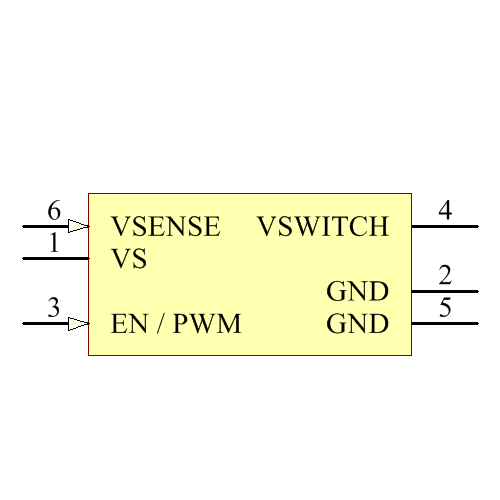

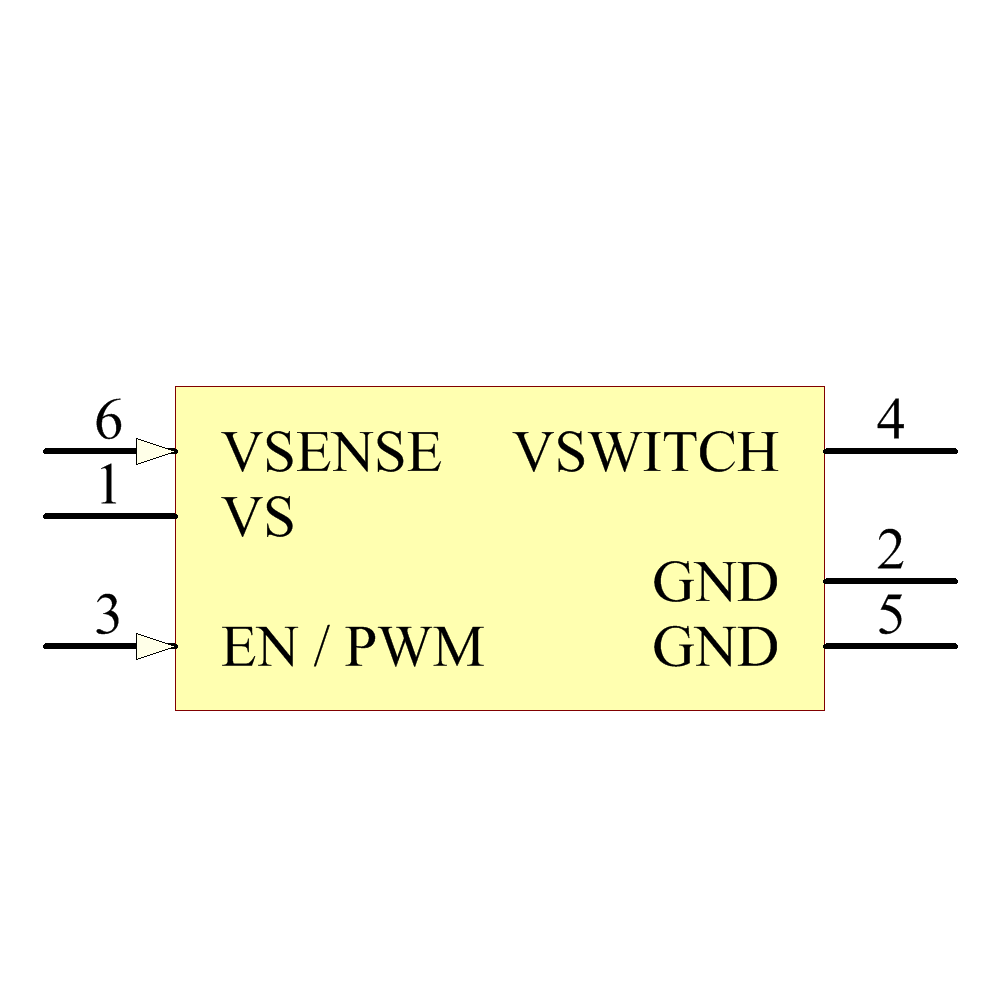

Symbol

‹ ›

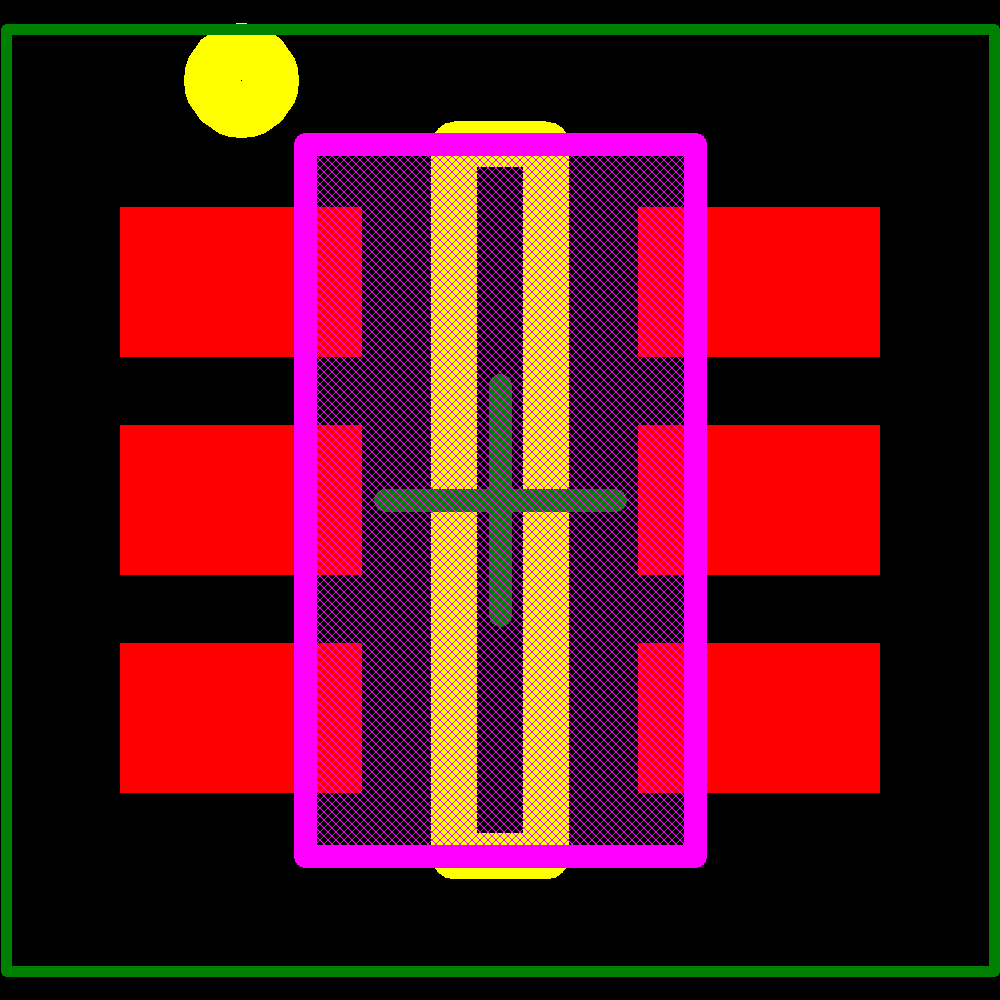

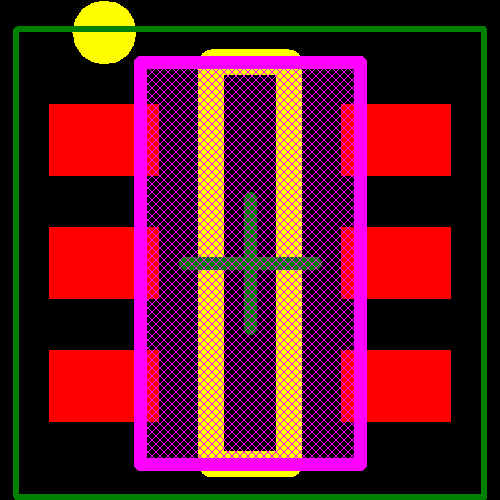

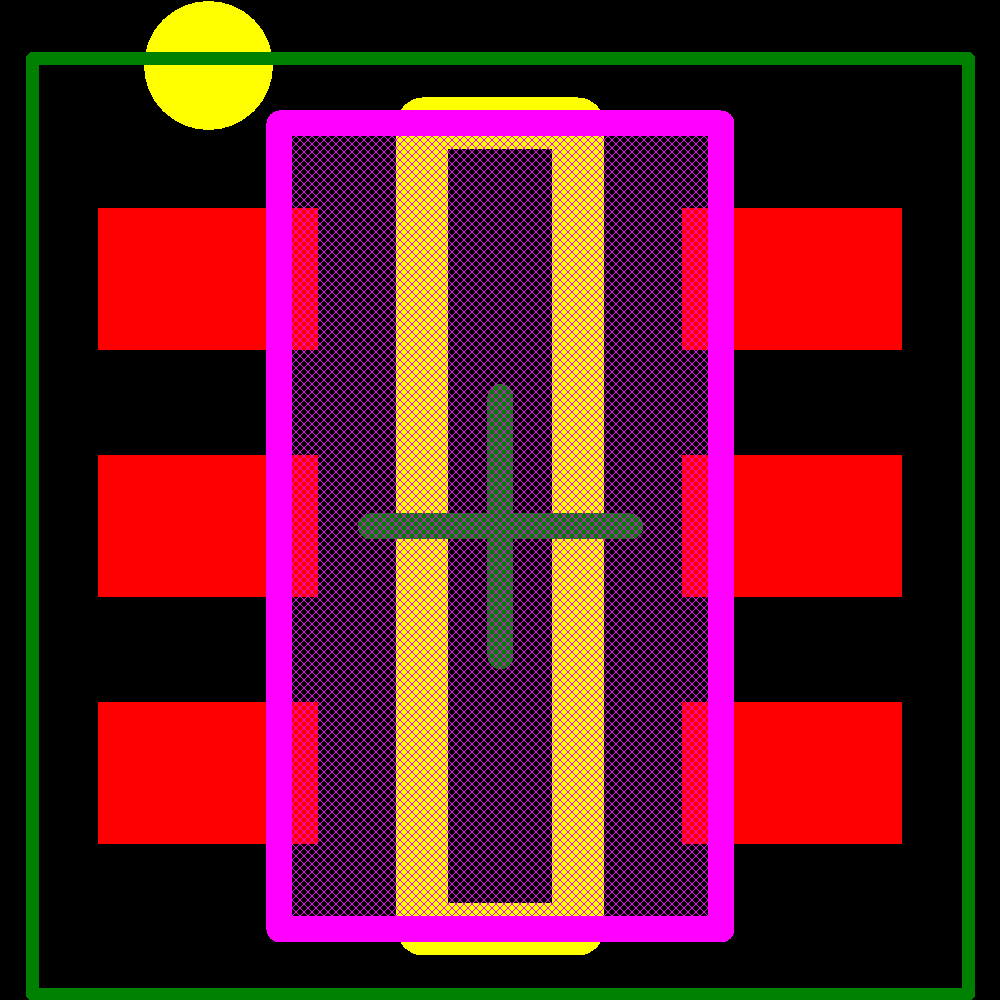

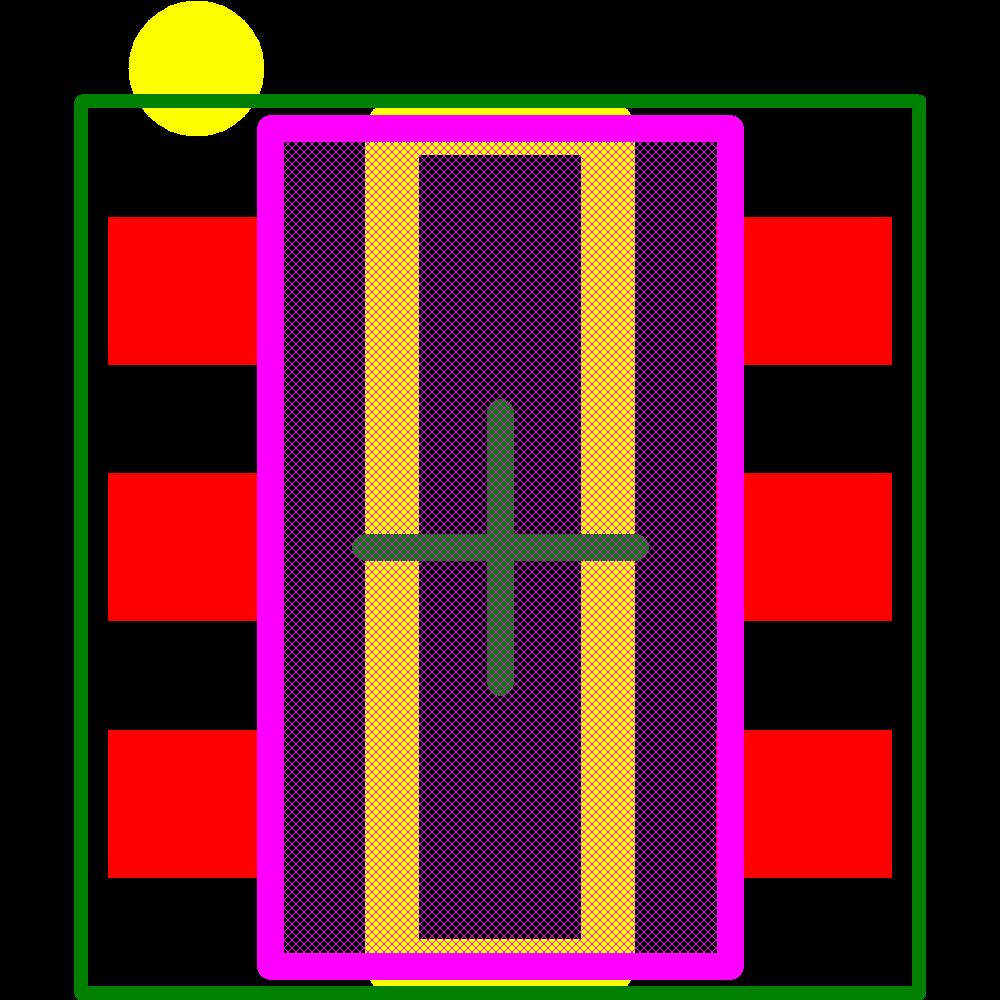

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Infineon	ILD4035E6327XT	Obsolete
Infineon	ILD2035E6327XT	Production
Diodes Inc.	AL8808WT-7	Obsolete
Infineon	ILD4001	Obsolete
Infineon	ILD2035E6327HTSA1	Obsolete
Infineon	ILD4001E6327HTSA1	Obsolete
Texas Instruments	TPS92512HVDGQR	Production
Texas Instruments	TPS92512DGQT	Production
Texas Instruments	TPS92512DGQR	Production
Texas Instruments	TPS92512HVDGQT	Production
