IPB80P04P4-05 - Infineon
IPB80P04P405ATMA1 P-Channel MOSFET, 80 A, 40 V OptiMOS P, 3-Pin D2PAK Infineon
Technical Details
| Case/Package | TO-263-3 |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 80A |
| Drain to Source Breakdown Voltage | -40V |
| Drain to Source Resistance | 5.2mΩ |
| Drain to Source Voltage (Vdss) | -40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 65ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 4.4mm |
| Input Capacitance | 7.9nF |
| Introduction Date | 2011-04-18 |
| Length | 10mm |
| Lifecycle Status | Production |
| Max Dual Supply Voltage | -40V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 125W |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Power Dissipation | 125W |
| Rds On Max | 4.9mΩ |
| REACH SVHC | No |
| Rise Time | 24ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 73ns |
| Turn-On Delay Time | 42ns |
| Width | 9.25mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images

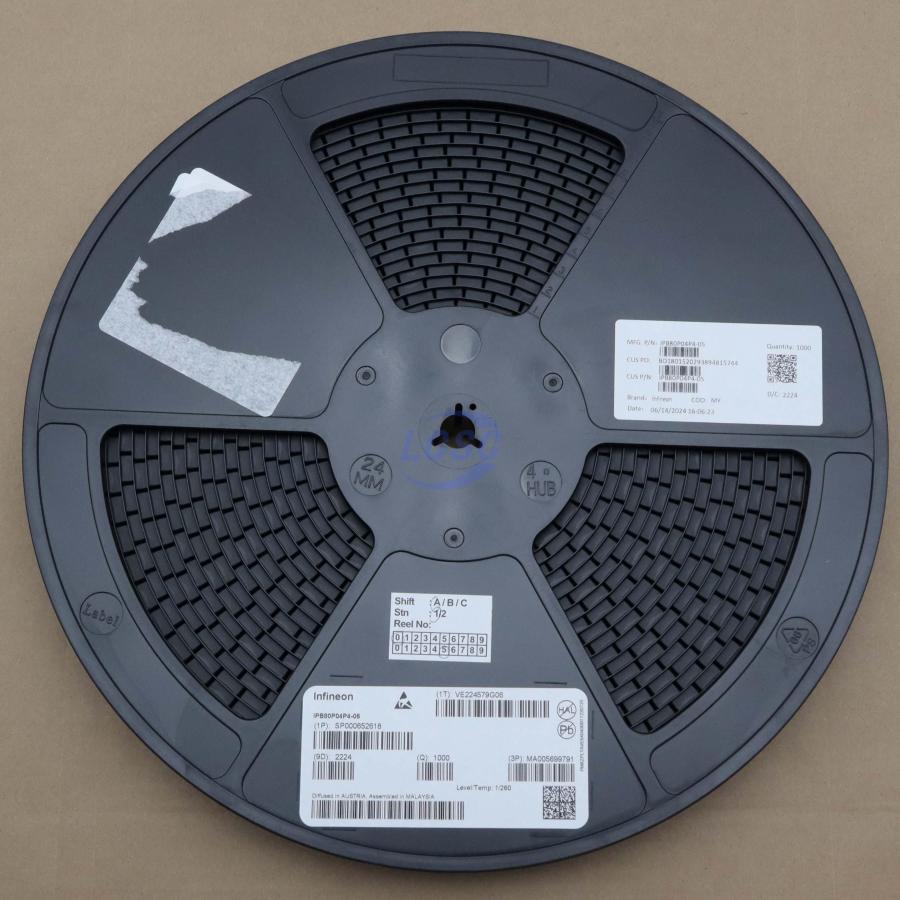

LCSC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Infineon | Production | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Vishay | Obsolete | ||
| Infineon | Production | ||
| Vishay | Production | ||
| Vishay | Production |
