Discrete Semiconductors > Transistors > MOSFETs

IPI075N15N3GXKSA1 - Infineon

MOSFET N-CH 150V 100A TO262-3 N-Channel 150 V 100A (Tc) 300W (Tc) Through Hole PG-TO262-3

Technical Details

Case/Package	TO-262-3
China RoHS	Compliant
Continuous Drain Current (ID)	100A
Drain to Source Breakdown Voltage	150V
Drain to Source Resistance	7.5mΩ
Drain to Source Voltage (Vdss)	150V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	14ns
Gate to Source Voltage (Vgs)	20V
Halogen Free	Halogen Free
Input Capacitance	5.47nF
Introduction Date	2011-01-20
Lead Free	Lead Free
Lifecycle Status	Production
Max Dual Supply Voltage	150V
Max Operating Temperature	175°C
Max Power Dissipation	300W
Min Breakdown Voltage	150V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Elements	1
Number of Pins	3
Number of Terminals	3
On-State Resistance	7.5mΩ
Package Quantity	500
Power Dissipation	300W
Radiation Hardening	No
Rds On Max	7.5mΩ
REACH SVHC	Yes
Rise Time	35ns
RoHS	Compliant
Threshold Voltage	3V
Turn-Off Delay Time	46ns
Turn-On Delay Time	25ns
Weight	2.387001g

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

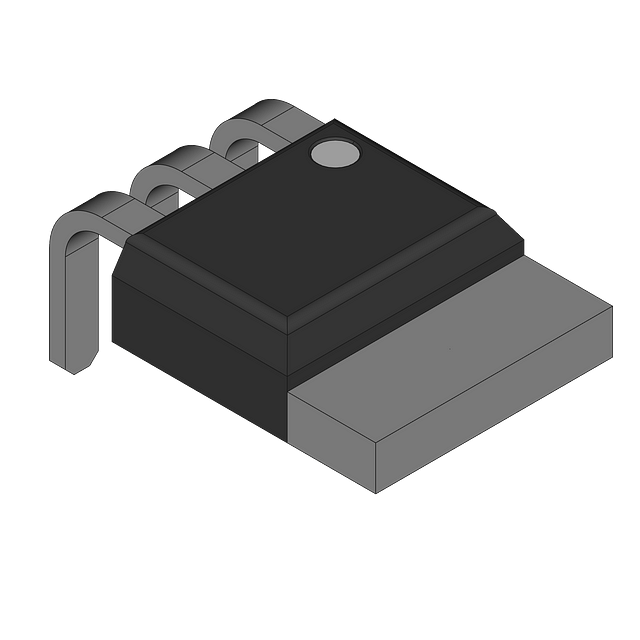

Images

Infineon IPI075N15N3GXKSA1 | Rochester Electronics

Rochester Electronics

Datasheets

Arrow Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

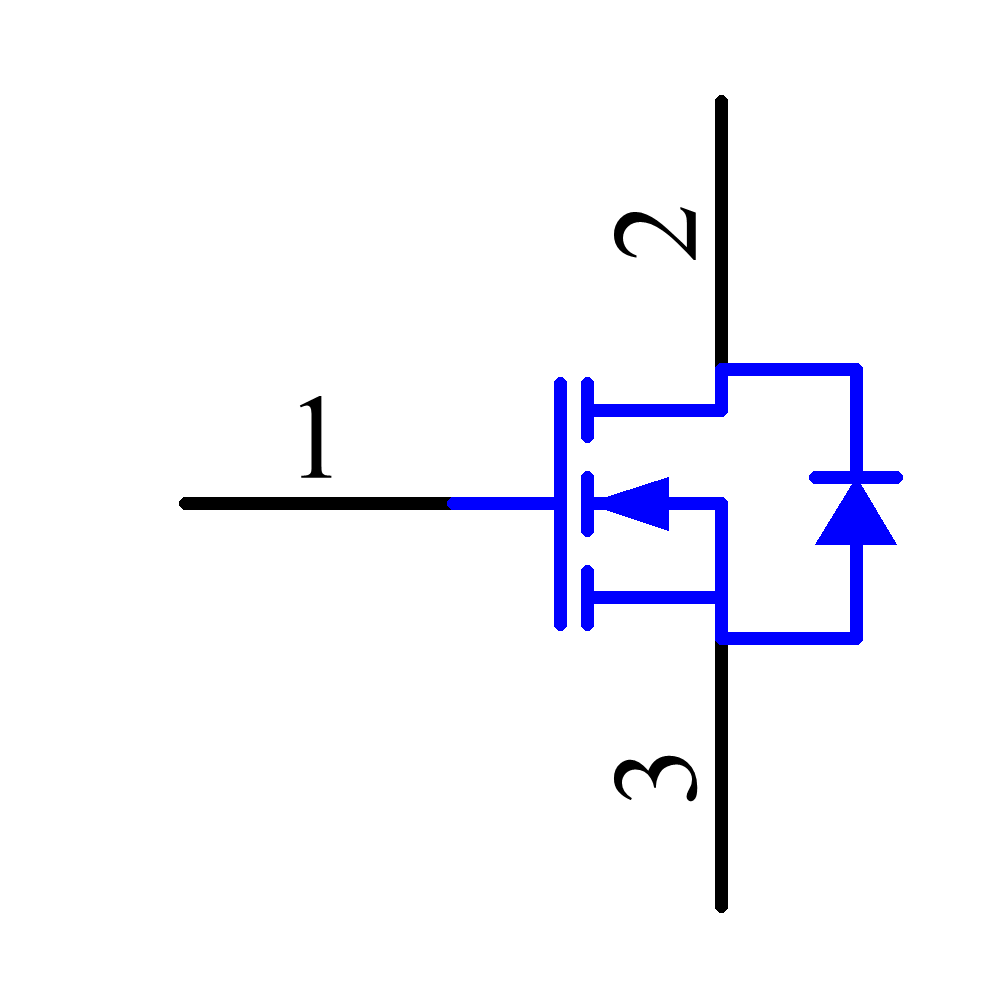

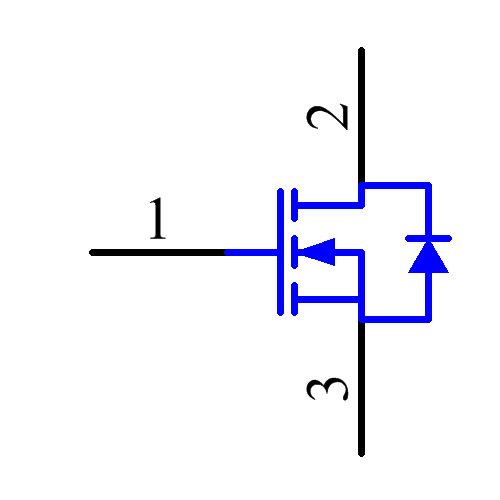

Symbol

IPI075N15N3GXKSA1 Symbol - Infineon

IPI075N15N3GXKSA1 Symbol - Infineon

IPI075N15N3GXKSA1 Symbol - Infineon

IPI075N15N3GXKSA1 Symbol - Infineon

‹ ›

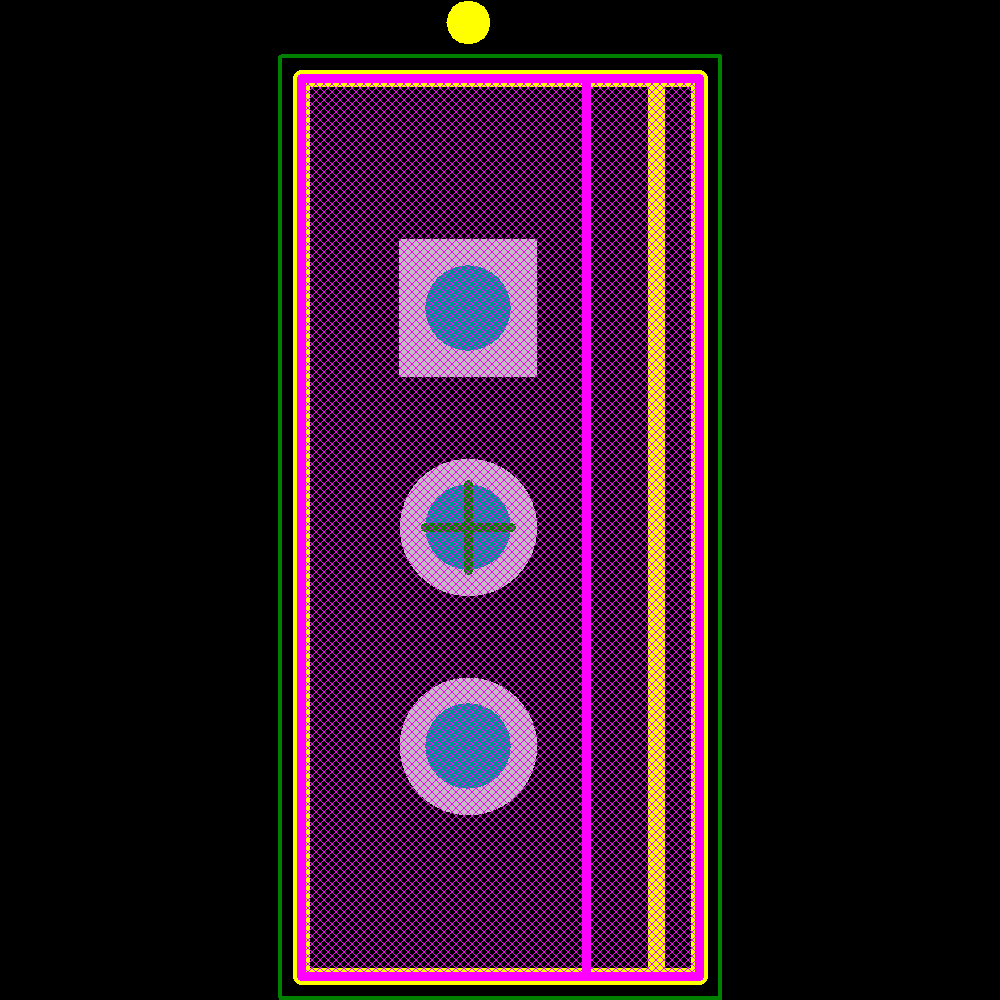

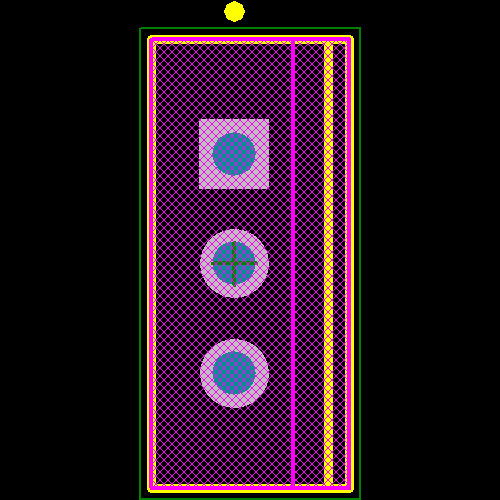

Footprint

IPI075N15N3GXKSA1 Footprint - Infineon

IPI075N15N3GXKSA1 Footprint - Infineon

IPI075N15N3GXKSA1 Footprint - Infineon

IPI075N15N3GXKSA1 Footprint - Infineon

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Infineon	IPB072N15N3GXT	Production
Infineon	IPB072N15N3GATMA1	Production
Infineon	IPB072N15N3G E8187	Production
Fuji Electric	2SK3512-01L	Production
onsemi	FDI8441_F085	Obsolete
STMicroelectronics	STB16NK65Z-S	Obsolete
Alpha & Omega Semiconductor	AOWF4S60	Obsolete
Alpha & Omega Semiconductor	AOWF11S60	Obsolete
Alpha & Omega Semiconductor	AOWF14N50	Obsolete
Alpha & Omega Semiconductor	AOWF20S60	Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Arrow Electronics

IPI075N15N3GXKSA1

US: 393

$

2.4603

2.4603

2.4361

2.4108

2.4108

2.4108

DigiKey

IPI075N15N3GXKSA1-ND

DE: 340

$

6.6445

6.6445

3.5308

6.6445

2.7355

2.7355

Rochester Electronics

IPI075N15N3GXKSA1

US: 385000

$

Mouser

726-IPI075N15N3GXKSA

US: 330

$

6.29

3.35

3.35

3.07

3.00

3.00

EBV Elektronik

EU: 0

$

Avnet

IPI075N15N3GXKSA1

US: 0

$

2.30

2.2646

Future Electronics

CA: 0

$

2.52

2.47

Future Electronics

CA: 0

$

2.52

2.47

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Microchip USA

IPI075N15N3GXKSA1

US: 1963

$

16.303

16.184

Microchip USA

IPI075N15N3GHKSA1

US: 1360

$

15.6836

15.6349

Microchip USA

US: 215

$

Win Source

825996-IPI075N15N3G

CN: 6000

$

4.2838

3.5929

3.5929

3.5929

Win Source

461070-IPI075N15N3GXKSA1

CN: 6000

$

3.9329

3.6791

3.2986

3.2986

Worldway Electronics

HK: 40233

$

1.2532

1.2532

1.2149

1.1509

1.1509

Worldway Electronics

IPI075N15N3GHKSA1

HK: 13748

$

0.4699

0.4699

0.4555

0.4315

0.4315

Worldway Electronics

IPI075N15N3GXKSA1

HK: 13356

$

1.1534

1.1534

1.1181

1.0592

1.0592

Worldway Electronics

HK: 9291

$

0.3285

0.3285

0.3112

0.2766

0.2766

Fmall Co., Limited

IPI075N15N3GXKSA1

HK: 11490

$

4.9699

4.9699

4.9699

4.6493

4.3821

4.008

Aztech

IT: 703

$

12.222

12.222

12.222

12.222

12.222

12.222

Aztech

IPI075N15N3GHKSA1

IT: 573

$

8.72

8.72

8.72

8.72

8.72

8.72

Verical

IPI075N15N3GXKSA1

US: 385000

$

2.90

2.725

Verical

IPI075N15N3GXKSA1

US: 21000

$

3.1287

3.1287

Verical

IPI075N15N3GXKSA1

US: 393

$

2.482

2.4576

2.4321

2.3391

2.3391

Chipsmall Limited

IPI075N15N3GXKSA1

CN: 164773

$

5.8098

5.2288

5.2288

3.3406

2.9049

2.9049

Chipsmall Limited

CN: 5000

$

7.746

6.9714

6.9714

4.454

3.873

3.873

Eurochip Technologies LTD

IPI075N15N3GXKSA1

IL: 23976

$

2.907

2.907

2.907

2.907

2.907

2.907

Eurochip Technologies LTD

IPI075N15N3GHKSA1

IL: 247

$

Augswan

CN: 19596

$

1.8461

1.8092

1.8092

1.7538

1.6984

1.6246

SHENGYU ELECTRONICS

CN: 19596

$

3.8284

3.7518

3.7518

3.64

3.52

3.37

SHENGYU ELECTRONICS

IPI075N15N3GXKSA1

CN: 6124

$

9.0092

8.829

8.829

8.56

8.29

7.93

Anlinkda

HK: 8272

$

1.206

1.08

1.08

0.983

0.948

0.931

Fly-Wing Technology

IPI075N15N3GXKSA1

HK: 2945

$

6.7127

5.5081

5.5081

5.3352

4.9913

4.9913

VNN Services

IPI075N15N3GHKSA1

EU: 2630

$

6.27

6.15

6.15

6.03

5.91

5.91

Ansinor

IPI075N15N3GXKSA1

CN: 345

$

5.5207

5.5207

2.7023

2.3037

2.3037

Bettlink

IPI075N15N3GXKSA1

HK: 341

$

5.1578

4.5244

4.5244

4.1131

3.6264

3.4212

Classic Components

IPI075N15N3GXKSA1

US: 500

$

Heisener Electronics

IPI075N15N3GXKSA1

CN: 6459

$

XingHuan International

IPI075N15N3GHKSA1

CN: 21962

$

XingHuan International

CN: 13090

$

XingHuan International

IPI075N15N3GXKSA1

CN: 8299

$

Suntronic

IPI075N15N3GHKSA1

CN: 158

$

Suntronic

IPI075N15N3GXKSA1

CN: 155

$

Abacus Technologies

US: 63

$

Abacus Technologies

IPI075N15N3GXKSA1

US: 0

$

TME

IPI075N15N3GXKSA1

PL: 0

$

6.1514

5.6213

2.8969

2.8969

2.8969

2.8969

Sourcengine

IPI075N15N3GXKSA1

US: 120000

$
