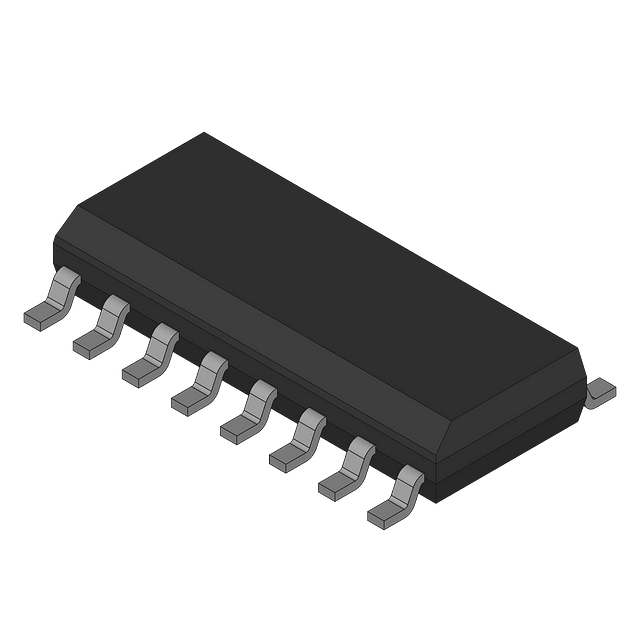

IR22771SPBF - Infineon
1200 V current sense gate-driver support IC for AC motor control, SOIC 16W, RoHS
Technical Details
| Bandwidth | 120kHz |
| Case/Package | SOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.65mm |
| Height - Seated (Max) | 2.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2005-05-10 |
| Length | 10.3mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 250mV |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 20V |
| Min Input Voltage | -250mV |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 15V |
| Package Quantity | 1980 |
| Power Dissipation | 250mW |
| Quiescent Current | 6mA |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Automotive |
| Terminal Pitch | 1.27mm |
| Type | Integrated Circuit (IC) |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
