S25FL256SDSMFV011 - Infineon
NOR Flash Serial-SPI 3V/3.3V 256M-bit 256M x 1 8ns Automotive 16-Pin SOIC W Tube
Technical Details
| Access Time | 8ns |
| Ambient Temperature Range High | 105°C |
| Case/Package | SOP |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | 3A991.B.1.A |
| Frequency | 80MHz |
| Height | 2.65mm |
| Height - Seated (Max) | 2.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2013-12-20 |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Max Frequency | 80MHz |
| Max Operating Temperature | 105°C |
| Max Supply Current | 100mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 32MB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

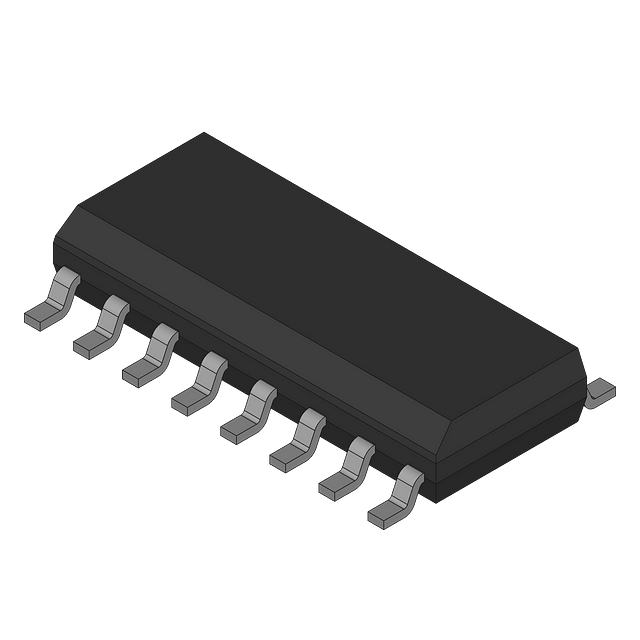

Images
