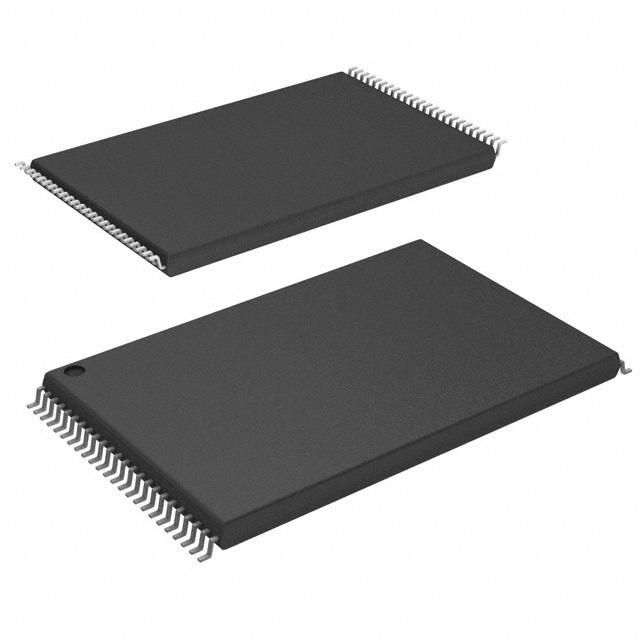

S29JL064J60TFI003 - Infineon
NOR Flash Parallel 3V/3.3V 64M-bit 8M x 8/4M x 16 60ns 48-Pin TSOP T/R
Technical Details
| Access Time | 60ns |
| Case/Package | TSSOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Density | 64Mb |
| Export Control Classification Number (ECCN) Code | 3A991.B.1.A |
| Height - Seated (Max) | 1.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Parallel |
| Length | 18.4mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Supply Current | 45mA |
| Max Supply Voltage | 3.6V |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Pins | 48 |
| Number of Terminals | 48 |
| Operating Supply Voltage | 3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Width | 12mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Micron | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Winbond | Obsolete | ||
| Winbond | Obsolete | ||
| Eon Silicon Solution | Obsolete | ||
| Macronix | Obsolete | ||
| Micron | Obsolete | ||
| Samsung | Production | ||
| Macronix | Production | ||
| Micron | Obsolete |
