Technical Details
| Case/Package | TO-262-3 |
| China RoHS | Compliant |
| Continuous Drain Current (ID) | 11.6A |
| Current Rating | 11.6A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 380mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 8ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 9.45mm |
| Input Capacitance | 1.2nF |
| Introduction Date | 2003-03-04 |
| Lead Free | Lead Free |
| Length | 10.36mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125W |
| Min Breakdown Voltage | 500V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 125W |
| Radiation Hardening | No |
| Rds On Max | 380mΩ |
| REACH SVHC | Yes |
| Rise Time | 8ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 45ns |
| Turn-On Delay Time | 10ns |
| Voltage Rating (DC) | 560V |
| Width | 4.57mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

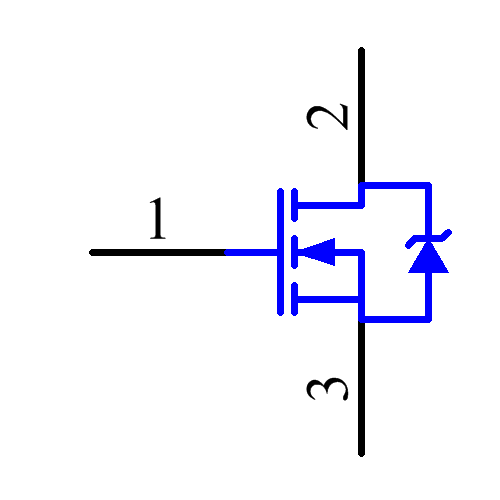

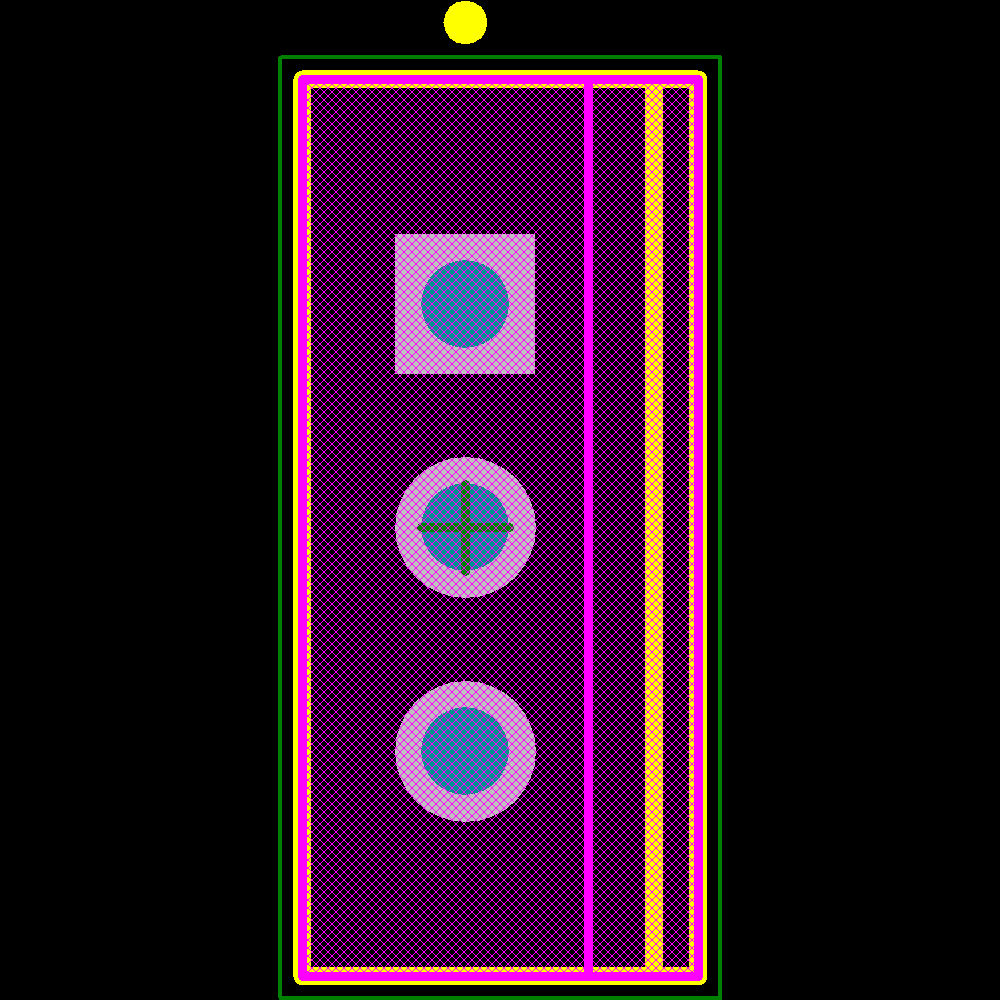

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Vishay | Obsolete | ||
| Alpha & Omega Semiconductor | Production | ||
| International Rectifier | Obsolete | ||
| Infineon | NRND | ||
| International Rectifier | Obsolete | ||
| International Rectifier | Obsolete | ||
| Vishay | Production | ||
| Infineon | Obsolete | ||
| Infineon | Unknown |
