Integrated Circuits (ICs) > RF Semiconductors and Devices > RF Receivers, Transceivers

TDA5235XUMA1 - Infineon

RF Receiver ASK/FSK 3.3V/5V Automotive AEC-Q100 28-Pin TSSOP T/R

Technical Details

Case/Package	TSSOP
China RoHS	Compliant
Current - Receiving	15mA
Depth	4.4mm
Export Control Classification Number (ECCN) Code	EAR99
Frequency	928MHz
Halogen Free	Halogen Free
Height - Seated (Max)	1.2mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.01
Introduction Date	2010-02-19
Lead Free	Lead Free
Length	9.7mm
Lifecycle Status	Production
Max Frequency	320MHz
Max Operating Temperature	105°C
Max Supply Current	15µA
Max Supply Voltage	3.6V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of Circuits	1
Number of Pins	28
Number of Terminals	28
Operating Supply Voltage	3.3V
Package Quantity	3000
Packaging	Tape & Reel
REACH SVHC	Yes
RoHS	Compliant
Sensitivity (dBm)	-117dBm
Temperature Grade	Industrial
Terminal Pitch	650µm
Width	4.4mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Infineon TDA5235XUMA1 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

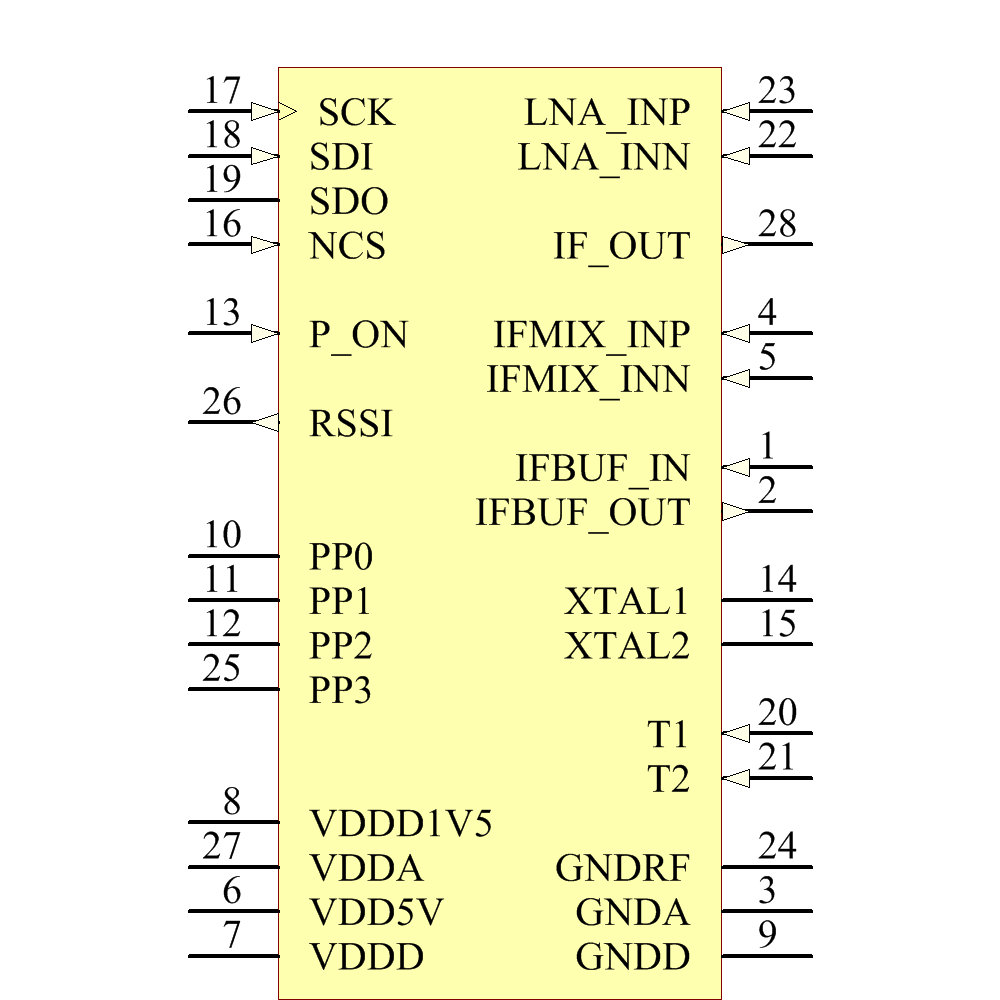

Symbol

TDA5235XUMA1 Symbol - Infineon

TDA5235XUMA1 Symbol - Infineon

TDA5235XUMA1 Symbol - Infineon

TDA5235XUMA1 Symbol - Infineon

‹ ›

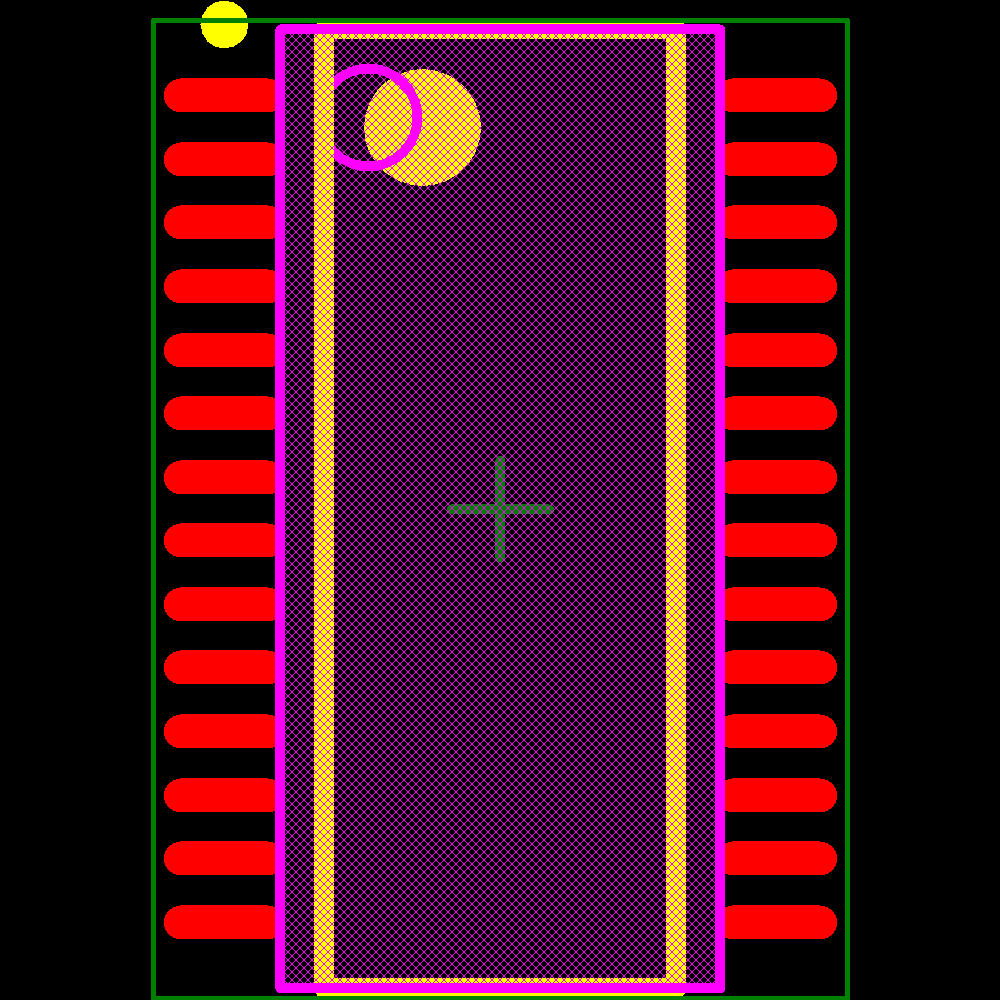

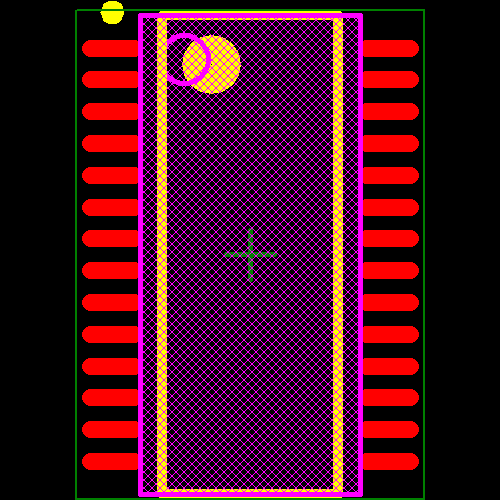

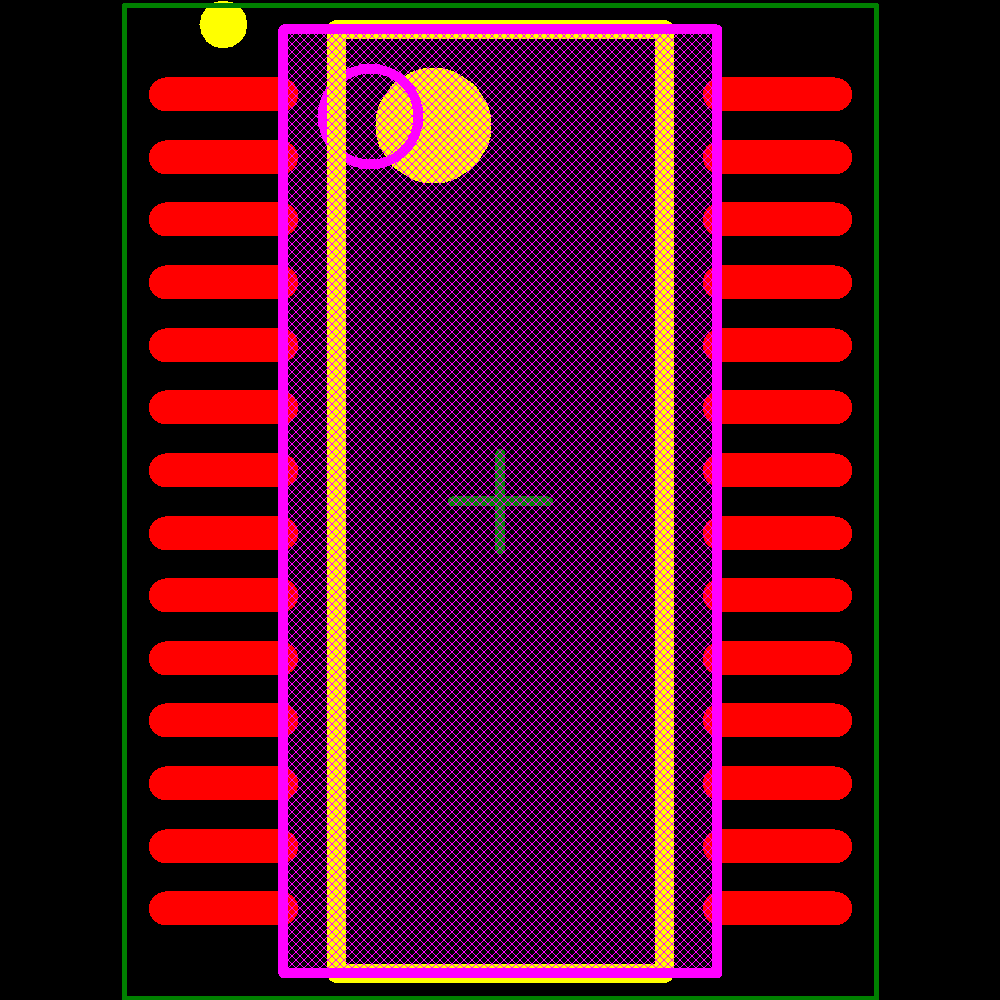

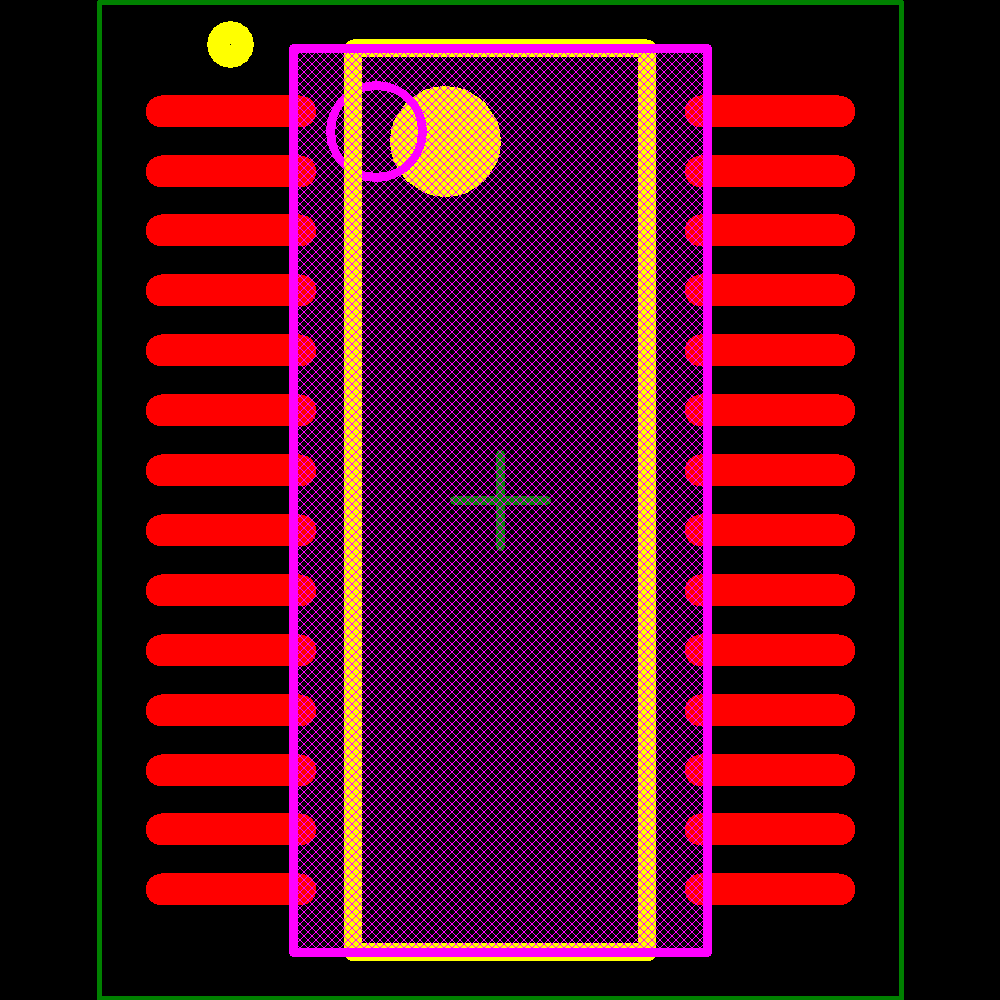

Footprint

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

TDA5235XUMA1 Footprint - Infineon

‹ ›
