TLD2314ELXUMA1 - Infineon
IC LED DRVR LINEAR 120MA 14SSOP LED Driver IC 3 Output Linear Dimming 120mA PG-SSOP-14-5
Technical Details
| Case/Package | SSOP |
| China RoHS | Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Halogen Free |
| Height | 1.7mm |
| Height - Seated (Max) | 1.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2013-09-09 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Output Current | 120mA |
| Max Output Voltage | 40V |
| Max Power Dissipation | 1.5W |
| Max Supply Current | 1.9mA |
| Max Supply Voltage | 40V |
| Min Input Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | -1V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 18V |
| Number of Channels | 3 |
| Number of Characters | 9 |
| Number of Circuits | 1 |
| Number of Outputs | 3 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 13.5V |
| Output Current | 60mA |
| Output Current per Channel | 120mA |
| Output Voltage | 40V |
| Package Quantity | 2500 |
| Packaging | Tape & Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Terminal Pitch | 650µm |
| Tolerance | 7% |
| Type | Integrated Circuit (IC) |
| Weight | 121.789551mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

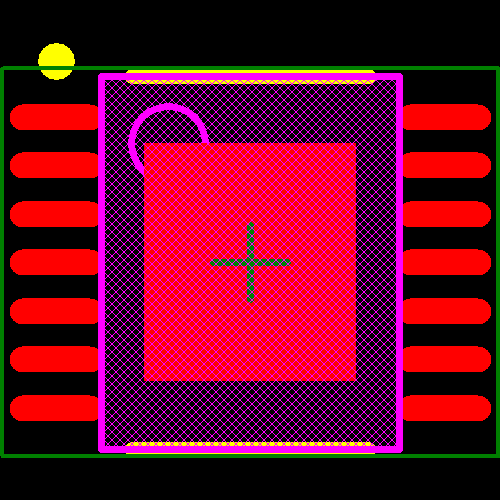

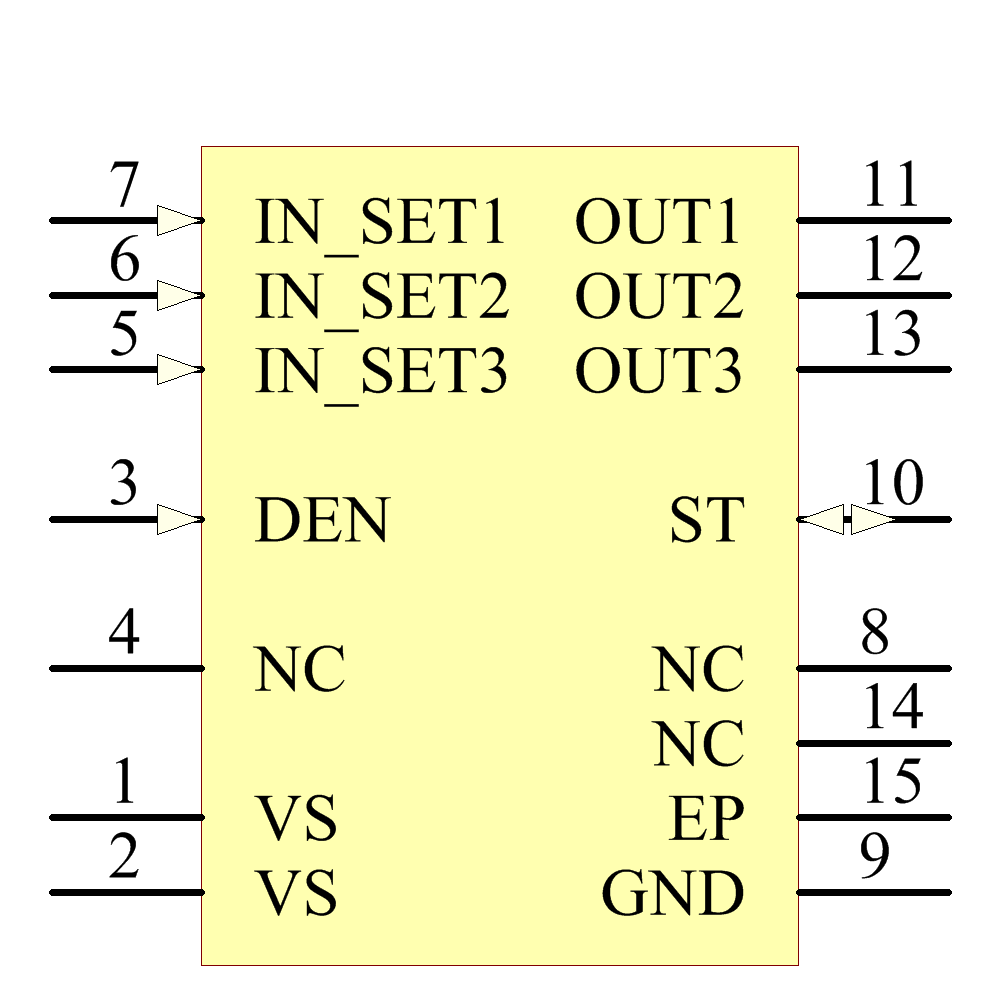

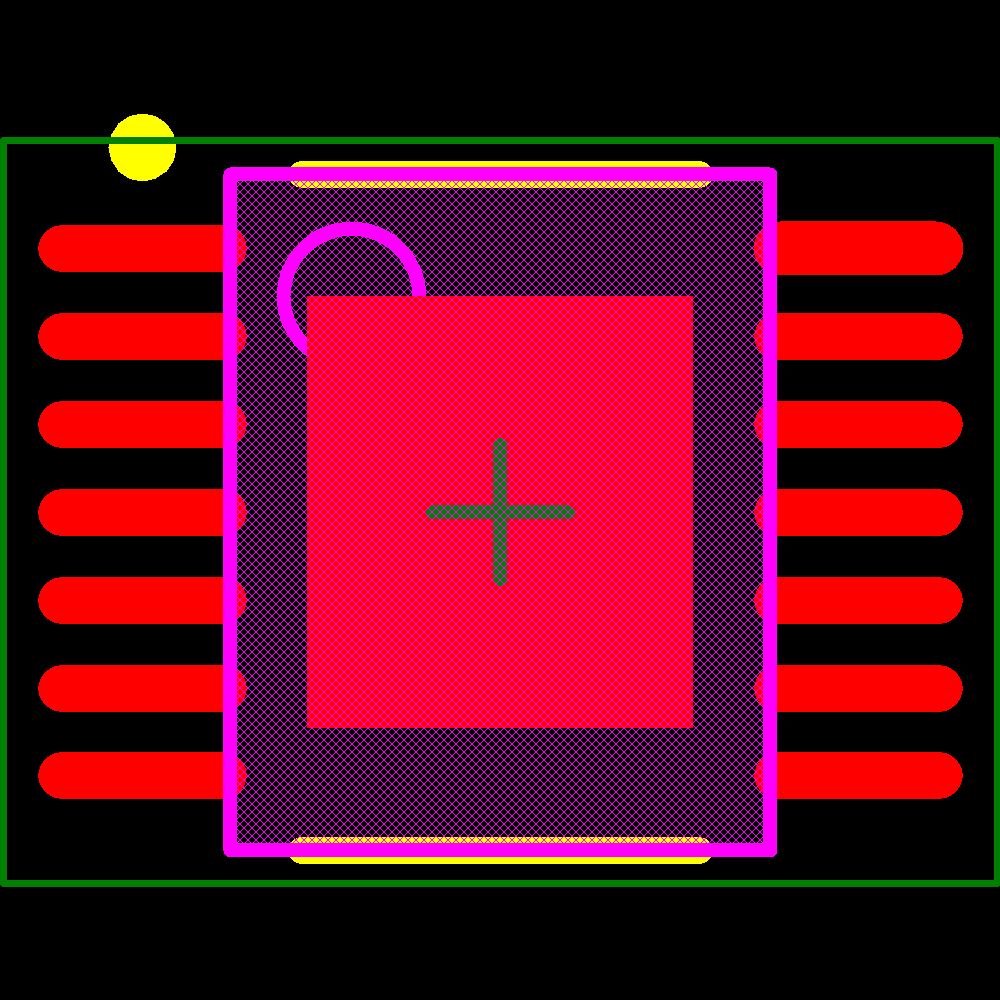

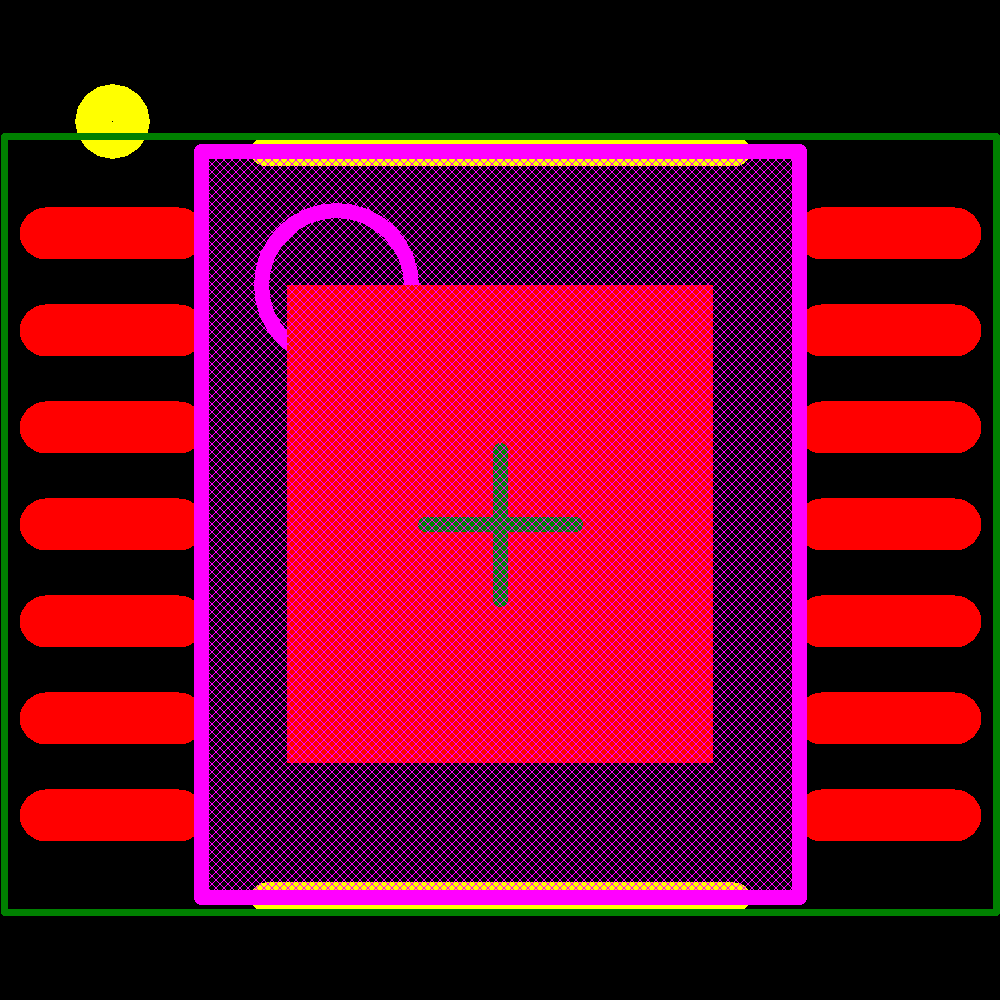

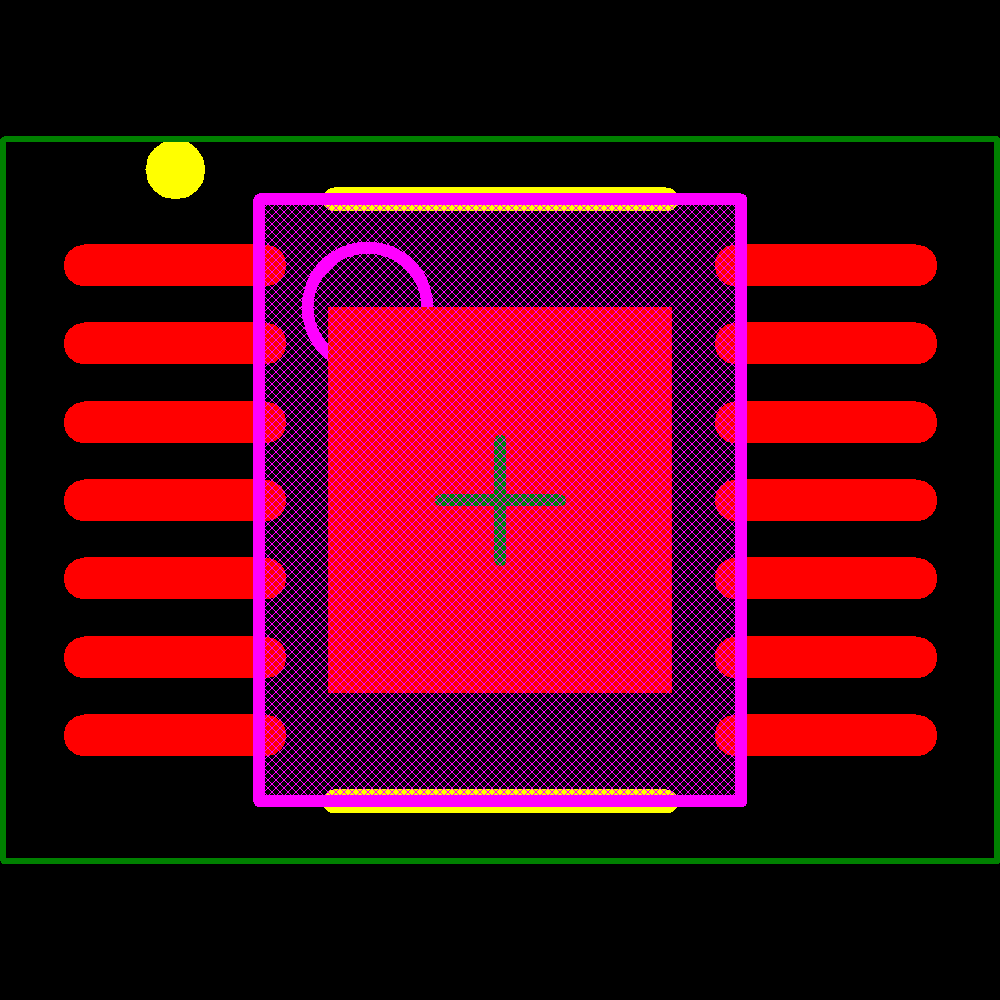

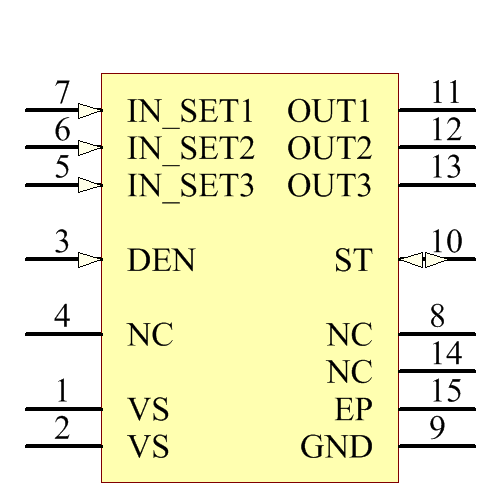

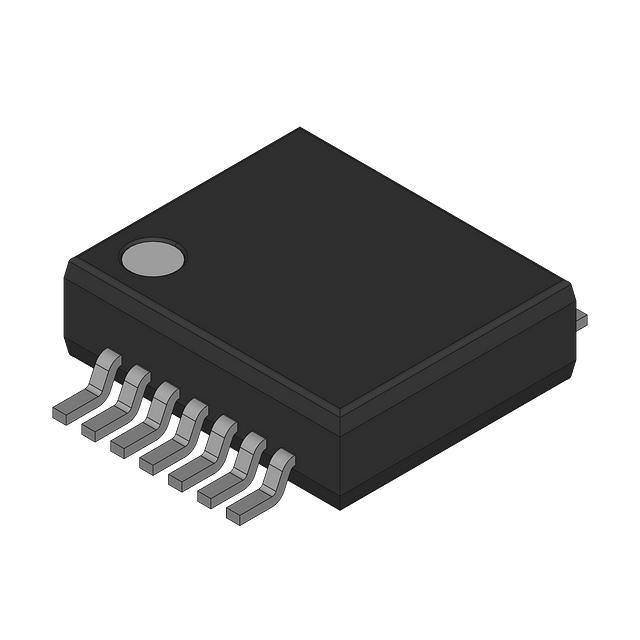

Rochester Electronics
