TLE4240-3M - Infineon
LED Driver, 3-Segment, BIPolar, PDSO5, GREEN, PLASTIC, SCT595, 5 PIN
Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Not Halogen Free |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2007-01-08 |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 1.5mA |
| Max Operating Temperature | 150°C |
| Max Supply Voltage | 45V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of Characters | 3 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Segments | 3 |
| Number of Terminals | 5 |
| Operating Supply Voltage | 13.5V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Terminal Pitch | 950µm |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

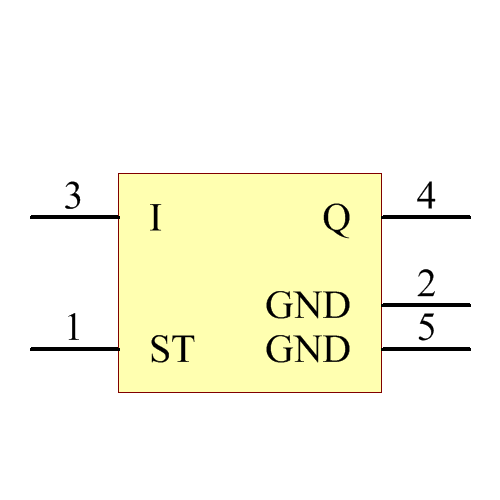

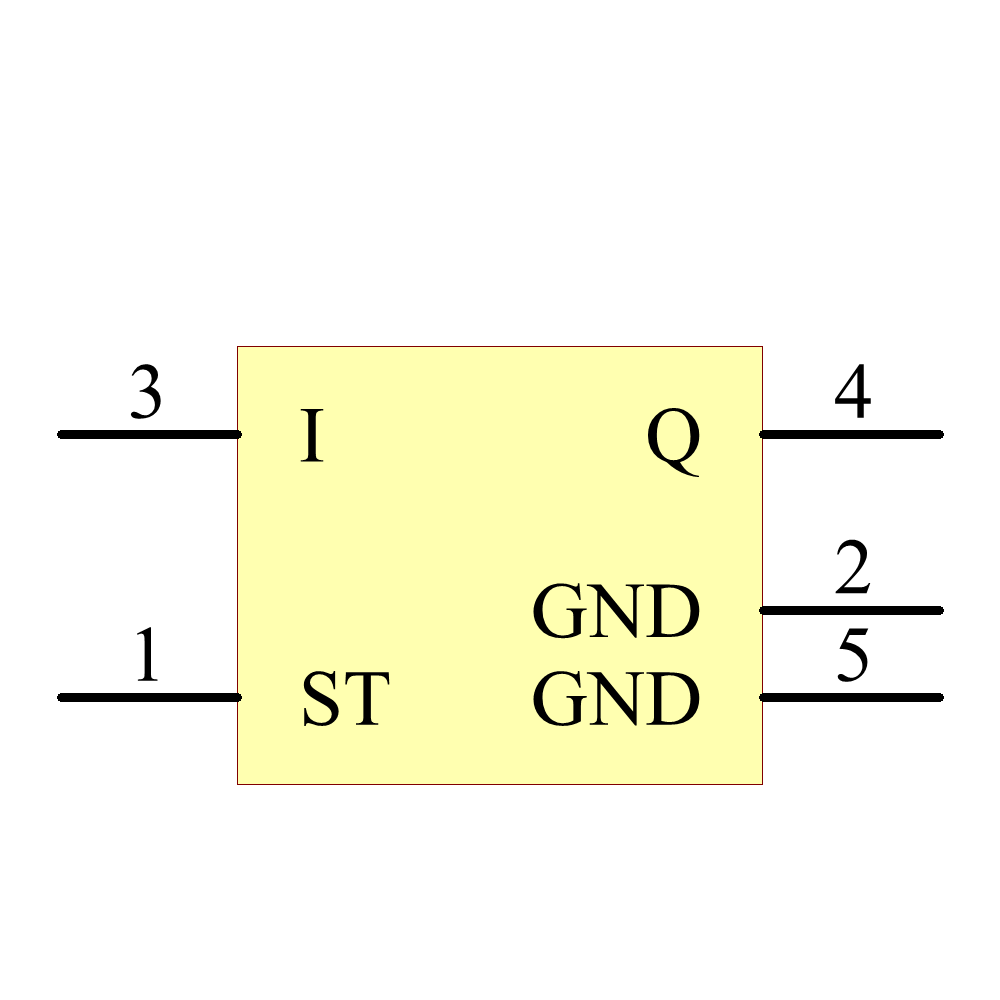

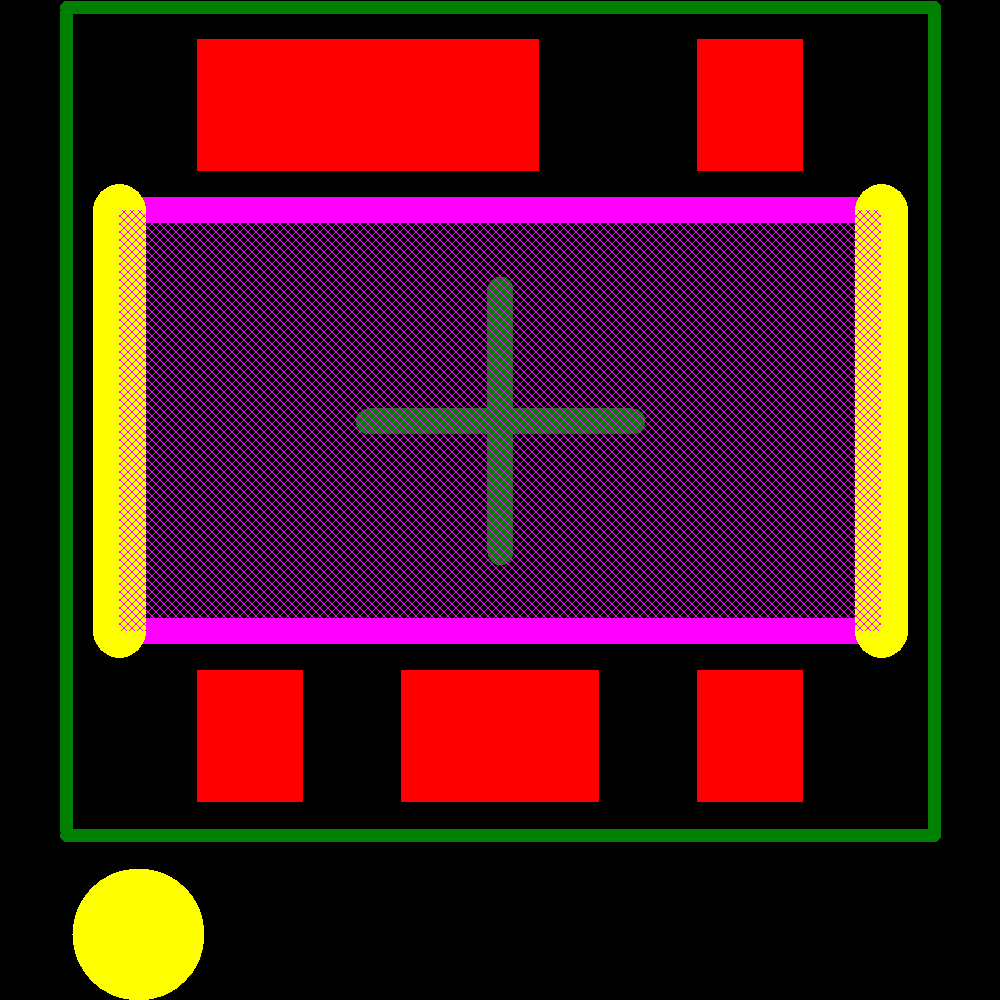

Images
