TLE7233GXUMA1 - Infineon
IC PWR DRIVER N-CHAN 1: 4 24SSOP Power Switch/Driver 1: 4 N-Channel 390mA PG-SSOP-24-5
Technical Details
| Case/Package | SSOP |
| China RoHS | Compliant |
| Country of Origin | Malaysia |
| Drain to Source Voltage (Vdss) | 54V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fault Protection | Over Temperature |
| Halogen Free | Halogen Free |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Interface | SPI, Serial |
| Introduction Date | 2008-03-19 |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Max Dual Supply Voltage | 54V |
| Max Operating Temperature | 150°C |
| Max Output Current | 390mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 5mA |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Number of Outputs | 4 |
| Number of Pins | 24 |
| Number of Terminals | 24 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Output Configuration | Low Side |
| Output Current | 390mA |
| Packaging | Tape & Reel |
| Quiescent Current | 10A |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 650µm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

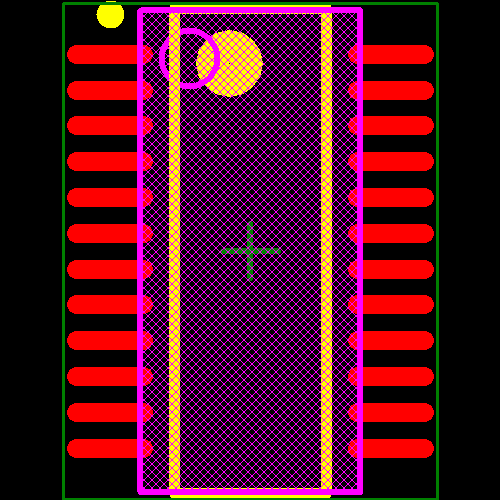

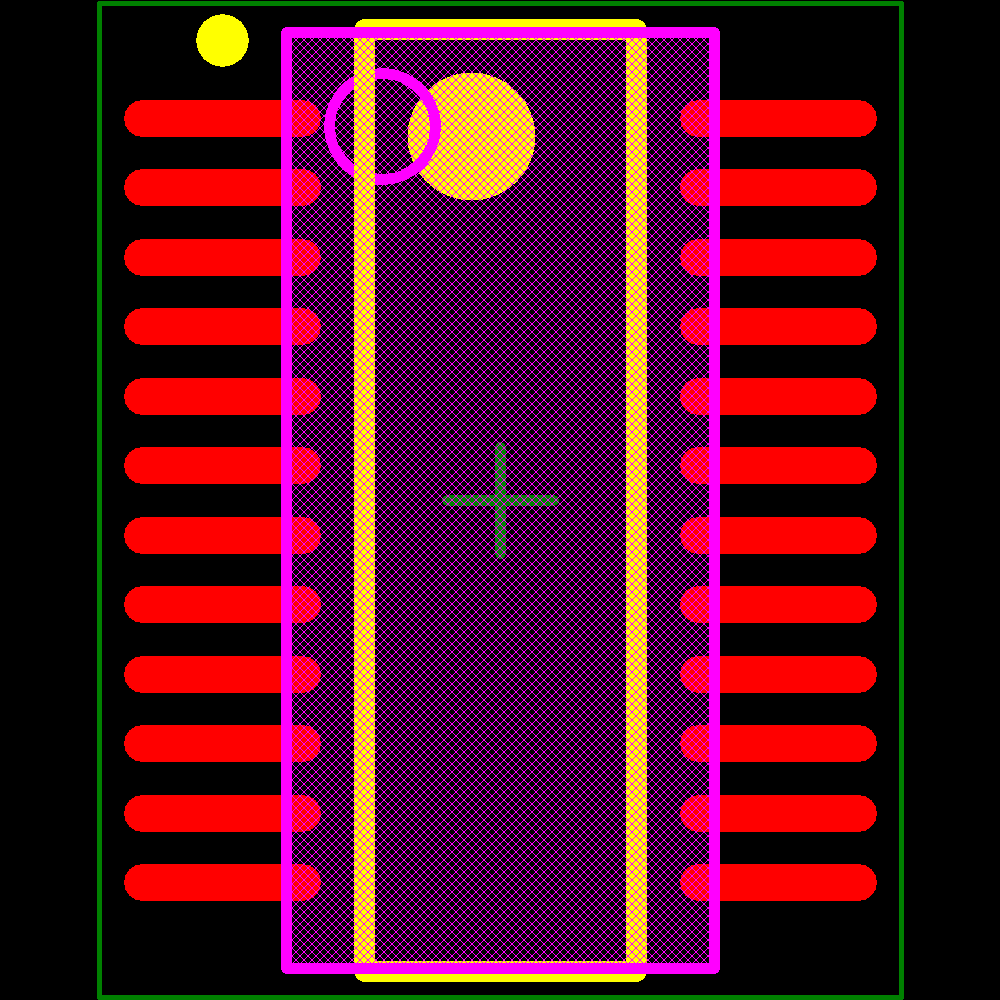

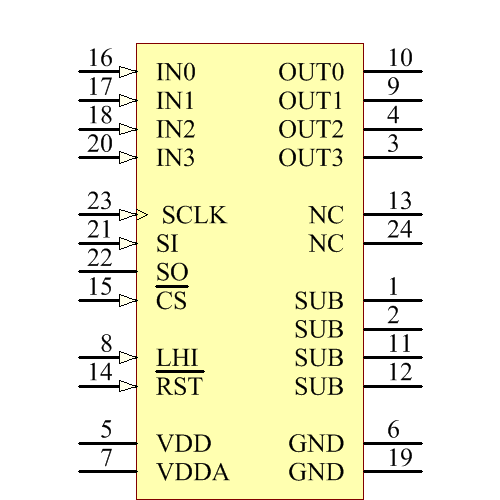

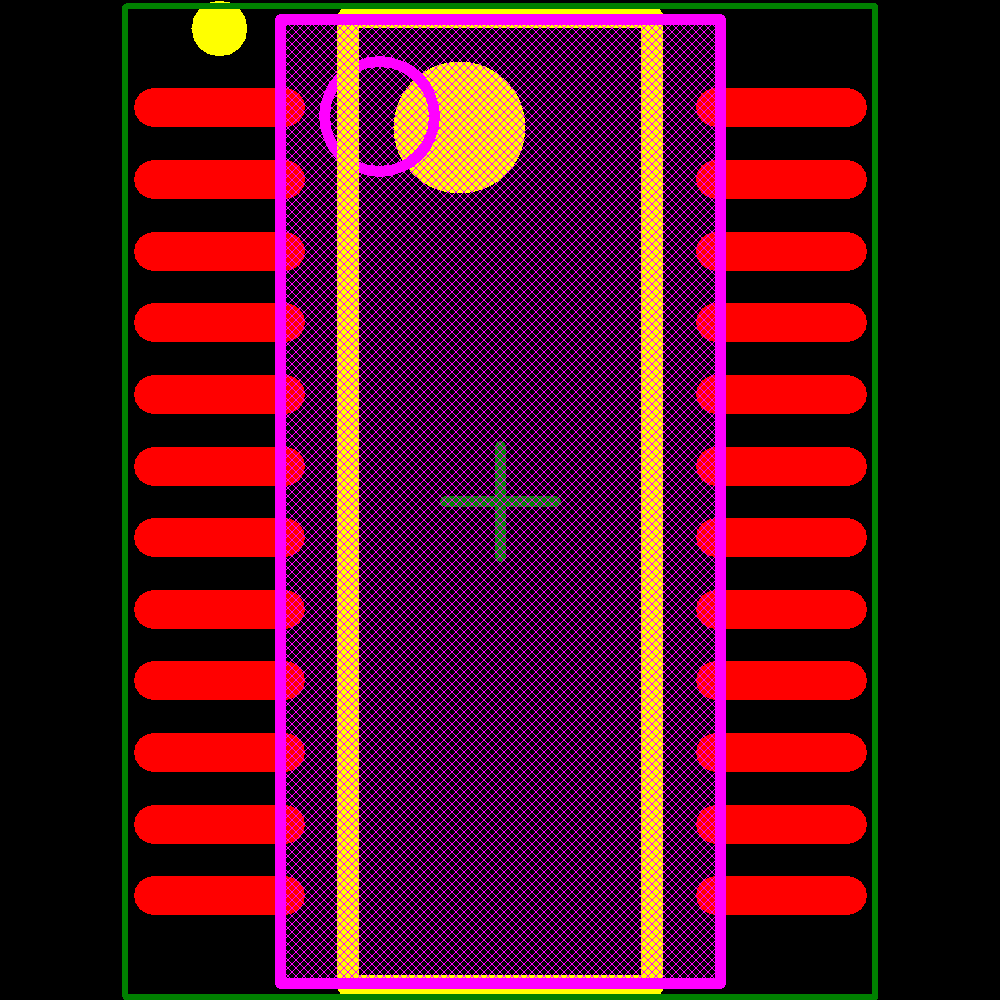

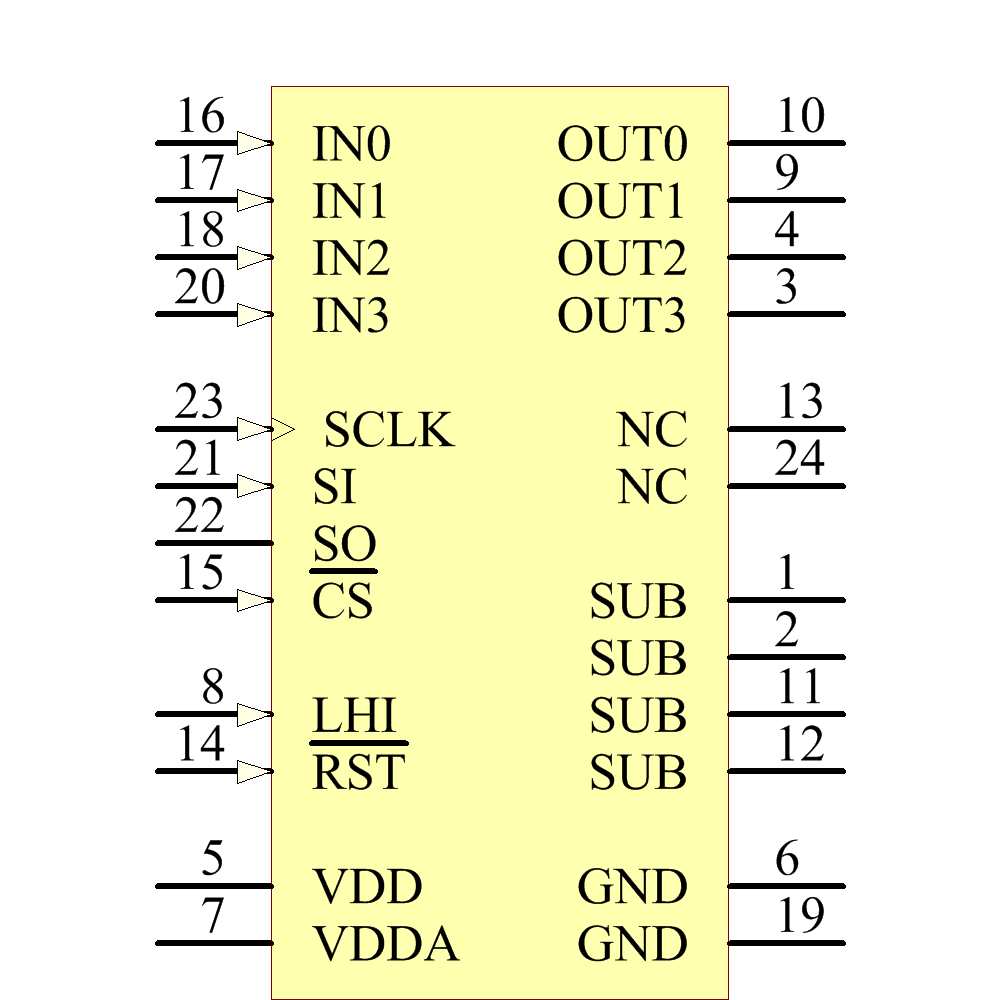

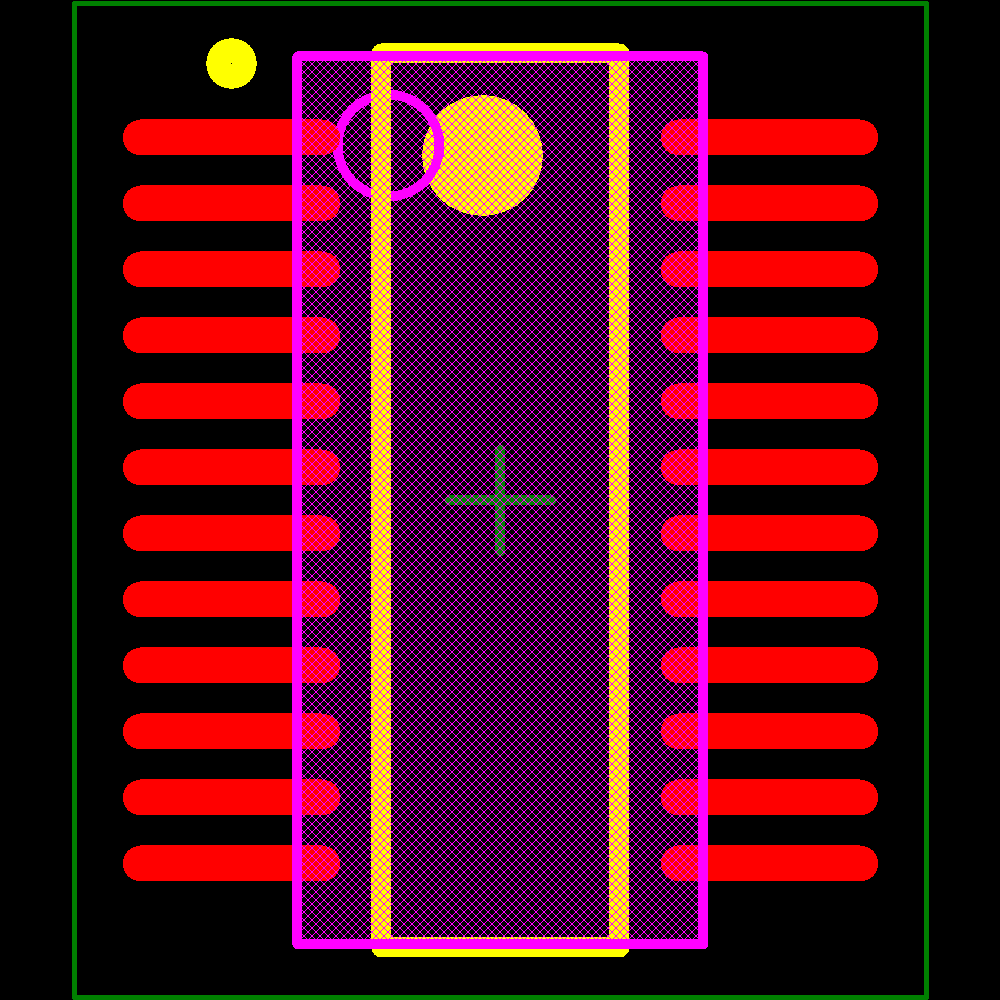

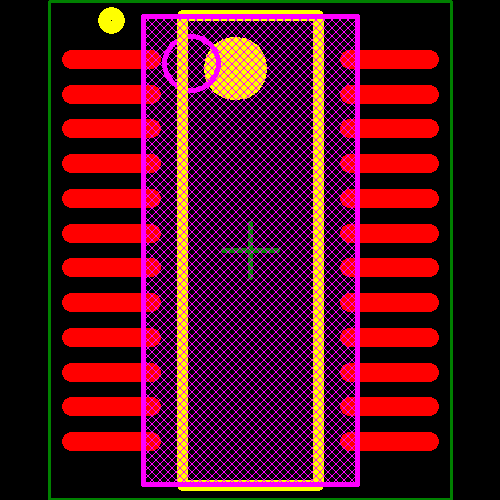

Images
