IS61NLP25636A-200TQLI - ISSI
IC, SRAM, 9 Mbit, 256K x 8bit, 3.1 ns Access Time, 3.135 V to 3.465 V supply, TQFP-100
Technical Details
| Access Time | 3.1ns |
| Address Bus Width | 18b |
| Case/Package | LQFP |
| China RoHS | Compliant |
| Country of Origin | Mainland China, Taiwan |
| Density | 9Mb |
| Export Control Classification Number (ECCN) Code | 3A991.b.2.a |
| Frequency | 200MHz |
| Height - Seated (Max) | 1.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.41 |
| Interface | Parallel |
| Introduction Date | 2005-02-02 |
| Length | 20mm |
| Lifecycle Status | Production |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 280mA |
| Max Supply Voltage | 3.465V |
| Memory Size | 1.1MB |
| Memory Type | RAM, SRAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.135V |
| Nominal Supply Current | 280mA |
| Number of Circuits | 1 |
| Number of Pins | 100 |
| Number of Ports | 4 |
| Number of Terminals | 100 |
| Number of Words | 256000 |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sync/Async | Synchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 14mm |
| Word Size | 36b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

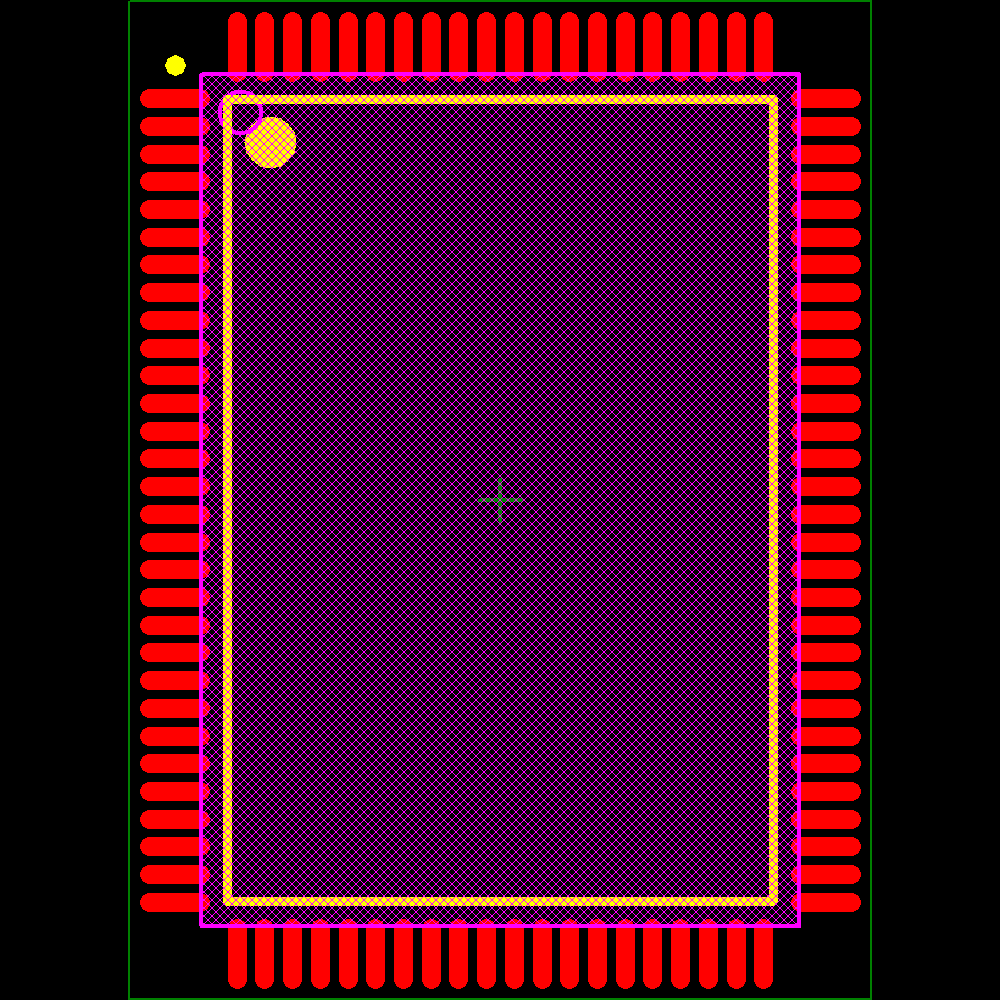

Images
