IS61NLP51236-250TQLI - ISSI
SRAM Chip Sync Quad 3.3V 18M-Bit 512K x 36 2.6ns 100-Pin TQFP
Technical Details
| Access Time | 2.6ns |
| Address Bus Width | 19b |
| Case/Package | LQFP |
| China RoHS | Compliant |
| Density | 18Mb |
| Frequency | 250MHz |
| Height - Seated (Max) | 1.6mm |
| Interface | Parallel |
| Length | 20mm |
| Lifecycle Status | Production |
| Max Frequency | 250MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 500mA |
| Max Supply Voltage | 3.465V |
| Memory Size | 2.3MB |
| Memory Type | RAM, SDR, SRAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.135V |
| Nominal Supply Current | 500mA |
| Number of Circuits | 1 |
| Number of Pins | 100 |
| Number of Ports | 4 |
| Number of Terminals | 100 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sync/Async | Synchronous |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 14mm |
| Word Size | 36b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

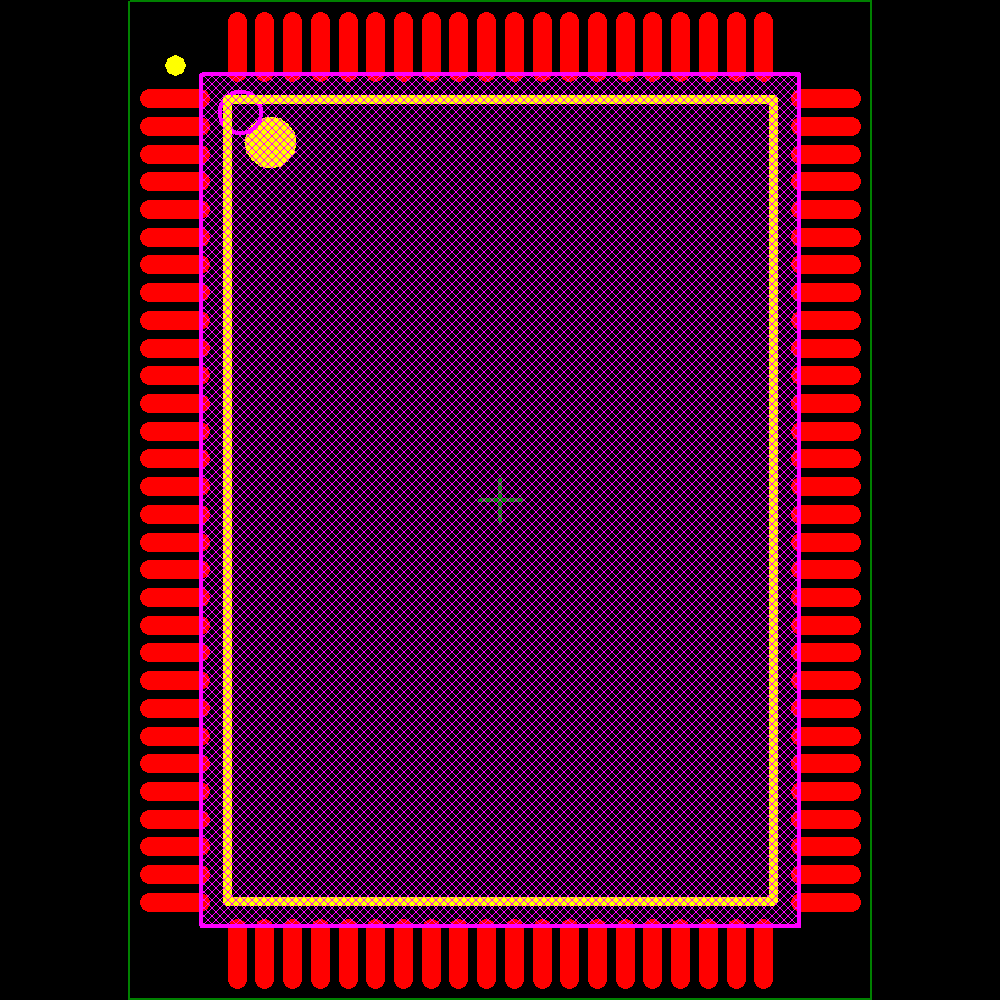

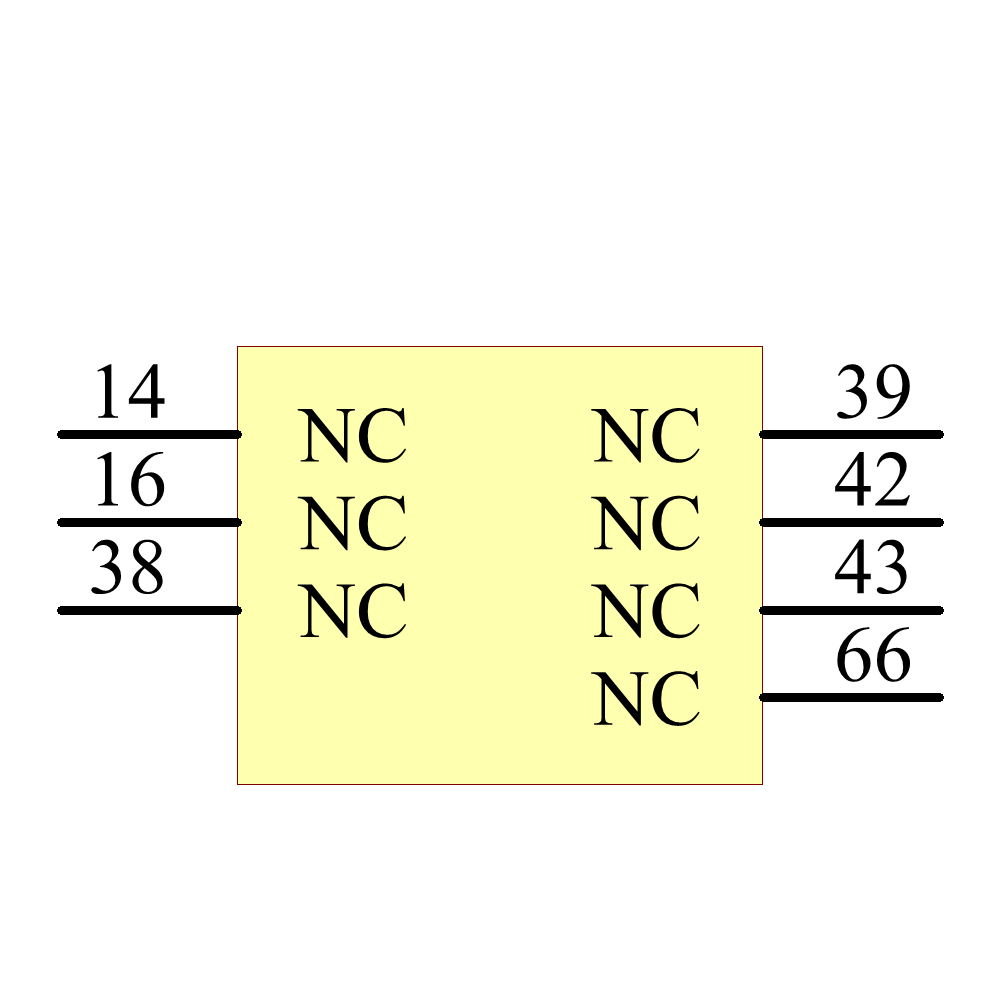

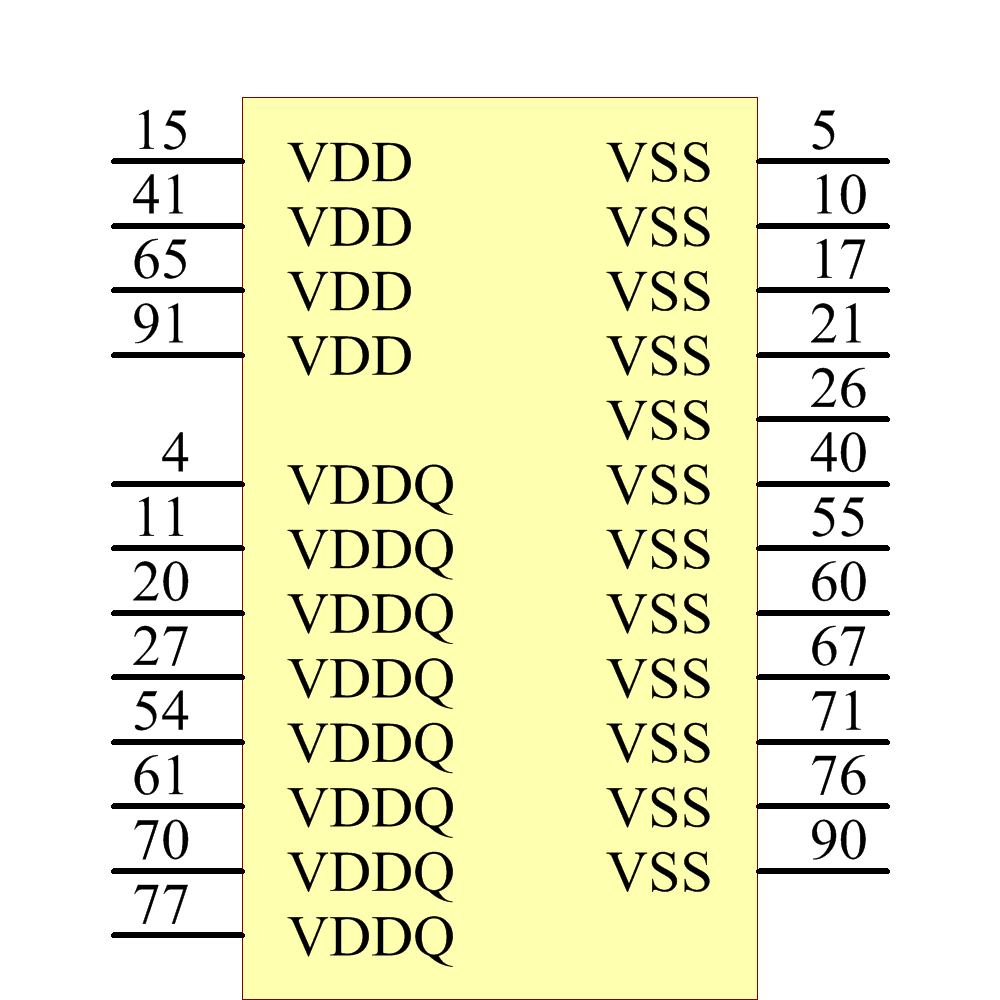

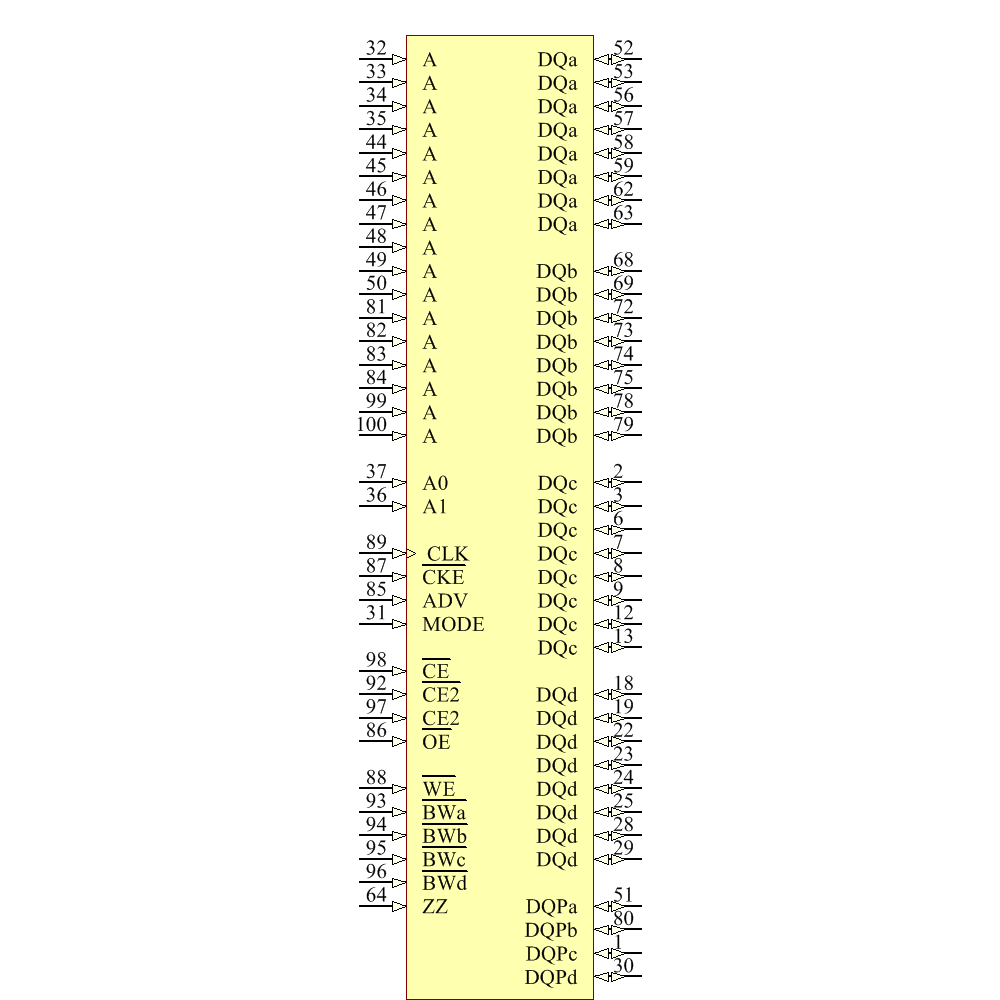

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet |
US: 0
|
$ | 21.5908 | 19.0672 | 18.7167 | |||||
