Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Country of Origin | Philippines |
| Data Polarity | DC |
| Forward Current | 50mA |
| Height | 4.445mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 2mA |
| Introduction Date | 2008-07-25 |
| Isolation Voltage | 3750Vrms |
| Lead Free | Lead Free |
| Length | 9.652mm |
| Load Current | 1A |
| Max Length | 9.652mm |
| Max Operating Temperature | 85°C |
| Max Output Voltage | 60V |
| Max Power Dissipation | 800mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Elements | 2 |
| Number of Pins | 8 |
| On-State Resistance | 400mΩ |
| Output Current | 1A |
| Output Voltage | 60V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Resistance | 400mΩ |
| RoHS | Compliant |
| Termination | Gull Wing |
| Throw Configuration | DPST, SPST |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

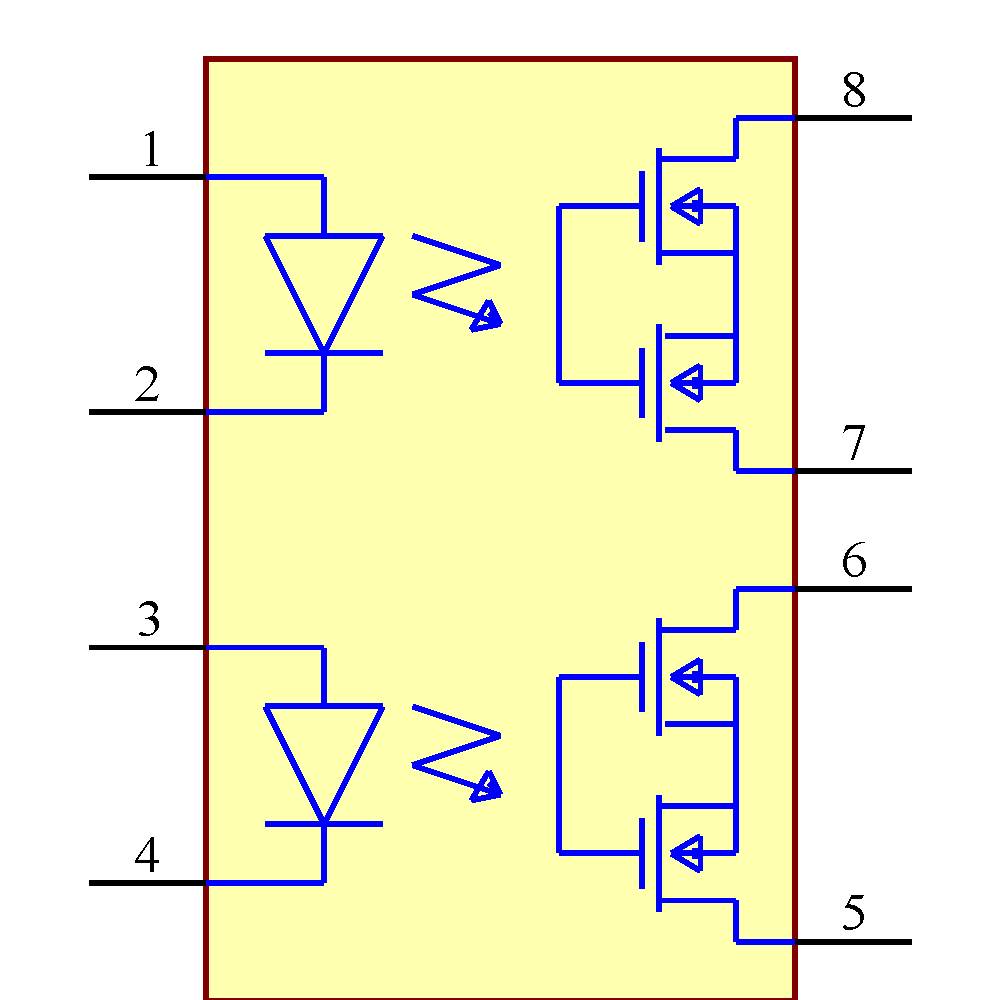

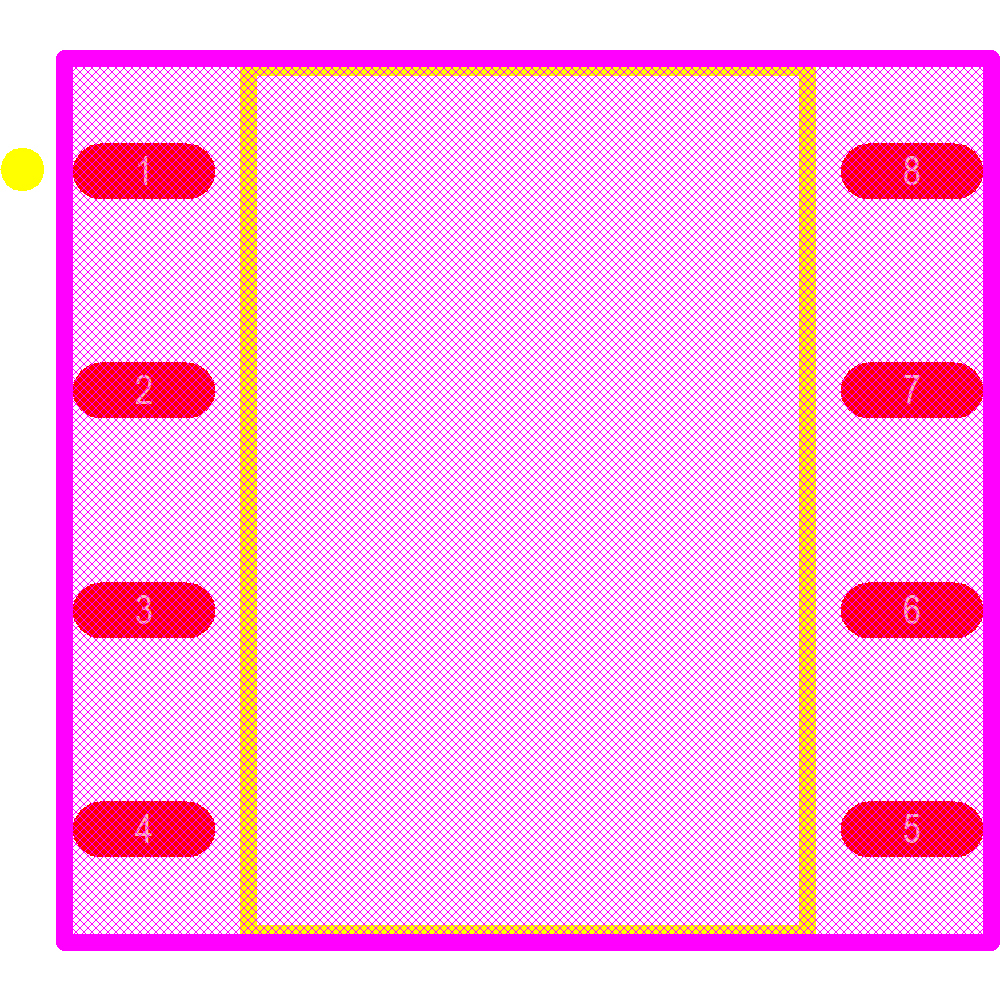

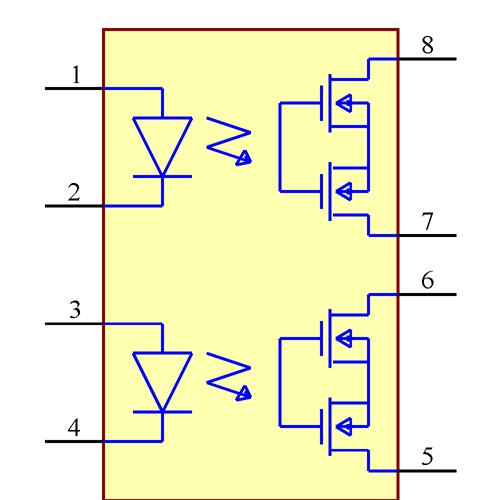

Images
