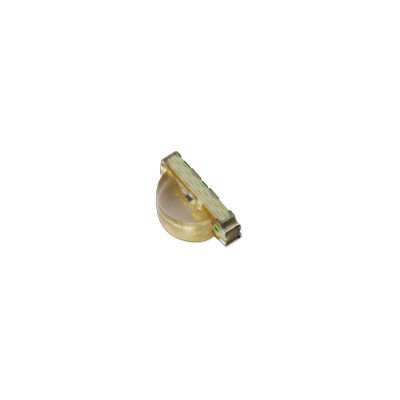

APFA3010SEKJ3ZGKQBKC - Kingbright
LED Tri-Color Blue/Green/Hyper Red 460nm/515nm/640nm 4-Pin SMD T/R
Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Blue, Green, Red |
| Country of Origin | Mainland China |
| Dominant Wavelength | 465nm |
| Forward Current | 25mA |
| Forward Voltage | 3.3V |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2015-12-11 |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Intensity | 70mcd |
| Max Junction Temperature (Tj) | 115°C |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Terminals | 4 |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000 |
| Shape | Rectangular |
| Test Current | 20mA |
| Viewing Angle | 120° |
| Wavelength | 625nm |
| Width | 1.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
