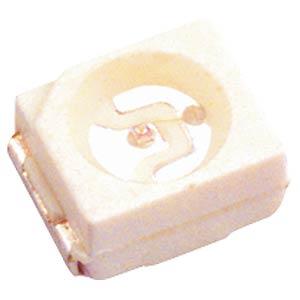

KA-3528ES - Kingbright
3.5 X 2.8 MM SURFACE MOUNT LED LAMP Single Color LED, High Efficiency Red, Water Clear, 2.4mm
Technical Details
| Case/Package | PLCC |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Forward Current | 30mA |
| Forward Voltage | 2.5V |
| Height | 1.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2011-07-01 |
| Lifecycle Status | Production |
| Luminous Intensity | 25mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Wavelength | 627nm |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Shape | Round |
| Terminal Pitch | 3.1mm |
| Viewing Angle | 120° |
| Wavelength | 625nm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
