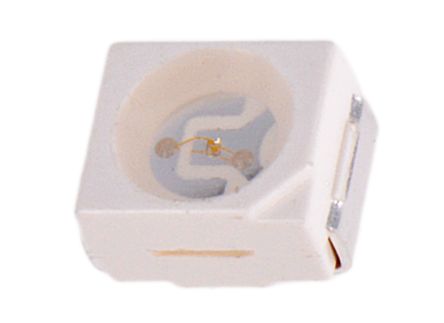

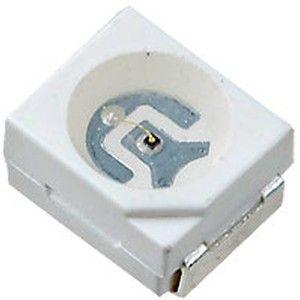

Kingbright KA-3528QBS-D SMD LED Blue PLCC2 150mcd 120° 20mA 3.3V
Technical Details
| Case/Package | PLCC |
| China RoHS | Compliant |
| Color | Blue |
| Dominant Wavelength | 465nm |
| Forward Current | 30mA |
| Forward Voltage | 4V |
| Height | 1.8mm |
| Length | 2.8mm |
| Lens Color | Clear |
| Lens Style | Round |
| Lifecycle Status | Production |
| Luminous Intensity | 150mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Wavelength | 468nm |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Round |
| Terminal Pitch | 3.1mm |
| Viewing Angle | 120° |
| Wavelength | 465nm |
| Width | 3.5mm |
