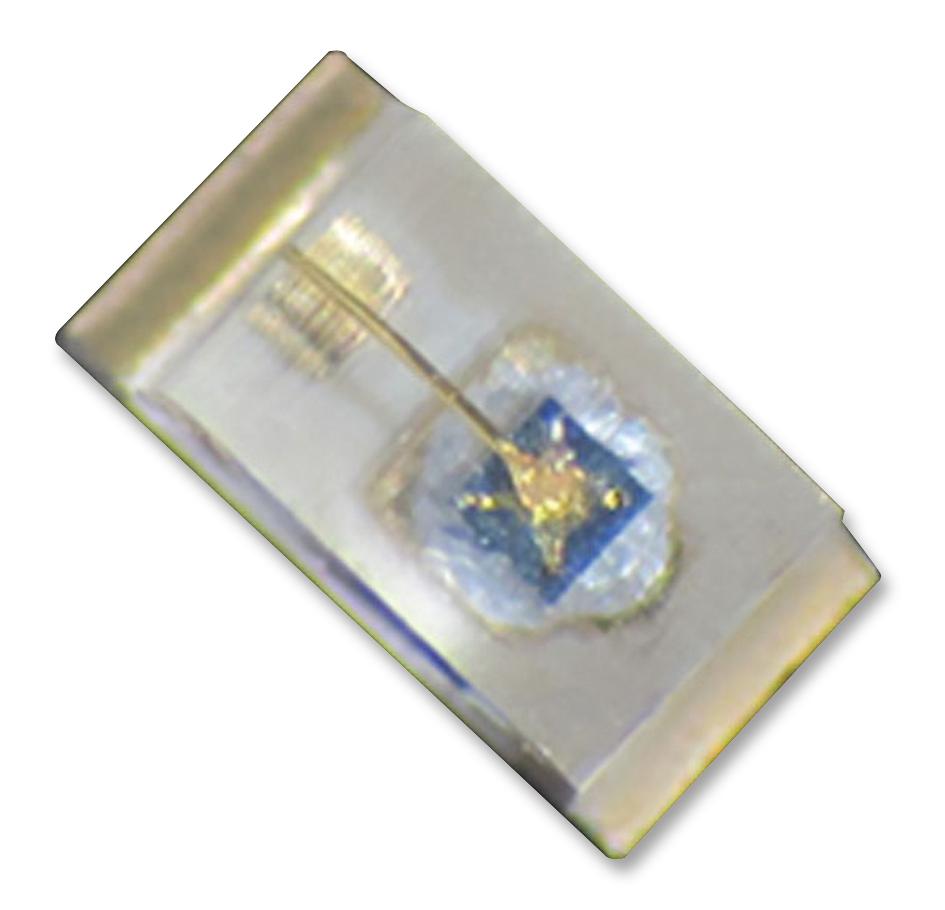

KPHHS-1005QBC-D-V - Kingbright
LED, 0402, BLUE; Bulb Size: -; LED Colour: Bleu; Luminous Intensity: 100mcd; Viewin
Technical Details
| Case/Package | 1005 |
| China RoHS | Compliant |
| Color | Blue |
| Country of Origin | Mainland China |
| Dominant Wavelength | 465nm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Current | 30mA |
| Forward Voltage | 4V |
| Height | 500µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2010-01-07 |
| Length | 500µm |
| Lens Color | Clear |
| Lens Style | Rectangular |
| Lifecycle Status | Production |
| Luminous Intensity | 100mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Wavelength | 468nm |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 1.1mm |
| Viewing Angle | 120° |
| Wavelength | 465nm |
| Width | 1mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
CPC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Kingbright | Production | ||
| Kingbright | Production | ||
| Bivar | Production | ||
| Lumex | Production | ||
| Kingbright | Production | ||
| Kingbright | Production | ||
| Kingbright | Production | ||
| Kingbright | Production | ||
| Kingbright | Production | ||
| Kingbright | Production |
