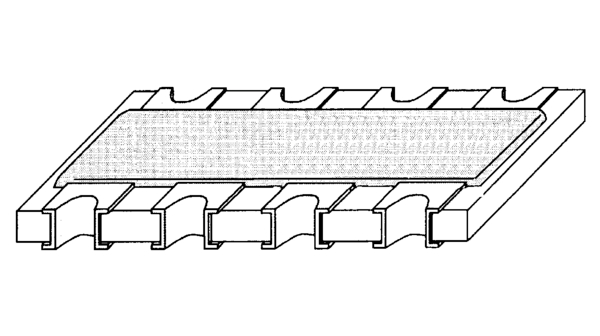

CN1J4KTTD183J - KOA Speer
Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.063W, 18000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface...
Technical Details
| China RoHS | Non-Compliant |
| Height | 500µm |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Power Dissipation | 63mW |
| REACH SVHC | Yes |
| Resistance | 18kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| ROHM | Obsolete | ||
| Panasonic | Production | ||
| ROHM | Obsolete | ||
| ROHM | Obsolete | ||
| KOA Speer | Obsolete | ||
| CTS Components | Obsolete | ||
| BI Technologies | Production | ||
| Stackpole Electronics | Obsolete | ||
| Panasonic | Production | ||
| BI Technologies | Production |
