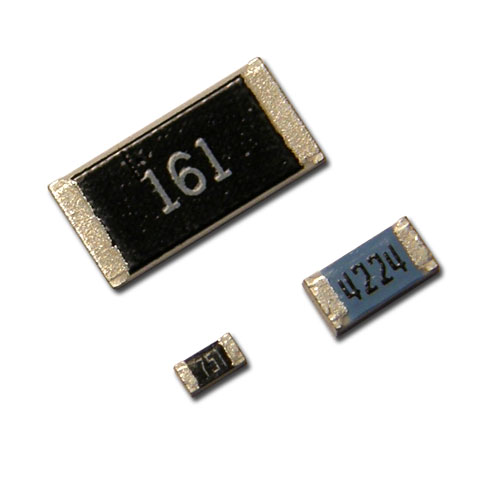

RK73B2HTTE513J - KOA Speer
RK73B FIXED RESISTOR 2010 (5025Metric) Chip Resistor ±5% ±200ppm/C 51kOhm 0.75W 3/4W
Technical Details
| Case/Package | 2010 |
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| China RoHS | Non-Compliant |
| Composition | Thick Film |
| Country of Origin | Japan, Mainland China, Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.30 |
| Introduction Date | 1995-02-01 |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Power Dissipation | 750mW |
| Power Rating | 750mW |
| REACH SVHC | Yes |
| Resistance | 51kΩ |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| Voltage Rating (DC) | 200V |
| Width | 2.5mm |
| Working Voltage | 200V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
