TACR226M006XTA - KYOCERA AVX
Cap Tant Solid 22uF 6.3V R CASE 20% (2 X 1.35 X 1.35mm) SMD 2012-15 5 Ohm 125°C Plastic T/R
Technical Details
| Capacitance | 22µF |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Depth | 1.35mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 5Ω |
| Features | General Purpose |
| Height | 1.35mm |
| Height - Seated (Max) | 1.4986mm |
| Lead Free | Lead Free |
| Leakage Current | 1.4µA |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Polarity | Polar |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Ripple Current | 38mA |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| Voltage Rating (DC) | 6.3V |
| Width | 1.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

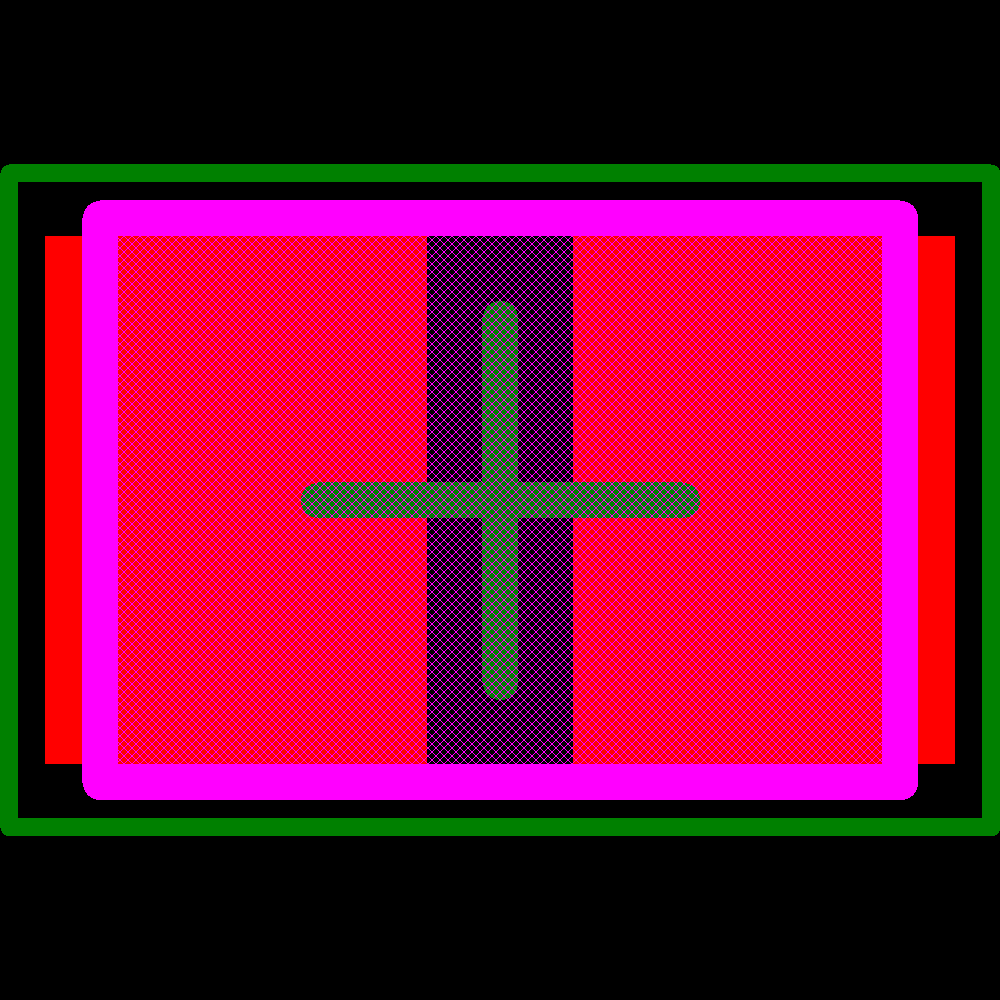

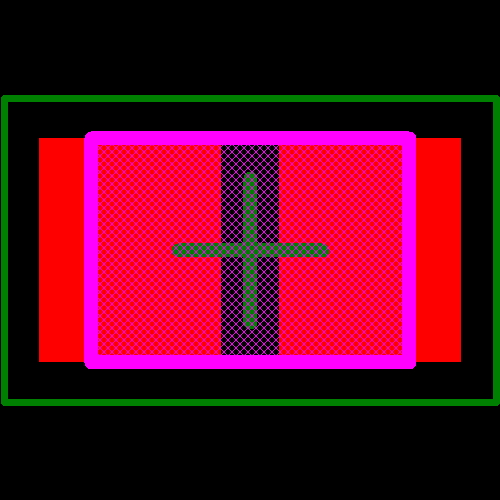

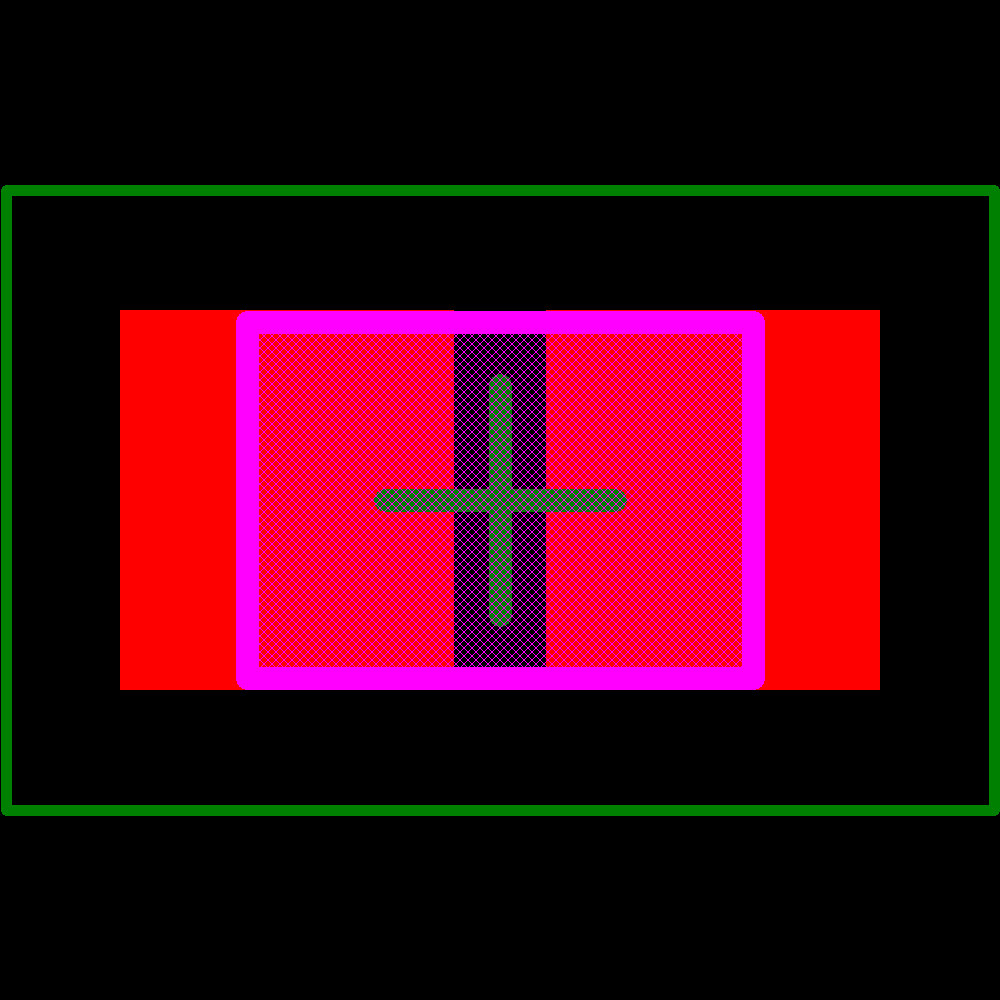

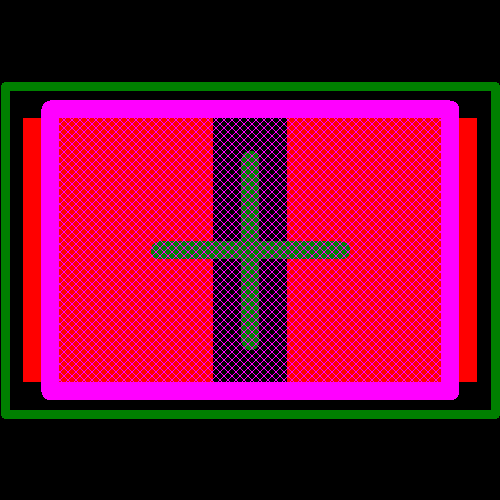

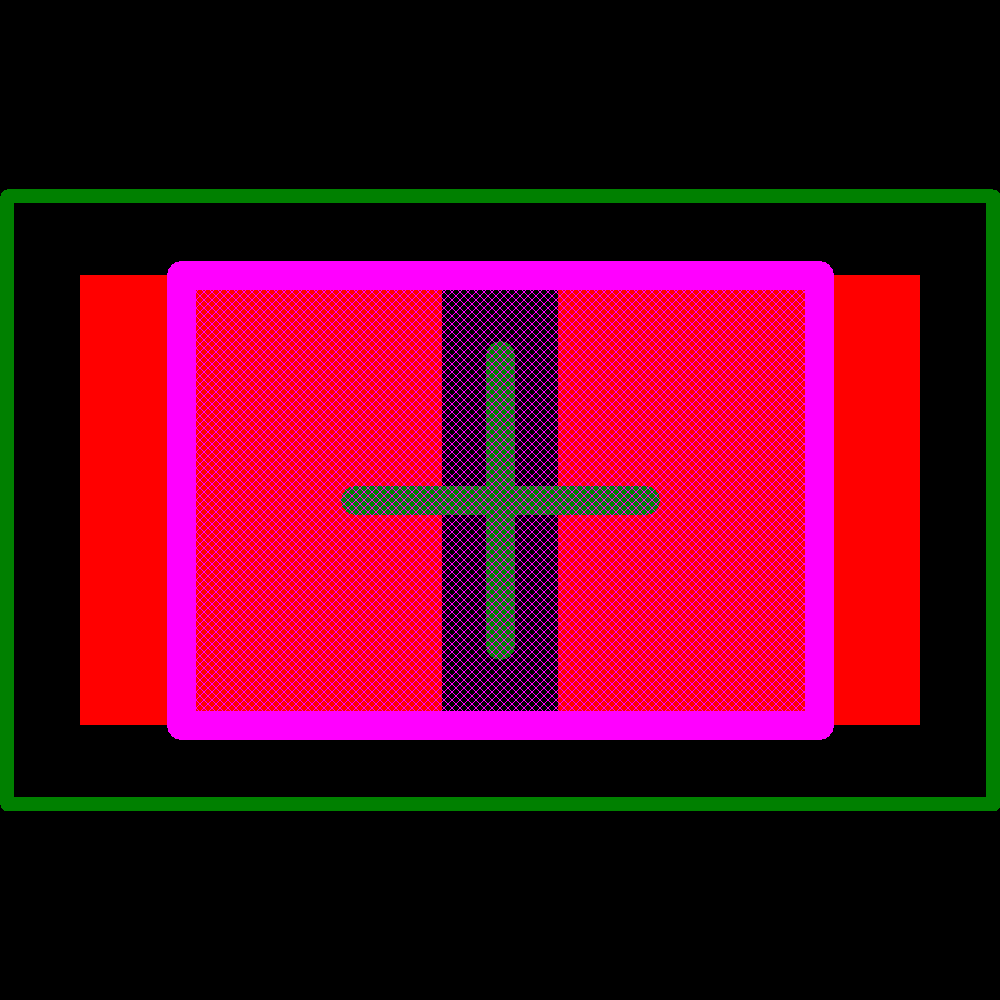

Images
