TACU105M016XTA - KYOCERA AVX
Cap Tant Solid 1uF 16V U CASE 20% (2 X 1.35 X 0.6mm) Pad SMD 2012-06 5 Ohm 125C Medical T/R
Technical Details
| Capacitance | 1µF |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Depth | 1.35mm |
| Dissipation Factor | 8% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESR (Equivalent Series Resistance) | 5Ω |
| Features | General Purpose |
| Height | 600µm |
| Height - Seated (Max) | 609.6µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.21.00.50 |
| Introduction Date | 2003-03-17 |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Cut Tape |
| Polarity | Polar |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Ripple Current | 33mA |
| RoHS | Compliant |
| Schedule B | 8532210050 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (DC) | 16V |
| Width | 1.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

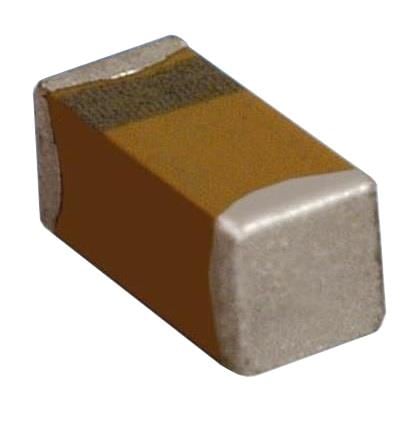

Images
